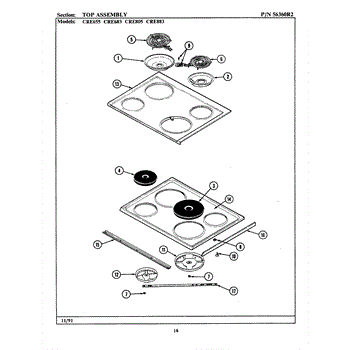

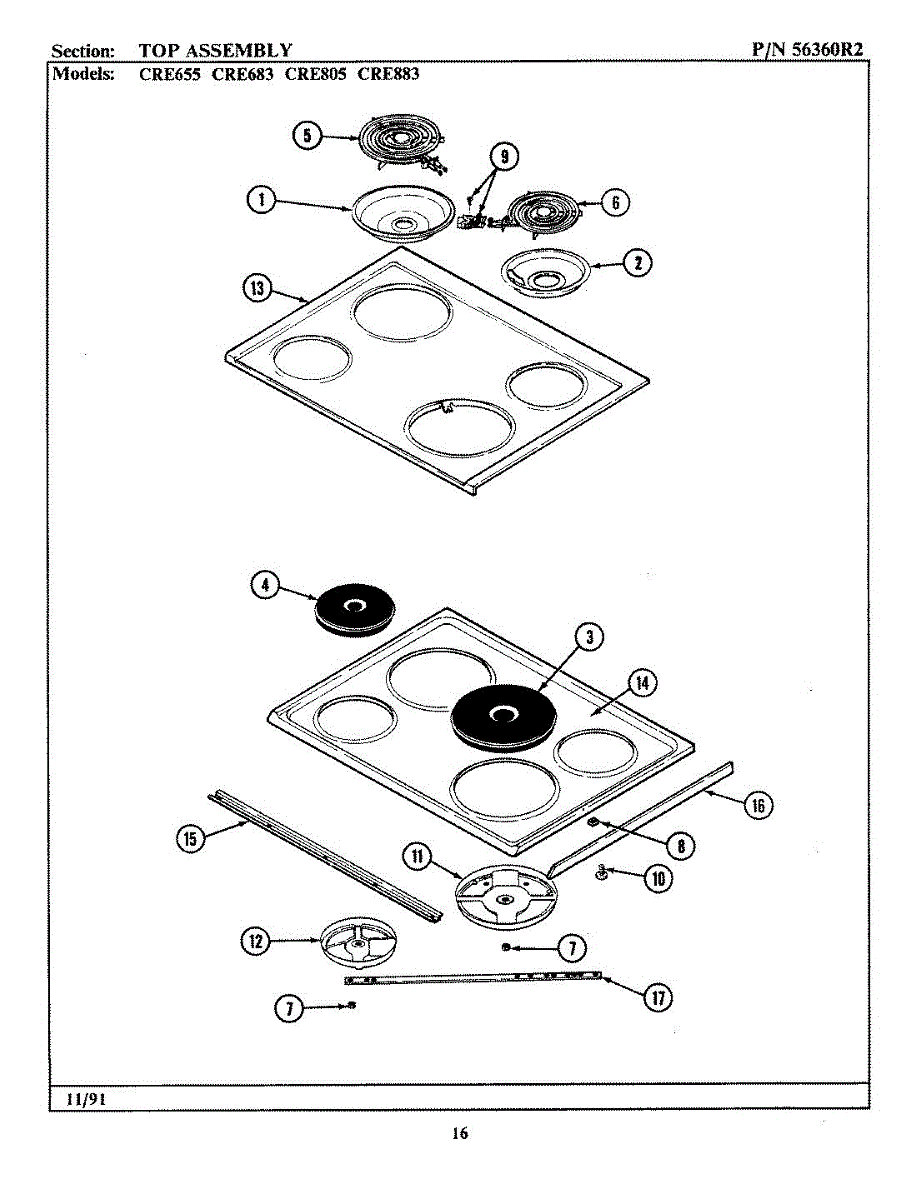

Parts for Maytag CRE883: 05 - Top Assembly Parts

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

This surface element supplies heat to an electric range or cooktop burner. When it fails, the burner may not heat or may heat inconsistently. Replacing the element restores steady, reliable cooking performance.

• Converts electrical energy into heat for the cooking zone
• Works with the surface control (infinite switch) to regulate temperature
• Common symptoms: burner won't heat, intermittent or uneven heating, visible breaks/blistering, burnt/melted terminals
• A failed element will not glow or reach set temperature when energized

• Disconnect power at the breaker before servicing and allow the cooktop to cool completely
• If your model uses a plug-in coil style: remove the drip pan, pull the element straight out of the receptacle, and inspect/replace a heat-damaged receptacle as needed
• If your model uses an under-glass radiant style: lift the cooktop, transfer any clips/limiters from the old element, and route wires exactly as original
• After reassembly, test the burner at a low setting to ensure proper operation

This part is no longer available.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This part has been discontinued by the manufacturer and is no longer available.
