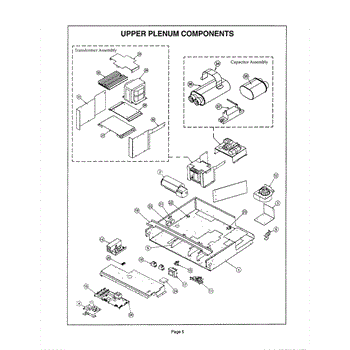

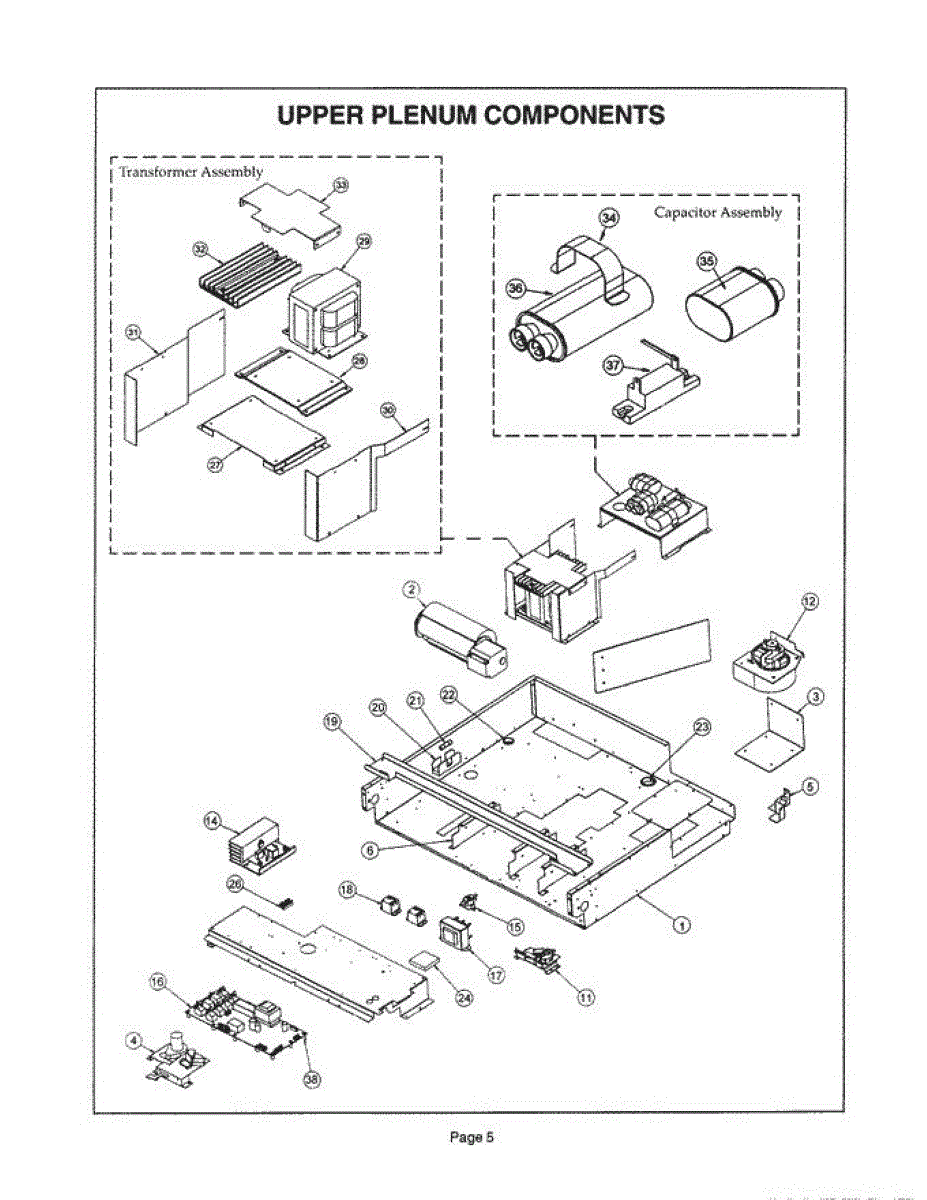

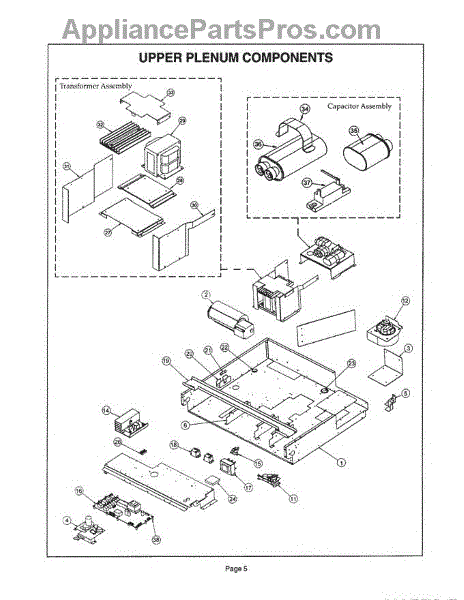

Parts for Thermador CJ302US: 05 - Upper Plenum Parts

This mounting bracket secures appliance components in place to restore proper alignment and operation. It replaces a worn or damaged bracket to help reduce rattling, misalignment, or loose fittings in the affected assembly. What it does:

• Provides a stable anchor point for internal panels or assemblies
• Restores correct positioning to reduce noise and vibration caused by a loose bracket
• Prevents further wear on adjoining parts by securing connections
• Compatible with the OEM mounting location to maintain factory fit and function

• Inspect surrounding fasteners and mounting points; replace any stripped screws or damaged clips
• Use appropriate hand tools; avoid overtightening to prevent strip-out or deformation
• Disconnect power to the appliance before accessing internal components

This Thermal Fuse is an OEM part for Bosch Wall Ovens. It acts as a safety mechanism, designed to interrupt the electrical connection if the oven's temperature exceeds the safe limit.

What Causes a Bad Thermal Fuse:
Overheating due to issues like a malfunctioning thermostat or restricted airflow can cause the thermal fuse to blow. This interruption prevents the oven from operating at dangerously high temperatures, reducing the risk of fire.

Symptoms of a Bad Thermal Fuse:

• Oven fails to heat up
• No response or display on the control panel
• The oven doesn't maintain the set temperature

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This transformer provides the low-voltage power supply required by the appliance control system, enabling proper operation of the control board and related low-voltage circuits. Replaces a failed or noisy transformer to restore reliable control power. What it does:

• Steps down mains voltage to the appliance's low-voltage control circuit for the control board and relays
• Helps restore control functions when a failed transformer causes no power, intermittent control operation, or unresponsive electronics
• Prevents control-board brownouts by providing consistent low-voltage feed (when the transformer itself is the issue)
• Used wherever a dedicated appliance control transformer is required by the appliance's electrical system

• One replacement transformer

• Always disconnect power to the appliance before accessing electrical components
• Verify wiring locations and terminal IDs before removing the old transformer; label wires if needed
• Transfer mounting hardware and brackets from the old part unless new hardware is explicitly included

This spacer positions and supports internal components to maintain correct alignment and clearance. It helps keep parts stable and reduces wear for reliable appliance operation. What it does

• Creates a consistent gap or offset between parts to ensure proper fit and movement.
• Helps prevent rubbing or binding that can cause noise or premature wear.
• Stabilizes panels and assemblies to reduce vibration and rattling.
• Supports correct alignment during reassembly after maintenance or part replacement.

• One spacer as shown.

• Disconnect power (and water if applicable) before accessing internal components.
• Inspect surrounding fasteners and mating surfaces; replace any damaged hardware.
• Press or fasten spacer into position per service instructions; do not force or alter the part.

This microwave high-voltage capacitor replaces the internal capacitor that stores and supplies the pulse of energy needed for the magnetron to generate microwaves. Restores proper HV circuit operation when the capacitor is faulty. What it does:

• Stores and releases high-voltage energy used by the microwave's magnetron
• Commonly fails after electrical stress, age, or arcing
• Symptoms of a failing capacitor: microwave not heating, intermittent operation, humming or arcing noises, or blown fuses
• Works with the high-voltage circuitry—do not use as a general-purpose capacitor

• Disconnect power and unplug the appliance before any service.
• Capacitors can retain dangerous voltage even when unplugged—discharge safely using an insulated discharge tool.
• Follow the appliance service manual for correct removal and wiring; replace with the exact OEM part.
