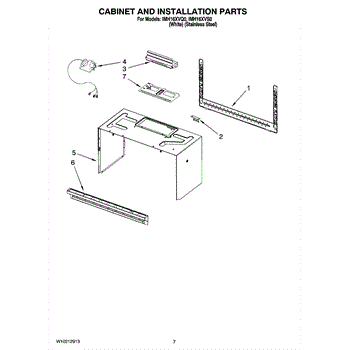

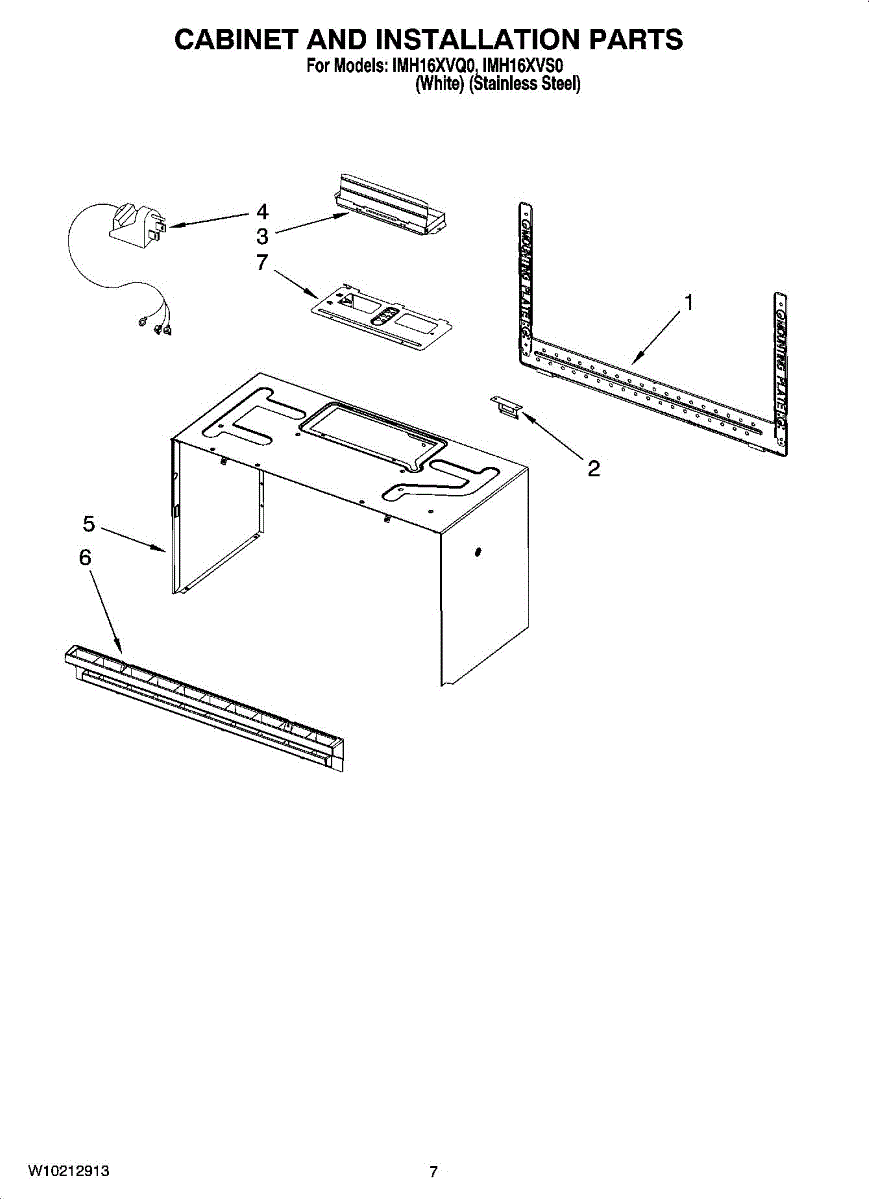

Parts for Whirlpool IMH16XVS0: 06 - Cabinet And Installation Parts

This mounting plate anchors the back of an over-the-range microwave to the wall studs, providing the primary support for installation. Replace a bent, damaged, or missing plate to restore a safe, level, and secure mount.

• Provides the rear-wall anchor point the microwave hangs on during installation
• Helps keep the unit level and securely supported under normal use
• Enables proper alignment so top mounting hardware can fasten correctly
• Typical symptoms: can't hang or align the microwave, unit sags/tilts, rear hooks won't engage, plate is bent or corroded

• Disconnect power before beginning
• Use two people to remove/hang the microwave for safety
• Locate wall studs, level the plate, and fasten per your model's installation instructions with the correct hardware
• The microwave's rear tabs fully engage the plate before final tightening

This molded wire support clip secures wiring and small harnesses to the appliance cabinet or components to prevent rubbing, pinching, or contact with moving/heat-producing parts. It helps reduce chafing and electrical wear for safer, more reliable operation. What it does:

• Holds wiring harnesses and individual wires in place to prevent contact with sharp edges, motors, or heating elements
• Minimizes wire movement and vibration that can lead to chafing or broken conductors
• Helps maintain proper routing for consistent connections and component performance
• Commonly used where a small push-fit retainer is needed to secure low-voltage or signal wires

• One wire support clip as shown

• Disconnect power to the appliance before servicing to avoid shock or injury
• Push-fit installation: align clip over wire/harness and press into the mating hole or slot until it snaps in place; clip may require slight flexing
• Inspect surrounding wiring and routing for damage; replace any frayed or exposed wires before reassembly
• If the mounting hole or panel is damaged, use the correct replacement panel or a suitable repair to ensure a secure fit

The Air Damper is an OEM part for Whirlpool microwave/range hood combos. It is a crucial component that regulates the flow of air into the microwave cavity, helping to maintain proper temperature and airflow during operation.

Symptoms of a faulty Air Damper include:

• Overheating or uneven heating of food items
• Excessive noise or rattling sounds during operation
• Error codes related to temperature or airflow issues

Causes of a bad Air Damper can include wear and tear over time, physical damage or obstruction, or issues with the damper's motor or control system.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

This replacement power cord supplies electricity to the appliance so it can run safely and reliably. It replaces a worn, frayed or damaged cord to restore steady power and reduce risk of electrical problems. What it does:

• Delivers mains power from the outlet to the appliance's internal wiring
• Replaces cords with visible damage, exposed wires, or broken plug ends
• Stops intermittent power or complete loss of power caused by a damaged cord
• Helps prevent arcing and poor connections when original cord has failed

• Always disconnect power at the wall or breaker before inspecting or replacing the cord
• Secure the cord strain relief and ensure wire connections are tight and correctly routed

This cabinet wrapper replaces damaged or worn exterior cabinet trim to restore the appliance's finished appearance and protect the outer cabinet edge. It's a direct-fit cosmetic panel used where the cabinet surface is dented, scratched, or missing trim. What it does:

• Covers and protects the appliance cabinet edge or corner from further damage and moisture exposure
• Restores a smooth, finished exterior appearance after dents, scrapes, or torn trim
• Helps close visible gaps between panels for a cleaner look
• Keeps cabinet surfaces ready for normal cleaning and maintenance

• Disconnect power and water before servicing to reduce risk of injury
• Use appropriate hand tools and handle edges carefully to avoid cuts or damaging adjacent trim
• Replace any damaged clips or screws with OEM-specified hardware

For mounting also consider WPW10269225 mounting plate

This OEM microwave top mounting screw is for mounting microwave ovens to upper cabinets. Replace if you've lost one of the original mounting screws or they've become damaged. This gold screw made of heavy-duty metal can be installed with a screwdriver and socket set. Measuring approximately 3 inches in length, this top mounting screw is sold individually.

The mounting bracket assembly requires two mounting screws. Make sure to order the number needed for your microwave oven. Remember to unplug your microwave before installing the mounting bracket assembly. Tighten the mounting screw with the screwdriver, being careful not to overtighten it. This can strip the threads on the screw.

Choose this OEM replacement part to ensure a secure and safe installation. It's designed to fit microwaves from top brands such as Whirlpool, Roper, Estate, Inglis, Maytag, Amana, and KitchenAid.
