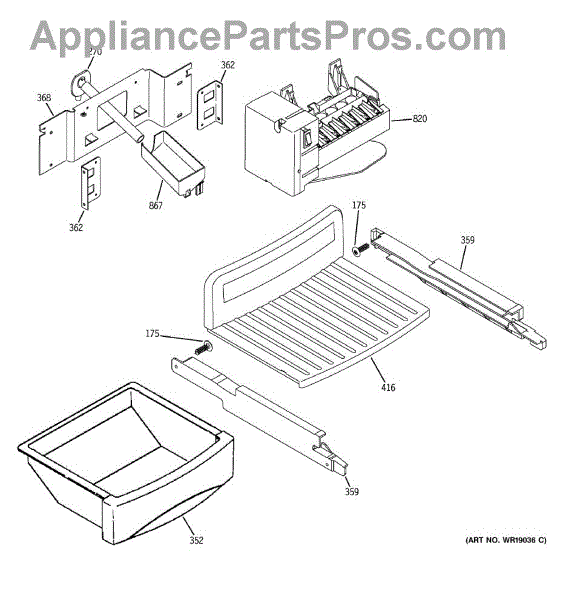

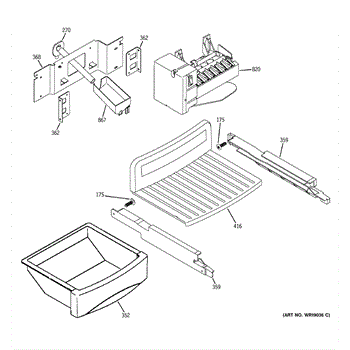

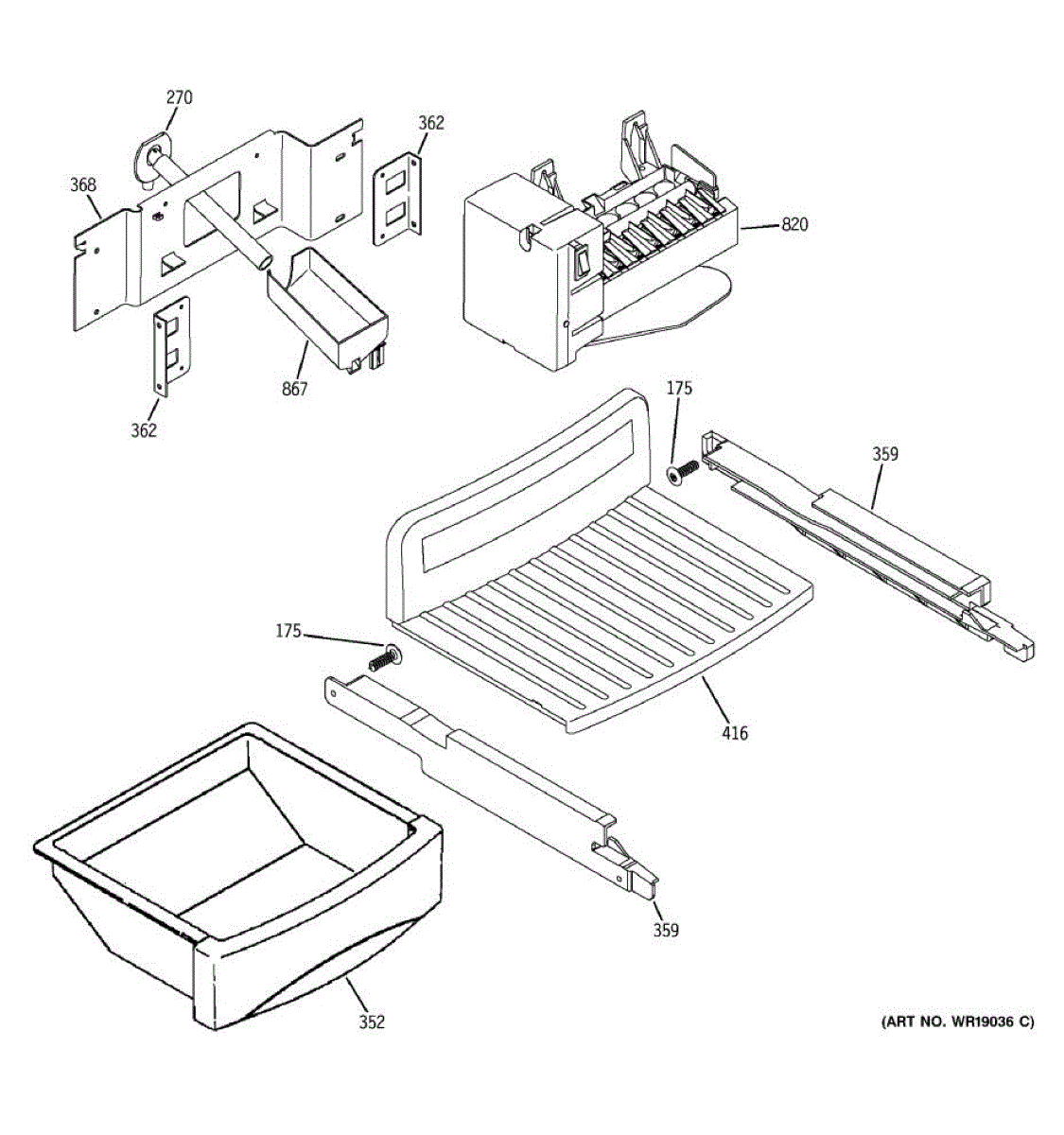

Parts for Ge HCK23LCMAFCC: 06 - Ice Maker & Dispenser Parts

Specs: 8-18 AB IHW 5/8 S

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side glide bucket replaces the refrigerator door/bin glide that holds and organizes items while sliding smoothly. Restores proper storage and secure positioning on the door rail for everyday use. What it does:

• Replaces a cracked, broken or worn right-side glide bucket so items stay contained on the door
• Restores smooth sliding action on the door rail for easy access to stored items
• Prevents items from tipping or falling when opening or closing the door
• Matches the OEM shape for proper fit and alignment with the existing rail

• One right-side glide bucket

• Disconnect power to the appliance before performing service as a safety precaution
• Remove items from the door and gently lift/slide out the old bucket per manufacturer guidance
• Inspect door rail and attachment points for damage; replace damaged clips or rails as needed
• Handle carefully to avoid snapping mounting tabs during installation

The Glide Bracket is an OEM part for GE refrigerators. This left bracket supports the refrigerator drawer, allowing it to slide in and out smoothly for easy access to stored items.

Causes of a bad glide bracket can include regular wear and tear, damage from overloading the drawer, or accidental impact that causes the bracket to crack or break.

Symptoms of a bad glide bracket include:

• Difficulty sliding the drawer in and out
• The drawer not aligning properly or coming off its tracks
• Unusual noises when opening or closing the drawer
• Visible cracks or breaks in the bracket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a 220v international model icemaker.

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.
