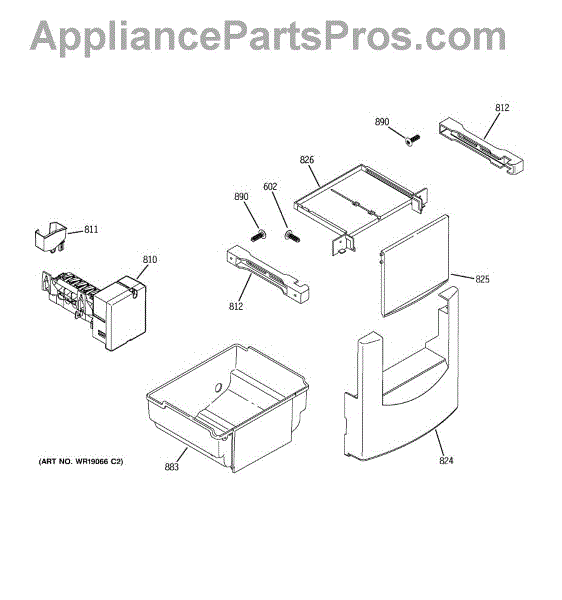

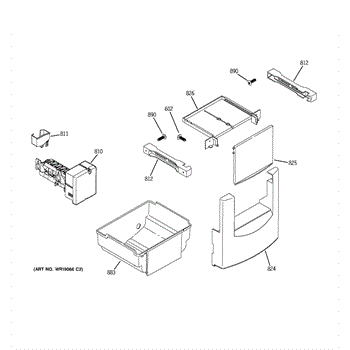

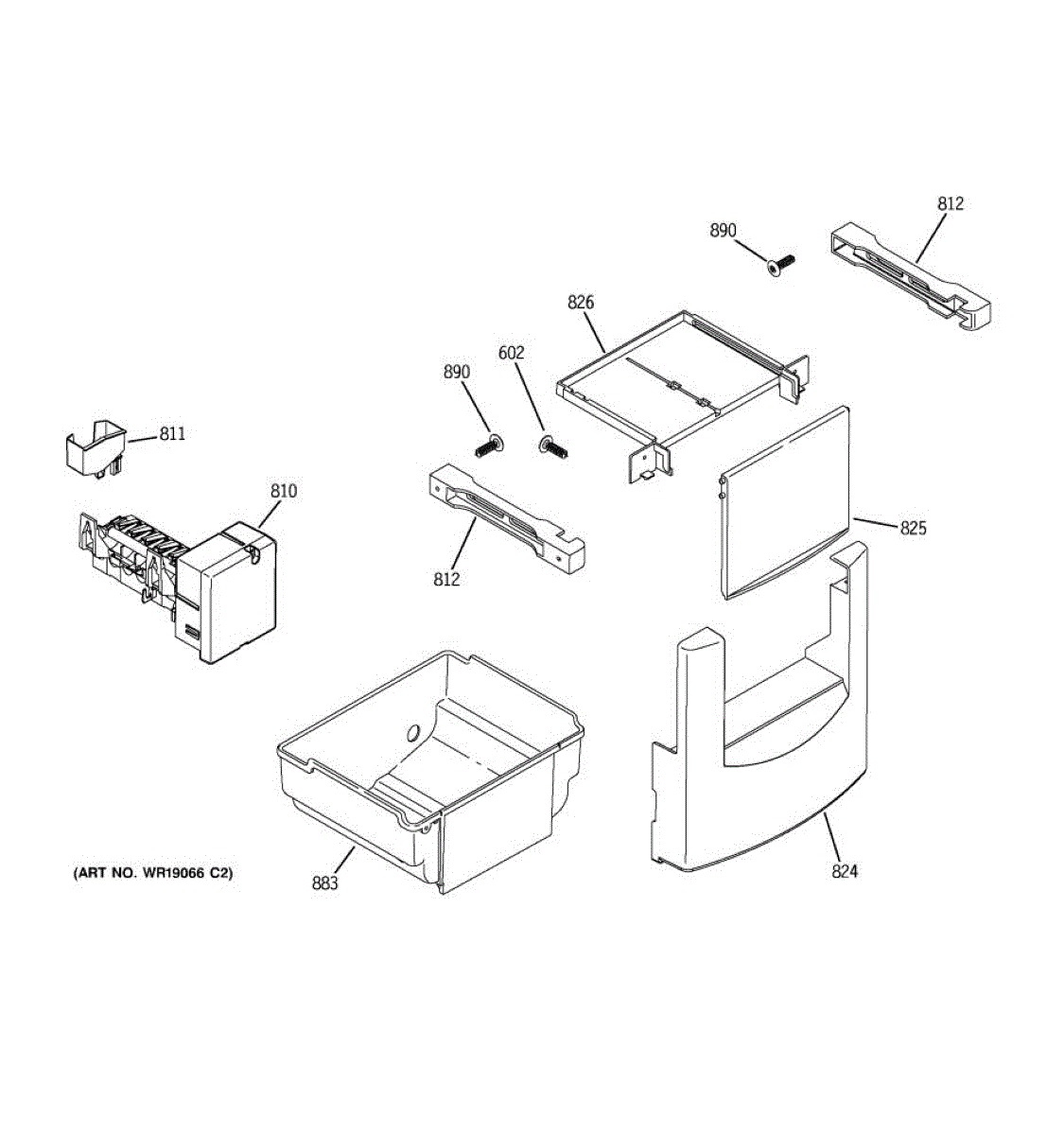

Parts for Ge ZIS360NRI: 06 - Ice Maker & Dispenser Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


A 6 x 1/2 inch pan-head Phillips screw used to fasten panels, trim, brackets and small assemblies on appliances. Replacing worn or missing screws restores secure mounting and reduces vibration or rattling. What it does:

• Fastens panels, brackets and trim where a 6 x 1/2 in. pan-head Phillips screw is required.
• Stops loose or rattling parts caused by missing, stripped or corroded screws.
• Provides the correct head profile for a Phillips driver to allow proper torque and seating.
• Used in non-structural fastening points on appliances.

• Always disconnect power and unplug the appliance before beginning repairs.
• Use the correct-size Phillips screwdriver to avoid cam-out and head damage.
• Do not over-tighten; over-torquing can strip threads or deform mating parts.
• Inspect mating threads and replace damaged components before installation.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.

This door ice bin is the removable plastic container that stores ice made by your refrigerator's icemaker. It keeps ice contained in the door for easy access and helps prevent spills inside the fresh-food compartment. What it does

• Holds and stores cubed ice produced by the icemaker so it's ready at the door
• Keeps ice from spilling into the refrigerator cavity when the door is opened
• Replaces cracked, damaged, or missing ice storage bins that cause leaks or loose ice
• Restores proper alignment with the door shelf for smooth removal and replacement

• Empty any loose ice before removing the old bin to avoid spills
• Typically installs by sliding into the door shelf track; lift slightly to remove
• Inspect door shelf guides for damage and align bin carefully when reinstalling
• Wear gloves when handling cold ice and avoid forcing the bin to prevent cracking

This replacement ice bin door track guides the dispenser door or ice bin slide so the ice chute opens and closes smoothly, helping restore proper ice dispensing and reduce jams or binding. What it does:

• Provides the sliding/tongue surface for the ice bin door to move smoothly.
• Restores proper alignment when the dispenser door sticks or drags.
• Helps stop the ice bin door from binding or catching during operation.
• Useful when worn, cracked, or damaged track edges cause noisy or uneven motion.

• Disconnect power to the refrigerator before beginning any repair.
• Inspect surrounding trim and fasteners; replace any stripped screws to ensure secure fit.
• Installation typically requires basic hand tools; handle plastic parts carefully to avoid cracking.

This is the replacement ice bucket used with the refrigerator ice dispenser to hold and feed ice to the dispenser chute. It restores proper ice storage and enables smooth dispensing through the door. What it does:

• Holds and stores ice made by the ice maker so it's available for the dispenser
• Guides ice toward the dispenser chute for reliable delivery when you press the lever
• Replaces cracked, warped, or damaged buckets that cause jams or leaks
• Helps reduce ice clumping by providing a dedicated storage container

• One ice bucket (dispenser) as pictured

• Disconnect power to the refrigerator before servicing to avoid electrical hazards
• Remove any stored ice and open the freezer door to access and slide out the old bucket
• Handle carefully to avoid chipping or cracking; re-seat and test the dispenser after installation
• If ice continues to jam, inspect the auger, dispenser actuator, and freezer alignment

Size: 8-16 x 2 inch ss.
