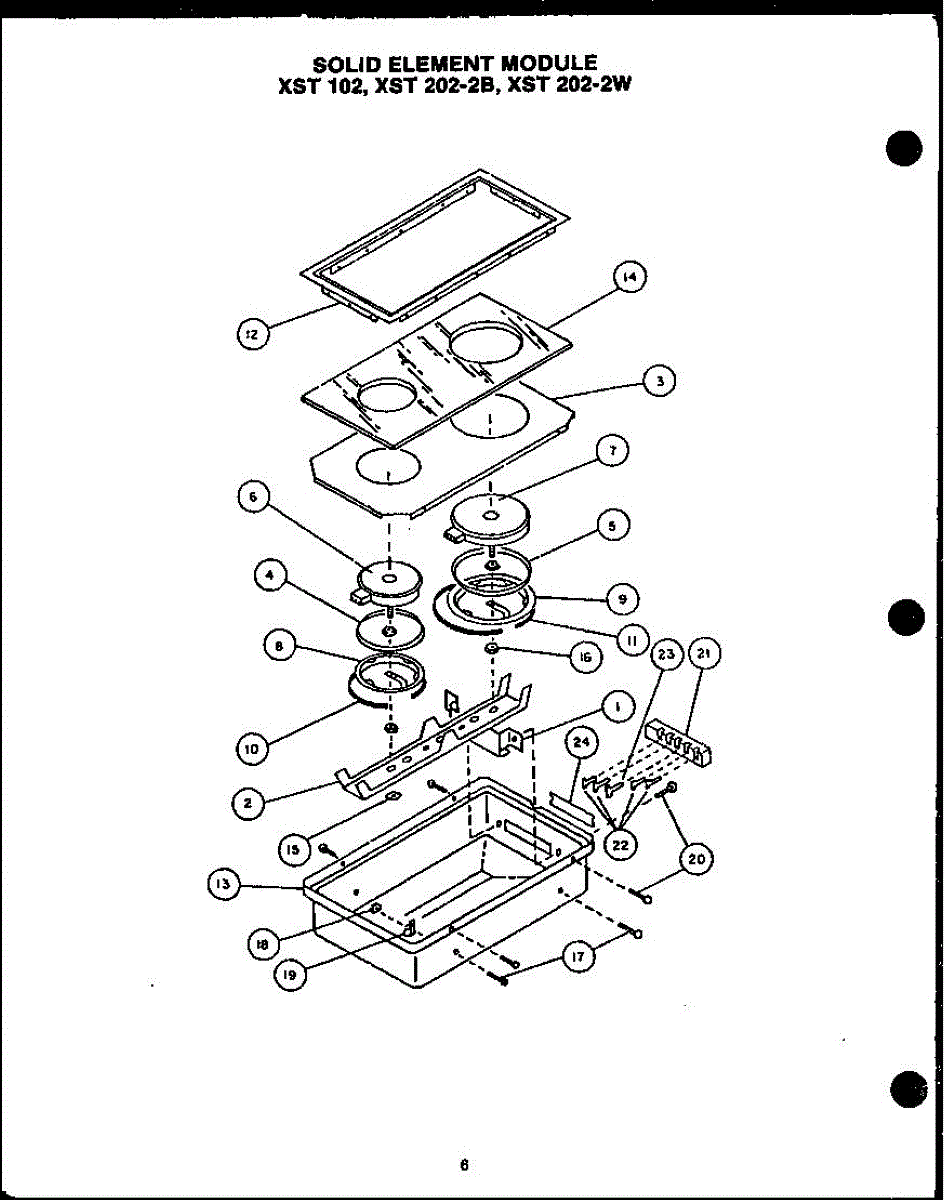

Parts for Amana FET290: 06 - Solid Element Module Parts

This part has been discontinued and is no longer available.

This surface element supplies heat to an electric range or cooktop burner. When it fails, the burner may not heat or may heat inconsistently. Replacing the element restores steady, reliable cooking performance.

• Converts electrical energy into heat for the cooking zone
• Works with the surface control (infinite switch) to regulate temperature
• Common symptoms: burner won't heat, intermittent or uneven heating, visible breaks/blistering, burnt/melted terminals
• A failed element will not glow or reach set temperature when energized

• Disconnect power at the breaker before servicing and allow the cooktop to cool completely
• If your model uses a plug-in coil style: remove the drip pan, pull the element straight out of the receptacle, and inspect/replace a heat-damaged receptacle as needed
• If your model uses an under-glass radiant style: lift the cooktop, transfer any clips/limiters from the old element, and route wires exactly as original
• After reassembly, test the burner at a low setting to ensure proper operation

This part has been discontinued by the manufacturer and is no longer available.

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.
