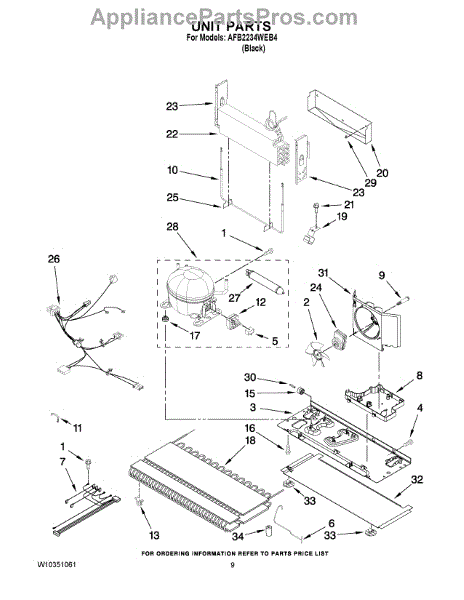

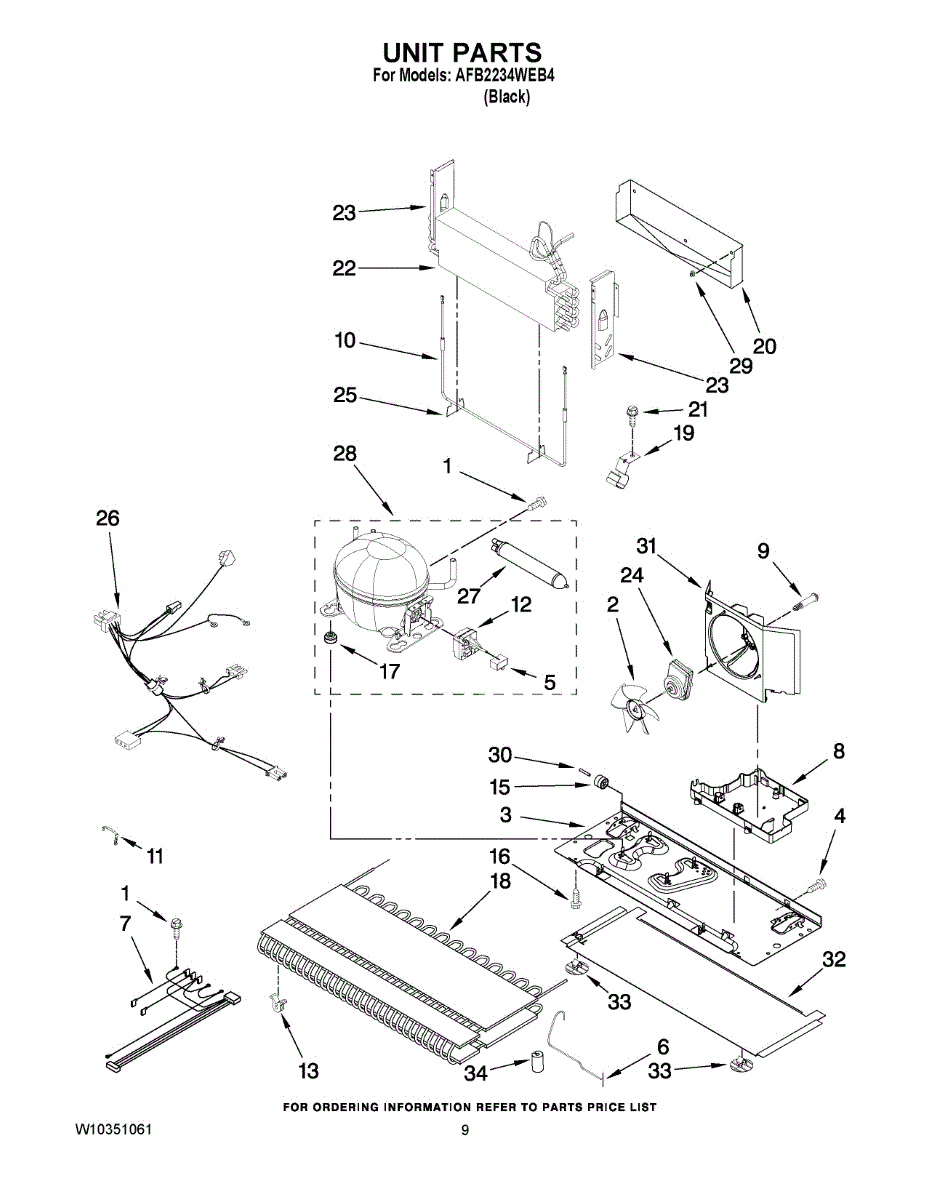

Parts for Maytag AFB2234WEB4: 06 - Unit Parts

Refrigerator making loud noise or not cooling? A cracked or broken condenser fan blade disrupts airflow. Easy 10-minute DIY fix with our video guide.

Support plate for refrigerators. Mounts inside cabinet to secure components. Replace if cracked, bent, or missing to restore proper structural support.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement water tube routes water between internal components to restore proper water flow and prevent leaks. It's a direct-fit service part used in compatible Whirlpool appliances to replace damaged or cracked tubing. What it does:

• Channels water from the supply or dispenser to internal fill or valve assemblies
• Prevents leaks and water pooling caused by cracked, split, or collapsed tubing
• Helps restore normal dispenser, ice maker, or fill operation when original tubing is damaged
• Compatible where the OEM tube is specified; matches the original shape and openings for a proper seal

• One replacement water tube

• Turn off power to the appliance and shut off the water supply before beginning work
• Verify tube orientation and seating at both connection points; use new clamps if the old ones are corroded
• Inspect nearby fittings and valves for damage when replacing the tube

The Defrost Thermostat and Wiring Harness is an OEM part for Whirlpool refrigerators. This part ensures that the refrigerator's evaporator coils do not become overly frosty, thereby maintaining optimal air flow and cooling efficiency throughout the unit.

Causes for issues with the defrost thermostat and wiring harness often include electrical failures, such as short circuits or broken wires, wear and tear on the thermostat, or a malfunction that prevents it from accurately sensing temperature changes.

Symptoms of a malfunctioning Defrost Thermostat and Wiring Harness include:

• Excessive frost buildup on the evaporator coils
• The refrigerator or freezer compartment becoming too warm
• The refrigerator running continuously without cycling off
• Water leaking inside the refrigerator due to ice melting and not draining properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Fix water leaking under your refrigerator with a new drip pan. Catches defrost water to prevent puddles and floor damage. Moderate DIY repair.

Replaces stripped, missing, or damaged mounting screws that secure panels, brackets, and components in your refrigerator. Restores proper assembly.

Freezer icing up or fridge too warm? The defrost heater melts frost from evaporator coils to restore cooling. Typical DIY repair takes 20 minutes-2.5 hours.

Compressor won't start or runs intermittently? This start relay and overload helps the motor get up to speed so your refrigerator runs reliably again.

Fix a refrigerator that won't cool or clicks but won't start. This compressor start relay activates your cooling system. DIY repair in under 30 minutes.

Refrigerator making rattling or vibrating noises? This condenser grommet cushions the condenser assembly to reduce noise and prevent mounting wear.

Rear roller that helps move your refrigerator smoothly. Replace if broken, cracked, or wobbling to restore easy mobility. Confirm fit by model number.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

Fix a refrigerator that's not cooling properly with this condenser coil assembly. Restores efficient heat transfer and stable internal temperatures.

Secures hoses to fittings on water and vent lines to prevent leaks. Replace if loose, cracked, or connection drips. Confirm fit with your model number.

Drip tray for refrigerators. Installs beneath the evaporator coils to collect defrost water. Replace if cracked, broken, or missing to prevent leaks.

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

Refrigerator not cooling or freezing properly? The evaporator coil absorbs heat to cool your fridge. Moderate DIY repair requires defrosting system first.

Fix a noisy or non-cooling refrigerator with this condenser fan motor. Solves overheating compressor issues. DIY-friendly repair with video guide.

Fix refrigerator controls not responding or ice maker power issues with this control wire harness. Restores electrical connections between components.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Refrigerator not cooling or freezer icing up? A faulty compressor may be the cause. This part is the heart of your cooling system, requiring expertise.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

Replacement roller axle support shaft for refrigerators. Installs to support rotating assemblies. Replace when worn, damaged, or causing wobble.

Small mounting clip that secures panels and trim inside your refrigerator. Replace when broken, cracked, or missing to restore proper fit and stability.

Seals openings where hoses or wires pass through cabinet walls. Replace if cracked, torn, or missing to prevent chafing and vibration noise. Verify fit.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
