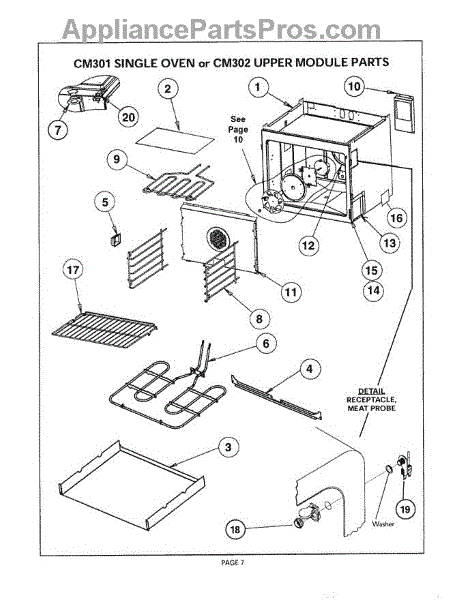

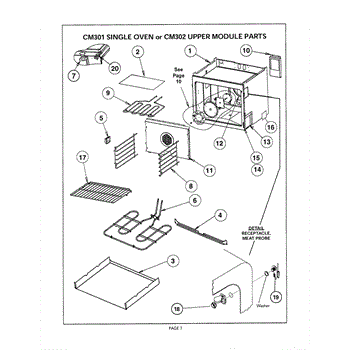

Parts for Thermador CM302S: 06 - Upper Oven Module Parts

This part has been discontinued by the manufacturer and is no longer available.

A replacement glass turntable plate that restores a microwave's rotating cooking surface for even heating and stable cookware support. Fits on the drive roller to provide a flat, heat-safe surface for daily microwave use. What it does:

• Replaces a cracked, chipped or missing glass turntable so food heats more evenly
• Provides a stable surface for plates and bowls to rotate during cooking
• Works with the turntable roller and coupling to restore proper rotation
• Prevents wobble and scraping that can occur with damaged glass

• Unplug the microwave or disconnect power before installing
• Handle the glass carefully to avoid cuts; do not install if chipped or cracked
• Align plate on the center drive coupling/roller support; it seats and rotates freely
• Use only the exact OEM plate size and part number to ensure proper fit

This tubular bake element is the lower heating element for electric ovens, restoring oven bake heat and even cooking performance. It replaces a damaged or non-heating element to get your oven back to regular baking temperature. What it does:

• Produces the primary radiant heat from the bottom of the oven for baking and roasting
• Common symptom: oven won't reach or hold set bake temperature
• Common symptom: visible breaks, blistering, or arcing on the element surface
• Common symptom: uneven baking or loss of heat from the bottom of the cavity

• One bake (lower) element

• Disconnect power at the breaker or unplug the range before any work
• Access typically requires removing the oven floor or lower access panel and unscrewing the element terminals
• Inspect wiring and terminal connections for heat damage; replace or repair as needed

This broil element heats the oven's top heating element to brown and finish foods. It restores broiling performance when the oven no longer browns or the element doesn't glow hot. What it does:

• Provides the upper heating source for broiling and browning
• Replaces a damaged, burned-through, or non-heating broil element
• Commonly used when food no longer browns or the element fails to heat
• Works with ovens that use a separate upper heating element for broiling

• Broil element (1)

• Disconnect power to the appliance before starting any repair
• Handle with care to avoid bending the element or damaging terminal connections
• Verify proper fit and terminal alignment for your oven model before finalizing installation

This welded 30-inch convection baffle directs oven airflow for even heat distribution and stable convection performance. It restores correct air circulation so baked goods roast and bake more evenly and the fan runs quietly. What it does:

• Channels convection fan airflow across the oven cavity for consistent temperatures
• Helps prevent hot/cold spots that cause uneven baking or roasting
• Keeps the convection fan from contacting internal components and reduces vibration/rattling
• Restores designed airflow after damage, bending, or corrosion

• Disconnect power to the appliance before starting any work; follow lockout/tagout procedures if available
• Use gloves to avoid sharp sheet-metal edges and protect finishes
• Removal may require accessing the oven cavity or back panel and loosening fasteners; support any panels while removing/replacing the baffle
• Check alignment and fastener torque so the baffle does not contact the convection fan during operation

This convection heating element replaces the oven's rear/top convection heater to restore even heat circulation and consistent baking results. Designed to match OEM fit and function for compatible Bosch ranges and ovens. What it does:

• Heats oven cavity to enable convection cooking and improved heat distribution
• Restores proper airflow and browning when the original convection element is burnt out or intermittent
• Helps resolve symptoms like uneven cooking, longer cook times, or visible element damage
• Works with the oven's convection fan to maintain set temperatures during bake/convection cycles

• Disconnect power at the breaker before attempting service to avoid shock hazard
• Handle element carefully; avoid bending terminals or damaging insulation
• Basic disassembly of the oven back/upper panel may be required

This left counter support bracket secures the appliance to the countertop, keeping the unit stable and aligned during use. It's a direct-fit replacement that restores proper mounting and reduces movement. What it does:

• Anchors the appliance to the countertop to prevent shifting or rocking
• Restores correct alignment between cabinet/counter and appliance front
• Helps stop rattling or vibration caused by a loose or missing bracket
• Compatible where a left-side counter mounting bracket is required

• Turn off power to the appliance before beginning any work and follow all safety precautions
• Remove the toe panel or access cover to reach the mounting area as needed
• Align bracket, fasten with the original screws or OEM-recommended hardware; do not overtighten
• Check appliance alignment and stability after installation; adjust as required

This socket is an electrical connector used to join wiring or plug-in components, restoring a secure connection for reliable appliance operation. It replaces a worn or damaged socket to help prevent intermittent power or component failure. What it does:

• Provides a secure electrical connection between wiring and the appliance component
• Restores proper contact when a loose, corroded, or broken socket causes intermittent operation
• Helps prevent arcing or poor connections that can lead to component failure
• Used where a plug-in or push-fit electrical connection is required

• One socket

• Disconnect power to the appliance before inspecting or replacing the socket
• Replace only with the exact socket type specified for your appliance
