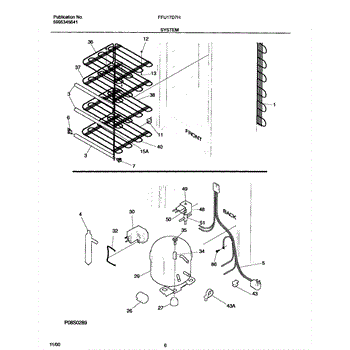

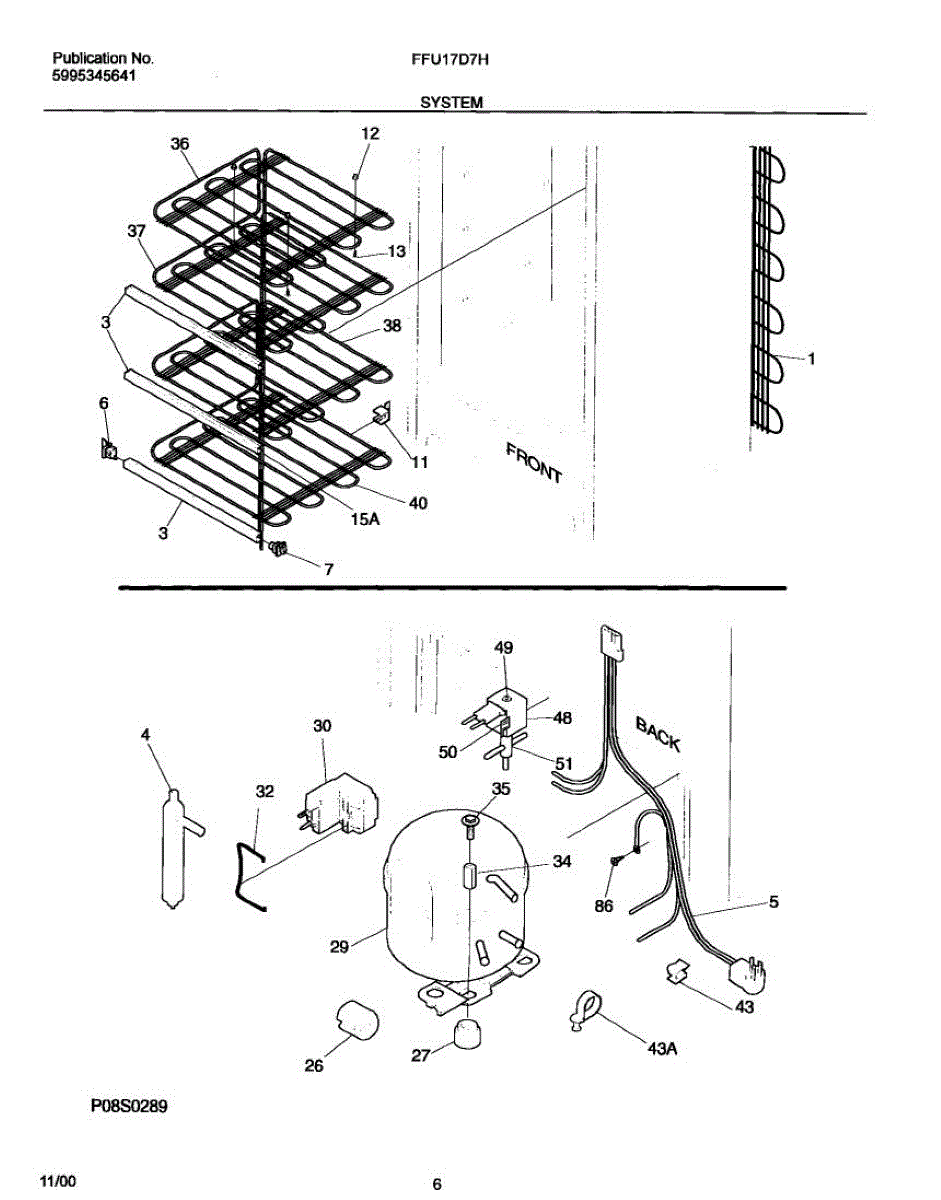

Parts for Frigidaire FFU17D7HW2: 07 - System Parts

Includes service line.

This main wiring harness extension routes power and signals between the refrigerator's control module and other components to restore electrical connections and proper operation. It replaces a damaged or corroded connector lead to help re-establish reliable circuitry. What it does:

• Extends the main control harness to connect control boards, sensors, and components
• Replaces frayed, pinched, or broken wiring that can cause intermittent power or communication failures
• Helps resolve issues like non-responsive controls, intermittent cooling, or components not receiving power
• Matches OEM connector types and wire colors for straightforward reconnection

• One main wiring harness extension as shown

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Verify connector orientation and gently seat each plug until it clicks; avoid forcing mismatched connectors
• Inspect mating connectors and terminals for corrosion or damage; clean or replace as needed

Replacement shelf support bracket for freezers. Secures and stabilizes freezer shelves. Replace if broken, cracked, or missing due to heavy loads or age.

The Support-Shelf is an OEM part for Frigidaire freezers, designed to provide sturdy and reliable support for the freezer shelves. This part ensures that the shelves remain level and secure under the weight of stored items.

Causes of a bad Support-Shelf can range from overloading shelves beyond their weight capacity, to normal wear and tear from years of use.

Symptoms of a bad Support-Shelf include:

• Shelves sagging or not sitting level, which can lead to inefficient storage and the risk of items falling.
• Cracks or breaks in the support, compromising the stability of the entire shelving system.
• Difficulty installing or removing shelves, indicating that the supports may be damaged or misshapen.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replacement spacer for the front of the top grid in your freezer. Needed when original spacer is cracked, broken, or missing to properly support shelf.

Mounting screw that secures the top grid assembly inside your refrigerator. Replace if the original screw is stripped, missing, or damaged during maintenance.

Plastic spacer that maintains proper gap between freezer door and cabinet. Replace if cracked, broken, or missing to restore correct door alignment.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

A replacement compressor kit designed to restore the refrigeration system's ability to cool by replacing failed compressor components. Use this kit when the compressor assembly needs service or replacement. What it does:

• Replaces failed compressor components to help restore normal cooling performance
• Stops intermittent or complete loss of cooling often caused by compressor failure
• Helps address loud humming, grinding, or continuous running tied to compressor problems
• Supports proper refrigerant flow when installed and serviced

• Disconnect power and unplug the appliance before beginning any repairs
• Compressor and sealed-system service (evacuation, vacuum, refrigerant charging) must be performed
• Use proper handling and tools for refrigerant-containing components to avoid leaks and injury

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

Freezer not cooling or frosting excessively? The evaporator coil absorbs heat to keep your freezer cold. Moderate DIY repair with proper defrosting.

Freezer not cooling or frosting excessively? The evaporator coil absorbs heat to keep your freezer cold. Moderate DIY repair with proper defrosting.

Freezer not cooling or frosting excessively? The evaporator coil absorbs heat to keep your freezer cold. Moderate DIY repair with proper defrosting.

This retainer lead wire secures appliance wiring to keep harnesses organized and away from heat or moving parts, reducing wear and accidental disconnection. It's a simple replacement to restore proper wire routing and protection. What it does:

• Clips or holds the wiring harness in place to prevent chafing and strain
• Helps keep wires away from hot surfaces, vents, or moving components
• Reduces risk of intermittent electrical connections caused by loose wiring
• Restores factory routing after service or component replacement

• Disconnect power to the appliance before installing to avoid shock or injury
• Remove any panels necessary to access the original retainer and wiring route
• Replace like-for-like, seating the retainer securely so the harness cannot shift
• If wires show damage or insulation wear, inspect further and replace damaged wiring before reassembly
