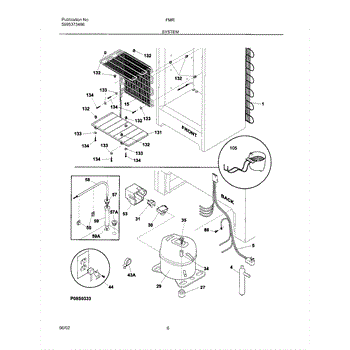

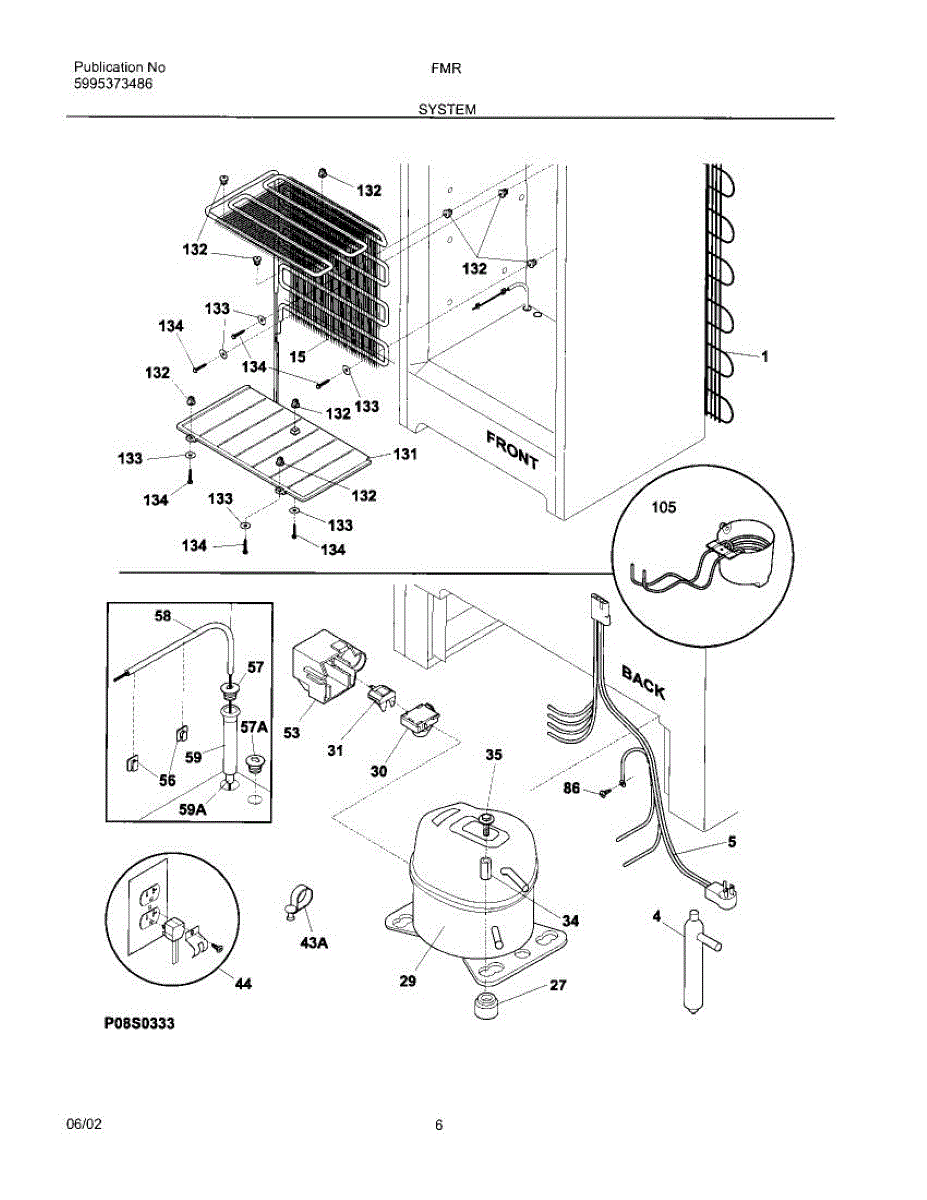

Parts for Frigidaire FMR10: 07 - System Parts

Includes service line.

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

This drain cup collects and channels defrost meltwater away from the evaporator area to the fridge drain system, helping prevent leaks and ice buildup. Fits in the evaporator/defrost tray area to guide water to the drain. What it does:

• Catches meltwater from the evaporator and funnels it toward the drain line or drain pan
• Helps prevent water pooling, leaks, and ice buildup around the evaporator
• Restores proper defrost drainage when the original cup is cracked, warped, or missing
• Simple, passive plastic part — no electrical connections

• One drain cup

• Remove power to the appliance before accessing internal panels; follow manufacturer safety guidelines
• Typically installs in the evaporator/defrost tray area; may require removing interior panels or the evaporator cover
• Verify correct orientation so water flows into the drain tube; replace any damaged drain grommets or tubes

This part has been discontinued by the manufacturer and is no longer available.

This retainer lead wire secures appliance wiring to keep harnesses organized and away from heat or moving parts, reducing wear and accidental disconnection. It's a simple replacement to restore proper wire routing and protection. What it does:

• Clips or holds the wiring harness in place to prevent chafing and strain
• Helps keep wires away from hot surfaces, vents, or moving components
• Reduces risk of intermittent electrical connections caused by loose wiring
• Restores factory routing after service or component replacement

• Disconnect power to the appliance before installing to avoid shock or injury
• Remove any panels necessary to access the original retainer and wiring route
• Replace like-for-like, seating the retainer securely so the harness cannot shift
• If wires show damage or insulation wear, inspect further and replace damaged wiring before reassembly
