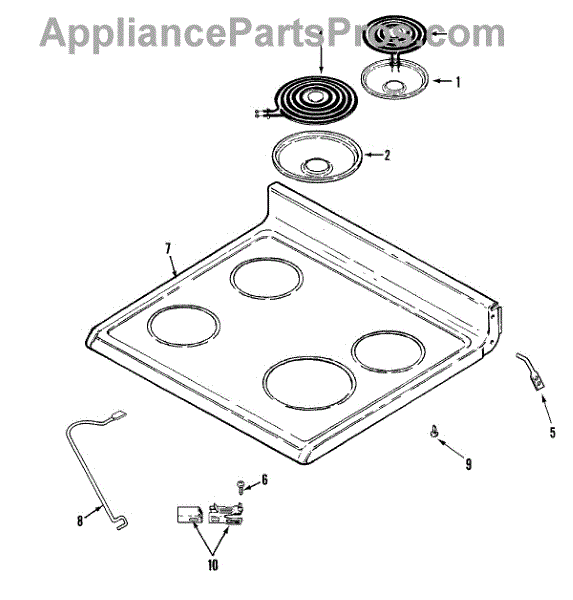

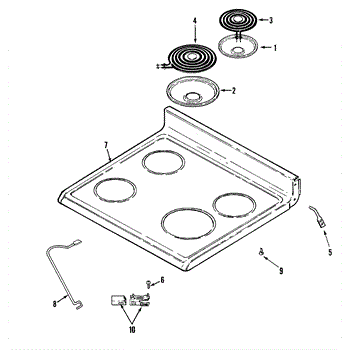

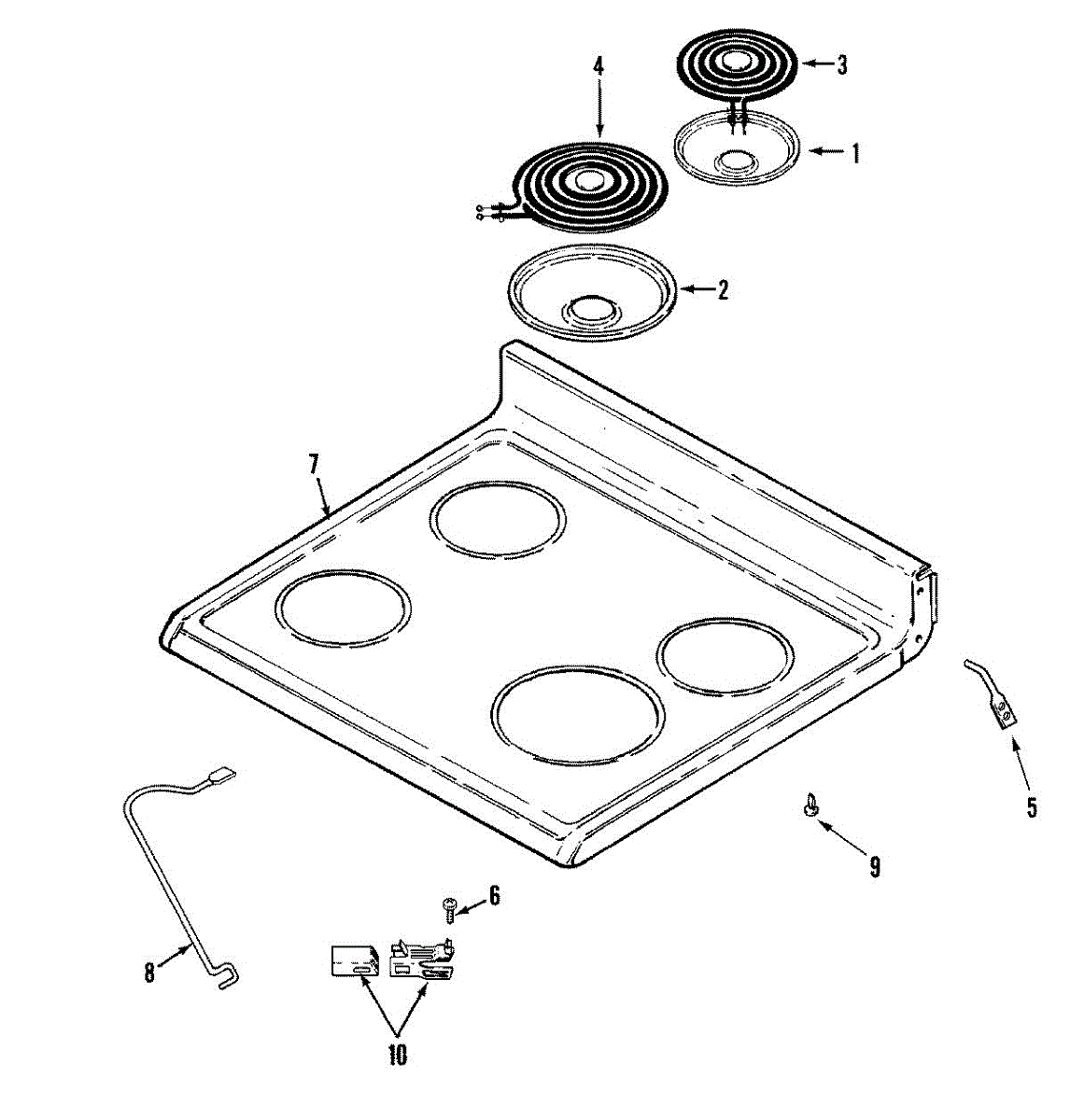

Parts for Crosley CE38600AAQ: 07 - Top Assembly Parts

Color: Almond. This kit includes ( 2 ) 6 inch pans and ( 2 ) 8 inch pans

Color: Almond. This kit includes ( 2 ) 6 inch pans and ( 2 ) 8 inch pans

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

This 8-inch coil surface element restores reliable heating on the large burner of electric ranges and cooktops. Its 2350-watt design provides steady, even heat for boiling, frying, and everyday cooking.

• Converts electrical power into heat for the large cooktop position
• Common failure symptoms: no heat, uneven heating, only part of the coil glowing, visible breaks or blisters, or failed continuity
• Plug-in coil style for receptacle-type burner sockets
• If no heat persists after replacement, also inspect the element receptacle and the burner switch

• Disconnect power to the range/cooktop and allow the element to cool completely
• Lift the old element and pull straight out from the receptacle
• Align the new element's terminals with the receptacle, push in firmly until fully seated, and set it into the support/drip bowl
• Restore power and test the burner

Size: 8abx3/8 - blk)

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

For the complete terminal block kit order 12001676.
