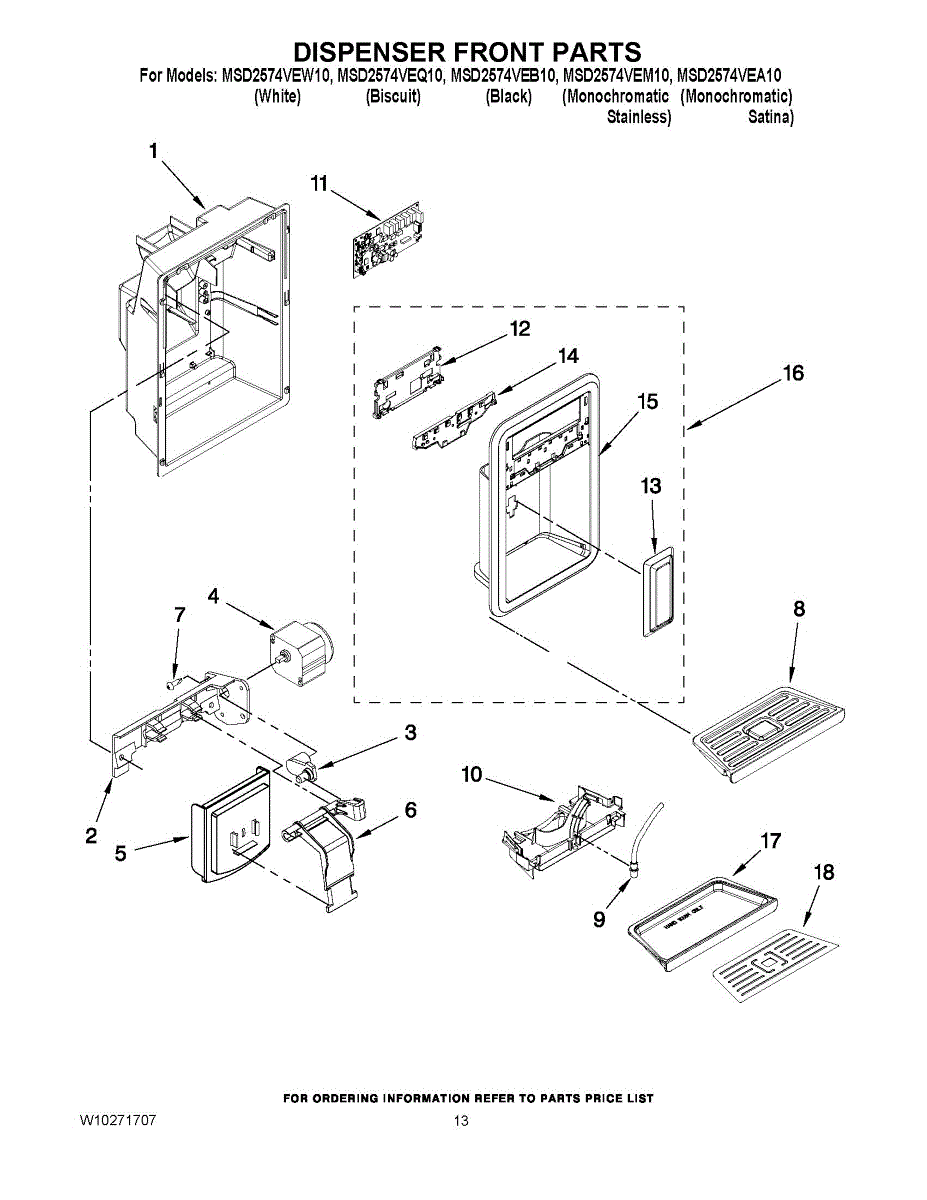

Parts for Maytag MSD2574VEW10: 08 - Dispenser Front Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

This mounting bracket secures the ice maker motor assembly to the freezer housing so the motor stays aligned for reliable ice production. Replacing a damaged bracket restores proper motor positioning and reduces unwanted movement. What it does:

• Secures the ice maker motor to the freezer housing to maintain correct alignment.
• Prevents motor wobble or misalignment that can cause noisy operation or incomplete ice ejection.
• Helps ensure the motor drives the ice maker gears properly for consistent ice production.
• Commonly replaced when the bracket is cracked, bent, or missing mounting points.

• Always disconnect power to the appliance before servicing.
• Access the ice maker per the service manual; remove the ice maker or access panel as needed to reach the bracket.
• Reuse original mounting hardware unless new hardware is explicitly included; align bracket so the motor turns freely without binding.

This door bracket connector links the door bracket to its mating linkage in select refrigerator door assemblies. Replacing a worn or broken connector restores a solid connection so the door operates smoothly and stays properly aligned. What it does:

• Couples the door bracket to the hinge/actuator linkage to maintain alignment
• Helps ensure smooth door opening and closing
• Supports proper door sealing to reduce gaps or misalignment
• Replace if cracked, broken, or missing; common symptoms include a loose, clicking, or misaligned door

• Disconnect power before servicing; support the door as needed to prevent strain on hinges
• Remove the relevant bracket/cover to access the connector; note the connector's orientation
• Transfer and reuse existing screws/fasteners
• After installation, check door alignment and gasket contact all around

For the complete ice dispenser door kit order W10823377

Screw for control panel.

Color: White

Color: Black

Replace your refrigerator's drip pan if cracked, damaged, or missing. This drain trough collects defrost water beneath the unit. Essential component.

The button interface on the refrigerator door that activates water and ice dispensing functions when pressed. Replace when buttons don't respond to pressure, stick in position, or when cracks allow moisture to enter the control system.

The button interface on the refrigerator door that activates water and ice dispensing functions when pressed. Replace when buttons don't respond to pressure, stick in position, or when cracks allow moisture to enter the control system.

The button interface on the refrigerator door that activates water and ice dispensing functions when pressed. Replace when buttons don't respond to pressure, stick in position, or when cracks allow moisture to enter the control system.

The button interface on the refrigerator door that activates water and ice dispensing functions when pressed. Replace when buttons don't respond to pressure, stick in position, or when cracks allow moisture to enter the control system.

Replacement insulation pad for refrigerators. Installs to provide thermal barrier and energy efficiency. Replace if cracked, compressed, or missing.
