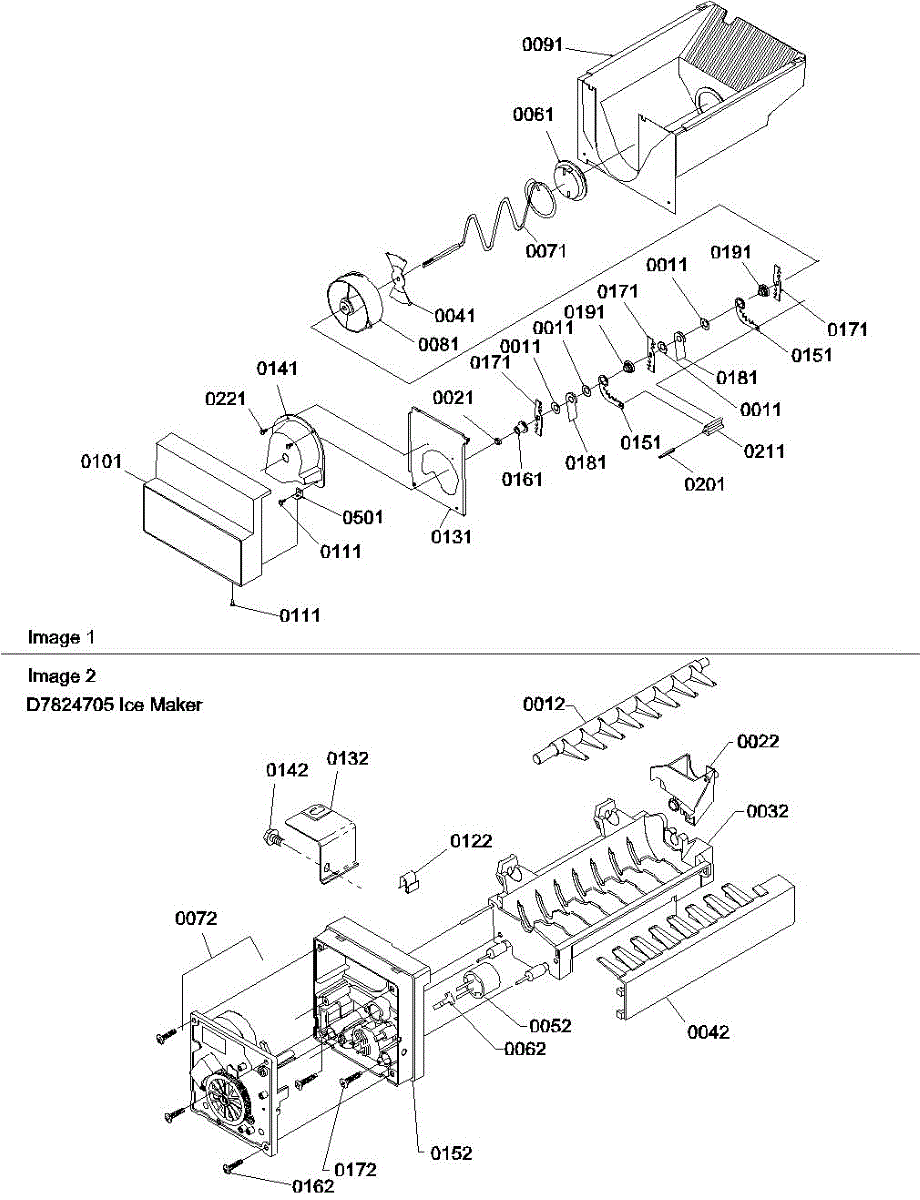

Parts for Amana SRD23VPSE / P1315308W E: 08 - Ice Bucket Auger And Ice Maker Parts

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

A locking nut that secures threaded shafts and fasteners to prevent loosening from vibration and regular use. Fits where a small, self-retaining nut is required to keep components firmly attached. What it does:

• Threads onto compatible studs/bolts to lock assemblies in place
• Resists vibration-related loosening for more reliable operation
• Commonly used on appliance control or mechanical linkages
• Small replacement part that restores secure fastening where the original nut is damaged or missing

• One locking nut

• Turn off and unplug the appliance before accessing internal components
• Match nut thread size and type to the stud before installation
• Use appropriate tools and torque; avoid overtightening which can strip threads

This icemaker fill cup and bearing assembly directs water from the inlet tube into the ice mold and provides the pivot point for the shutoff arm. Replacing a cracked or missing cup helps stop leaks, misdirected fills, and inconsistent ice production.

• Channels incoming water into the ice mold to prevent splashing and overfilling
• Provides the pivot/bearing for the ice level (shutoff) arm
• Helps maintain consistent cube size and reliable icemaker shutoff
• Typical symptoms: water or ice buildup under the icemaker, overfilling or hollow/irregular cubes, or a loose/binding shutoff arm

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin and detach the icemaker to access the side-mounted cup
• Position the new cup directly under the fill tube; secure with existing hardware and verify the shutoff arm pivots freely in the bearing
• Restore power and water; run a test fill and check for leaks

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

This end cap fits on the front of the ice-bin auger. It secures the auger shaft and blade stack inside the ice container so cubes or crushed ice dispense smoothly and the auger stays properly aligned.

• Secures the front of the auger and blades in the ice bucket
• Maintains auger alignment with the drive for reliable ice dispensing
• Helps prevent jams and rattling in the ice container
• Common symptoms of a failed cap: weak/no ice dispense, loose/wobbly auger, grinding or rattling noises, visible cracks or a missing cap

• Disconnect power and remove the ice bin before servicing
• Note the order of blades, spacers, and washers; take a photo for reassembly
• Replace the cap and reassemble in the original order using existing hardware
• Ensure the bin is fully seated and test dispense after restoring power

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

This replacement bracket secures the refrigerator ice maker assembly so it stays properly positioned for reliable ice production. It restores stable mounting and helps prevent the ice maker from shifting or coming loose. What it does:

• Holds the ice maker assembly in place on the freezer liner or mounting frame
• Keeps the ice maker aligned for proper operation and water fill
• Helps stop vibration or movement that can cause noisy operation or misfeeds
• Useful when the original bracket is bent, broken, or missing

• Disconnect power to the refrigerator and shut off the water supply before starting
• Remove the ice maker to access the bracket mounting screws
• Reuse existing screws if undamaged; tighten to secure but avoid overtightening
• If mounting points or surrounding plastic are damaged, replace or repair before reinstalling

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal
