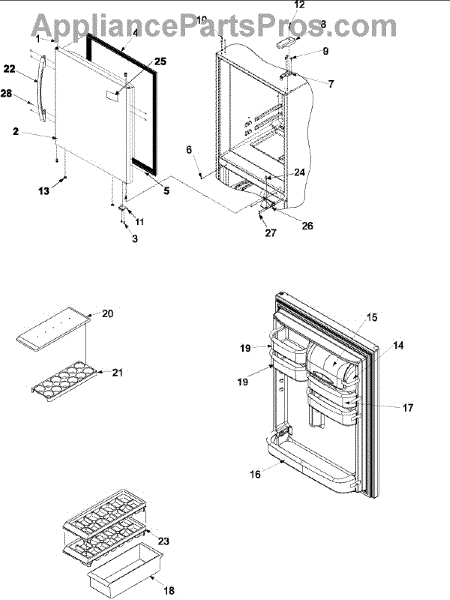

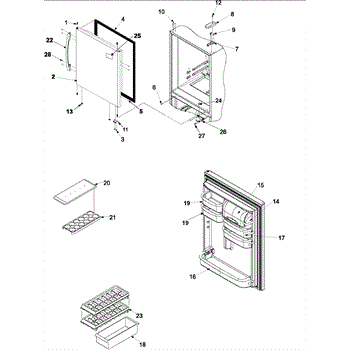

Parts for Amana ABB2522FEQ: 08 - Refrigerator Door Parts

This door hinge bushing restores smooth, stable movement at the refrigerator door pivot. It sleeves the hinge pin to reduce friction and wear, helping the door stay aligned so it closes cleanly and maintains a proper seal.

• Seats in the door hinge to guide the hinge pin and reduce friction
• Helps maintain door alignment and consistent gasket contact
• Replaces a worn, cracked, or missing bushing that can cause noise or binding
• Typical symptoms: squeaking or grinding at the hinge, door sagging/misalignment, door hard to open or close, or not closing flush

• Disconnect power; clear and support the door to prevent strain
• Remove hinge cover and fasteners; lift the door off the hinge pin as needed
• Remove the old bushing from the hinge area and press the new bushing fully into place, matching original orientation
• Reinstall hardware; adjust hinges/level as needed

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This foam-in-place (FIP) gasket creates a tight seal between mating surfaces inside the appliance. A proper seal helps contain conditioned air, reduce moisture intrusion, and support consistent, efficient performance. What it does:

• Forms an air- and moisture-resistant seal between components
• Helps prevent air leaks that can affect temperature stability
• Replaces crushed, torn, or missing foam seals
• Common symptoms of a failed seal: visible gaps, drafts around panels/ducts, persistent condensation or frost near the sealed area, temperature swings

• 1 foam-in-place gasket

• Disconnect power before servicing
• Access the sealed component; remove the old gasket and note orientation
• Clean and dry mating surfaces; install the new gasket without stretching or compressing
• Reassemble and confirm the seal is uniform around the perimeter

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This door stop replaces the small bumper that cushions and limits the door's travel so the door closes smoothly and avoids hard impacts. It restores normal door movement and reduces noise from slamming or catching. What it does

• Acts as a bumper/stop to limit how far the door opens or closes
• Cushions the door to prevent hard impacts and reduce noise
• Helps keep the door aligned and prevents catching or uneven closing
• Commonly replaced when the stop is worn, cracked, missing, or deformed

• One door stop

• Disconnect power (unplug or switch off breaker) before starting any repair
• Removal/installation typically requires basic hand tools and access to the door hinge/stop area
• Align the new stop in the same position as the old one and secure per the appliance's hinge/trim layout
• Reuse the original fasteners unless replacements are specified

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

This replacement dairy door restores the flip-up cover for the small butter/dairy bin on your refrigerator door. Replace a cracked or missing cover to keep contents contained and your door storage tidy.

• Covers the butter/dairy compartment on the fresh food door
• Flips up for access and down to help secure items
• Helps prevent small items from sliding out of the bin
• Replaces a cracked, broken, loose, or missing cover

• Remove the dairy bin for easier access and alignment
• Align hinge tabs with the bin pivots and press gently until it snaps in
• Avoid forcing cold plastic; let parts warm to room temperature
• If working near electrical components, disconnect power and wear cut-resistant gloves

This medium refrigerator door bin replaces a cracked or missing shelf on the fresh-food door, restoring secure, organized storage for bottles, jars, and condiments. It snaps into the door rails for a stable, factory fit.

• Holds and organizes items on the refrigerator door to maximize usable space
• Restores proper fit when the original bin is cracked, warped, or missing
• Helps prevent tipping and spills when opening/closing the door
• Common symptoms: broken or chipped plastic, loose fit, falls off door, missing bin

• Empty the old bin before removal
• Lift the front and pull up to release it from the door rails/tabs
• Align the new bin with the mounting tabs and press down until fully seated
• Ensure it sits level and avoid overloading; place in the position intended for the medium bin on your model

This replacement ice cube tray is a direct-fit plastic tray designed to hold and release ice cubes in compatible top- or bottom-freezer refrigerators. Restores convenient ice storage and simple manual ice removal. What it does:

• Holds water in separate cavities so ice cubes form evenly.
• Flexes slightly for easier ice release to reduce twisting or chipping.
• Replaces cracked, warped, or missing trays that cause leaking or uneven freezing.
• Helps prevent contamination from freezer debris when used as intended.

• Remove old tray and wipe area clean before installing the new tray.
• Fill tray with water on a level surface and place flat in the freezer to freeze.
• Handle carefully when removing ice to avoid spills; do not force with sharp tools.
• Clean tray before first use and as needed; follow refrigerator manufacturer's care guidance.

This center hinge pin is the pivot stud for the refrigerator door's middle hinge. Replacing a worn pin restores stable door movement and alignment so the door opens smoothly and seals reliably.

• Provides the pivot point for the door on the center hinge bracket
• Helps maintain proper door alignment for smooth opening/closing
• Wear or damage may show as door sagging, rubbing, or wobbling at the hinge
• Misalignment from a worn pin can contribute to poor sealing or a door that won't stay closed

• Disconnect power; wear cut-resistant gloves
• Remove items from the door and support the door before loosening hinge fasteners
• Lift the door off the hinge, swap in the new pin, and transfer any spacers/shims in the same order
• Reassemble, align the door, and confirm the gasket makes full contact all around

This decorative identification nameplate replaces a worn, damaged, or missing Amana Plus front badge to restore appliance appearance and legibility of branding/details. It's a simple cosmetic replacement that keeps the exterior looking finished. What it does:

• Replaces a faded, scratched, or missing Amana Plus nameplate on the appliance exterior
• Restores readable product branding and identification on the front panel
• Improves overall appearance after cosmetic wear or accidental damage
• Helps owners quickly identify the model area without guessing

• Turn off and unplug the appliance before starting any work near electrical components.
• Clean and dry the mounting area so the nameplate adheres or seats properly.
• Remove any remaining adhesive or clips from the old plate before installing the new one.
• Align carefully and press firmly; if fasteners are present on your model, retain and reuse as needed.

This center hinge assembly secures and supports a refrigerator door, helping it pivot smoothly and stay aligned for a tight seal. Replaces a worn or damaged hinge to restore proper door movement and closure. What it does:

• Provides the pivot point that lets the door open and close smoothly
• Restores proper door alignment to prevent gaps that let cool air escape
• Stops door sagging or uneven operation caused by a worn hinge
• Reduces scraping, binding, or unusual noises at the door pivot

• One center hinge assembly

• Disconnect power to the appliance before beginning any repair
• Support or remove the door to avoid injury or damage
• Use the original mounting hardware or OEM-specified fasteners for secure installation
• Check door alignment and gasket seal after installation; adjust as needed

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces
