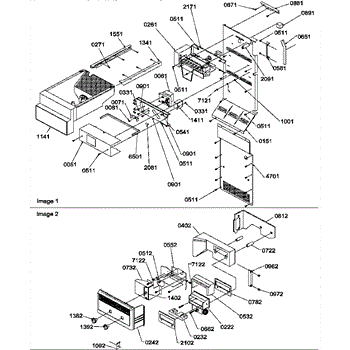

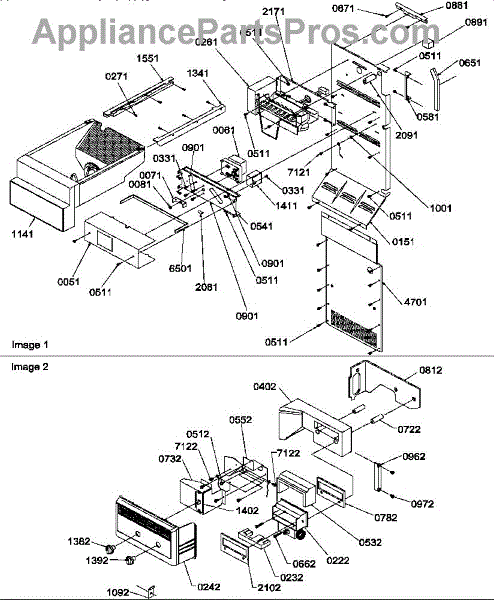

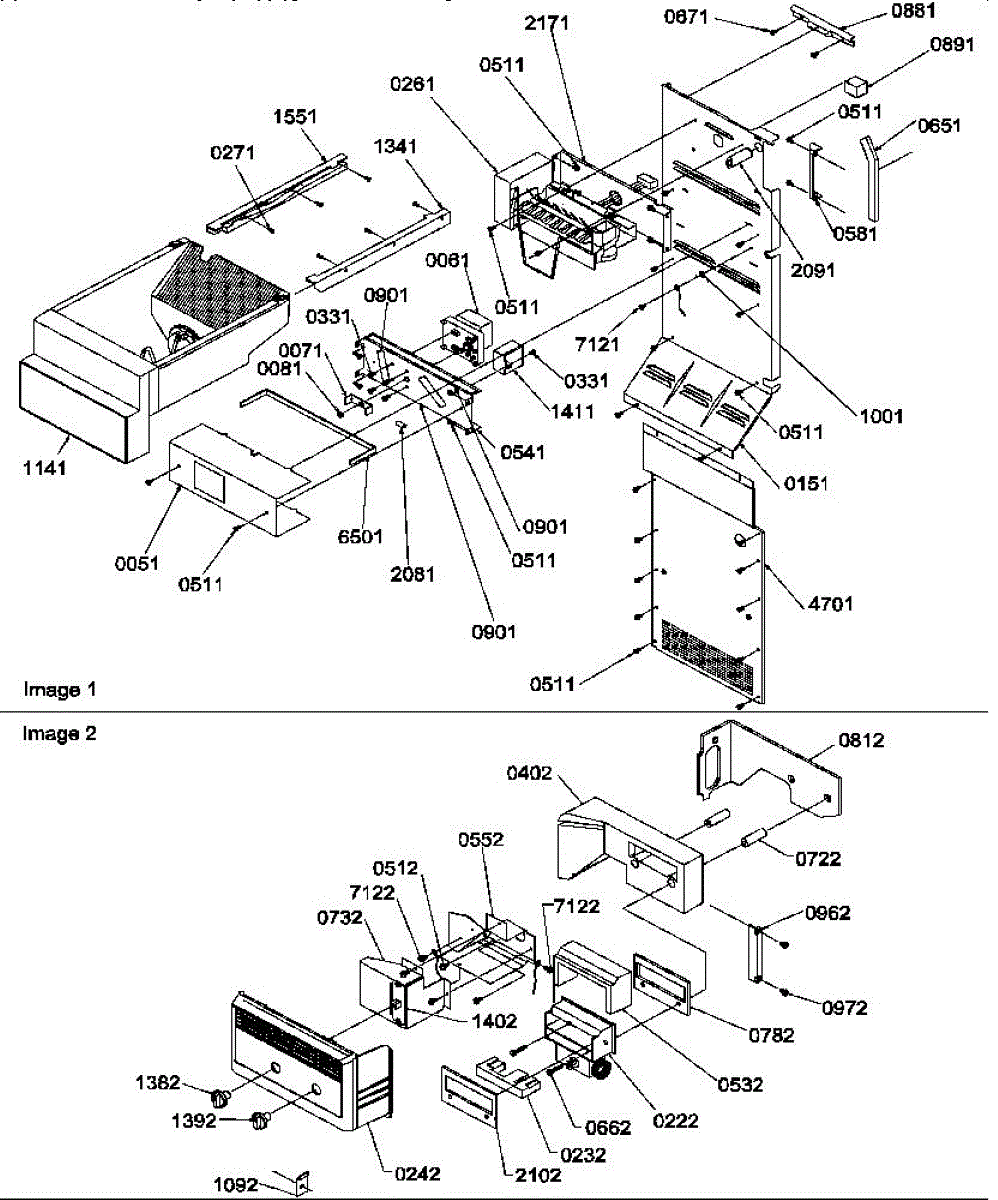

Parts for Amana SRD325S5E / P1307201W E: 09 - Ice Maker / Control Assy Parts

This auger motor drives the ice-dispensing auger inside the freezer door to move ice from the bin to the dispenser chute, restoring normal ice dispensing when the auger won't turn. Fits compatible Whirlpool freezer ice dispensers. What it does:

• Turns the auger shaft to push ice through the dispenser chute.
• Replaces a failed or seized dispenser motor that causes no ice to dispense.
• Stops abnormal noises or grinding from the dispenser when motor gears are worn.
• Helps restore normal dispense speed and responsiveness when the motor is intermittent.

• Disconnect power to the refrigerator before servicing to avoid shock or injury.
• Access may require removing the door panel, inner liner, or ice bin—follow your model's service manual.
• Inspect the auger shaft and gears for damage and replace any worn components to prevent repeat failure.

This driver coupling connects the dryer motor to the drum and transfers rotational force so the drum spins. Replacing a worn coupling restores reliable drum rotation and helps stop slipping or intermittent drum movement. What it does:

• Transfers torque from the motor to the drum shaft so the drum turns during operation
• Prevents slipping between motor and drum when intact
• Commonly linked to symptoms like a drum that won't turn, intermittent drum movement, or grinding noises
• Helps stop excessive wear on motor or transmission components when replaced promptly

• One driver coupling

• Disconnect power before beginning any repair to avoid shock or injury
• Verify the drum and motor are accessible; you may need to remove the front panel, belt, or motor assembly depending on model
• Inspect the motor shaft and drum shaft for wear; replace any damaged components to prevent repeat failure
• Use proper tools and follow OEM instructions

A locking nut that secures threaded shafts and fasteners to prevent loosening from vibration and regular use. Fits where a small, self-retaining nut is required to keep components firmly attached. What it does:

• Threads onto compatible studs/bolts to lock assemblies in place
• Resists vibration-related loosening for more reliable operation
• Commonly used on appliance control or mechanical linkages
• Small replacement part that restores secure fastening where the original nut is damaged or missing

• One locking nut

• Turn off and unplug the appliance before accessing internal components
• Match nut thread size and type to the stud before installation
• Use appropriate tools and torque; avoid overtightening which can strip threads

This part has been discontinued and is no longer available.

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

This part has been discontinued and is no longer available.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Size: 8 x 1-1/4 inch.

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

This left-side freezer glide helps the freezer drawer slide smoothly and stay aligned, restoring proper drawer movement and preventing binding or sagging. Fits the freezer drawer track and supports normal opening and closing. What it does:

• Guides and supports the freezer drawer on the left side for smooth travel
• Keeps the drawer aligned to prevent scraping, sticking, or uneven movement
• Reduces chatter and wear on the drawer and track from improper seating
• Common symptom: drawer sticks, drags, or drops on one side when opening

• One left-side freezer glide

• Disconnect power before working on the appliance and remove food from the drawer area
• Remove the freezer drawer per the manual to access and replace the glide
• Use basic hand tools as required; avoid forcing parts to prevent breakage
