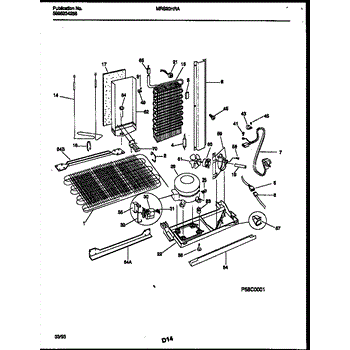

Parts for Frigidaire MRS20HRAWO: 09 - System And Automatic Defrost Parts

Hex washer head ,10-32 x 0.375. Ground

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

This compressor mounting pin secures the refrigerator compressor to its mounting bracket, helping reduce vibration and noise for reliable operation. It's a simple, rugged fastener used where the compressor meets the cabinet base. What it does:

• Anchors the compressor to the mounting bracket to limit movement and vibration
• Helps reduce compressor-related rattling or banging noises during operation
• Maintains proper compressor alignment to protect refrigerant lines and electrical connections
• Works with existing mounts and brackets as shown in OEM diagrams

• One compressor mounting pin

• Disconnect power and unplug the appliance before accessing the compressor area
• Support the compressor and attached lines before removing or installing mounting hardware
• Use appropriate hand tools and follow OEM diagram locations for correct placement

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Refrigerator not cooling properly or making loud noises? The condenser fan motor shroud directs airflow for proper cooling. Moderate DIY repair.

This part has been discontinued by the manufacturer and is no longer available.

Freezer drain tube that channels defrost water from the drain pan to the drip pan. Replace if cracked, leaking around the grommet, or causing floor leaks.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.
