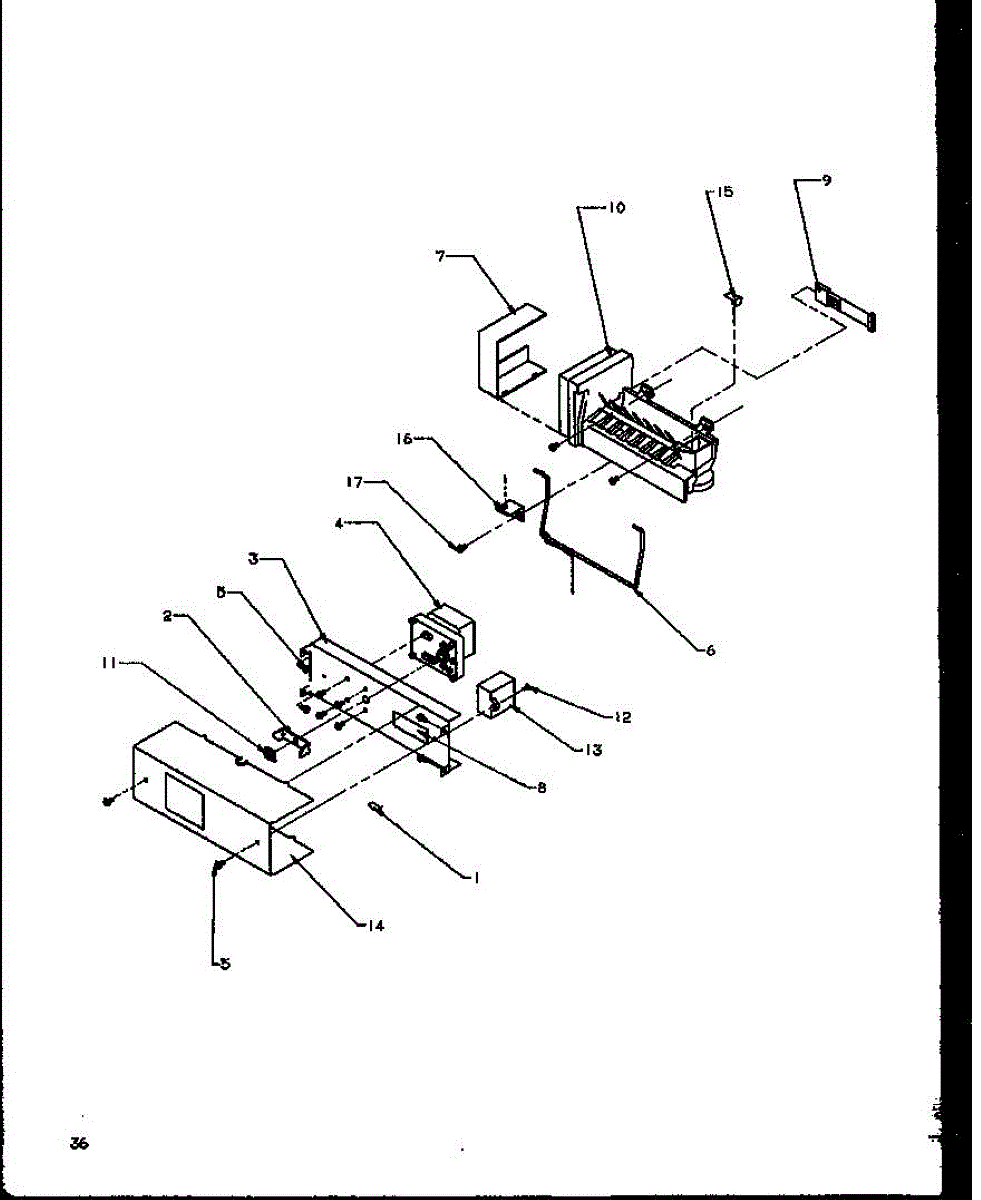

Parts for Amana SBD20NE / P1162503W E: 10 - Ice Maker Parts

Ice dispenser not working or jamming? This auger coupling connects the motor to the ice bin auger. Moderate DIY repair requires a wrench and hammer.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This ice maker assembly produces and dispenses ice cubes in your refrigerator's freezer compartment. It automatically fills with water, freezes it into cubes, and releases them into the ice bin. Replace this part when your refrigerator stops making ice, produces misshapen cubes, or makes unusual noises during the ice-making cycle.

Fix loose or vibrating refrigerator components with this locking hex nut. Secures threaded shafts and prevents fasteners from loosening over time.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This component helps to kickstart the compressor, facilitating the refrigeration cycle that cools the interior of the fridge.

Such issues can stem from electrical failures within the relay, physical damage, or wear and tear from regular use. When the relay does not function correctly, it can lead to inconsistent cooling and, in severe cases, cause the compressor to overheat and fail prematurely.

Symptoms of a failing Compressor Start Relay include:

• The refrigerator not cooling properly or not cooling at all
• A noticeable clicking sound emanating from the back of the refrigerator, indicating the relay is trying to start the compressor but failing
• The refrigerator starts and stops frequently, unable to maintain a constant temperature

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
