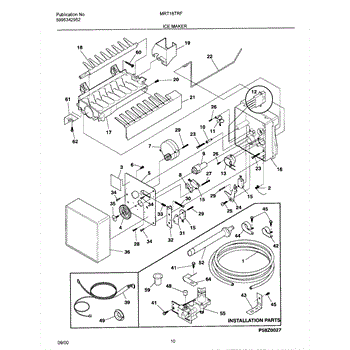

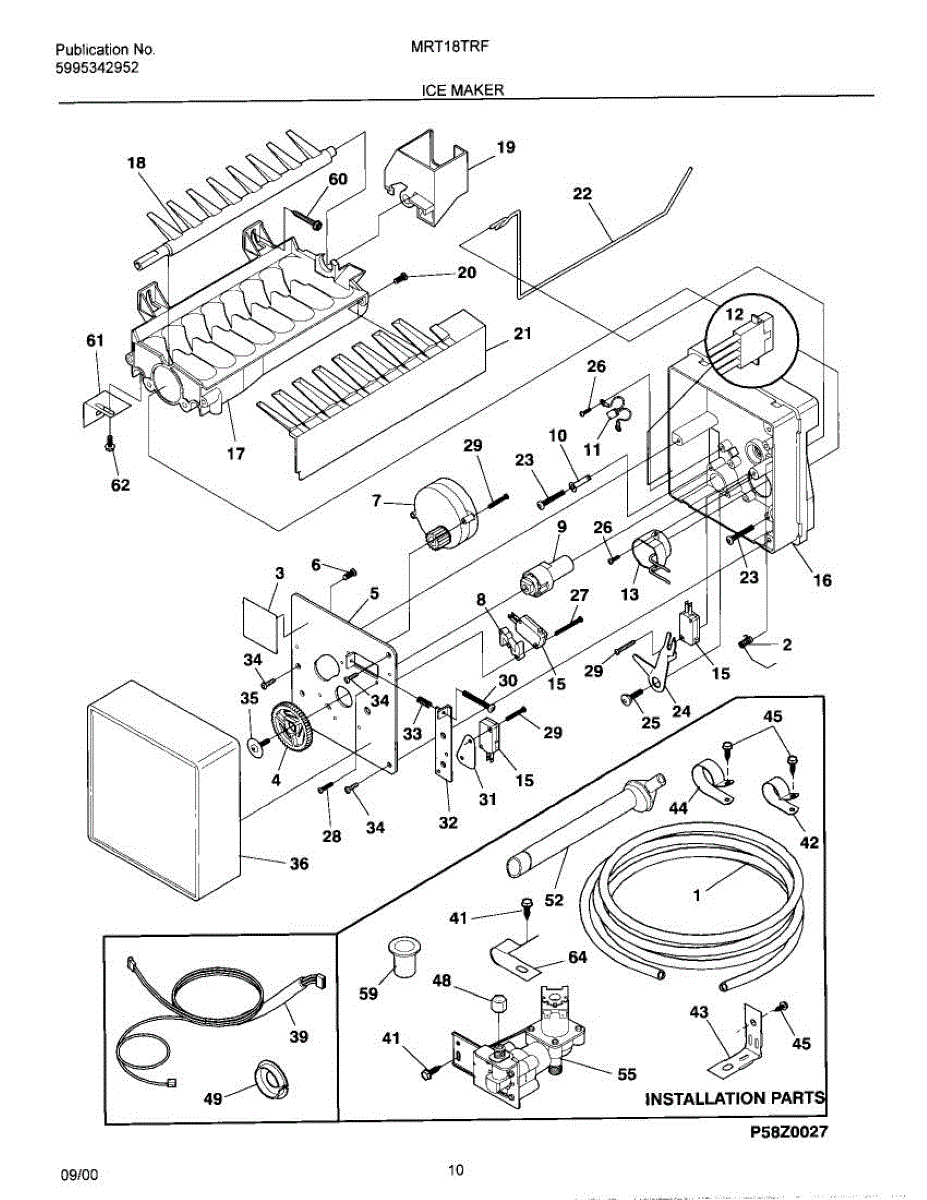

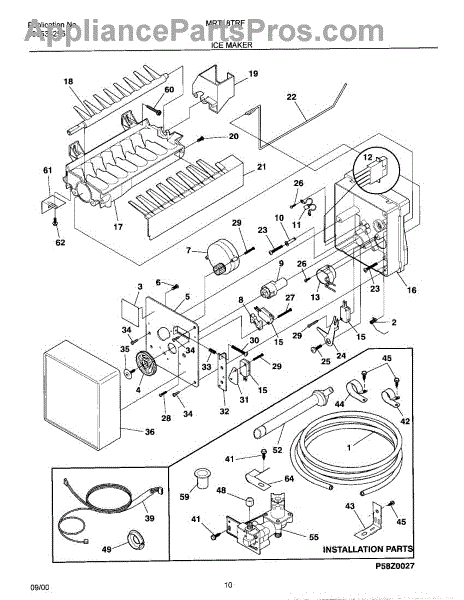

Parts for Frigidaire MRT18TRFD4: 11 - Ice Maker Parts

1/4"diameter - 93" long, plastic, cut-to fit

Ice maker clicking or not producing ice? A worn drive gear with stripped teeth is often the cause. This 5-minute fix restores normal ice production.

Mounting plate secures the ice maker assembly inside your refrigerator. Replace if cracked, warped, or broken to restore proper ice maker support.

The Replacement Icemaker is an OEM part for Frigidaire side-by-side refrigerators. It serves the critical function of automatically producing batches of ice cubes on demand. Note: The Icemaker Kit comes with an adaptor harness that may be needed for some applications. The harness converts a 4 pin connector to a 3 pin connector.

Causes of a malfunctioning icemaker can vary. They may stem from failed control sensors affecting conductivity and freeze times, scaled or corroded water lines, or an ice basket mold with broken fins and louvers.
Symptoms of a bad icemaker include:

• Reduced or inconsistent ice production
• Ice cubes getting jammed or fused together
• Water leaks or spray inside the freezer
• Strange sounds or mechanisms not working

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Spacer component for refrigerator hold switch assembly. Replaces worn, cracked, or missing spacers. Installs between hold switch and mounting plate.

Refrigerator not cooling or running too warm? A faulty thermostat prevents proper temperature regulation. This control cycles the compressor to maintain set temps.

This micro switch detects door or lid position and tells the appliance when the door is closed so cycles can start or safety interlocks stay engaged. It restores reliable door sensing and helps prevent operation with the door open. What it does:

• Acts as a position sensor that completes or breaks the control circuit when the door/lid is closed or opened
• Keeps the appliance from starting or continuing a cycle if the door is open (safety interlock)
• Common symptom fix: appliance won't start, stops mid-cycle, or shows door-related error codes
• Small electrical switch designed to mount at the door latch or frame and connect to the appliance wiring harness

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removing panels, trim, or the door latch assembly; keep track of screws and fasteners
• Observe wiring orientation and connector positions; replace exactly as removed or tag wires

Ice maker stopped making ice? This complete ice maker assembly resolves no ice production and leaking issues. Easy DIY install with video guide included.

This ice ejector is the plastic arm that pushes cubes out of the ice maker mold and into the ice bin, restoring proper ice ejection and dispenser function. It's a direct-replacement component for affected ice maker assemblies. What it does:

• Physically strips and pushes formed ice cubes from the mold into the bin or dispenser
• Helps restore normal ice dispensing when cubes remain stuck in the mold
• Works with the ice maker's motor/gear train to time ejection during the harvest cycle
• Commonly replaced when the ejector is broken, cracked, or worn and no longer contacts cubes

• One ice ejector (ejector arm)

• Disconnect power to the refrigerator before starting any repairs
• Remove the ice maker/cover or access panel as required to reach the ejector
• Inspect related components (drive gear, motor, and mounting pins) for wear while replacing the ejector
• After installation, run a test harvest/dispense cycle to correct operation

Secures the ice mold assembly to the support bracket in your ice maker. Replace this mounting screw if it's stripped, missing, or broken during service.

Ice maker not shutting off or making too much ice? A worn lever arm prevents proper shutoff. Simple replacement takes under an hour to restore function.

Specs: 4 - 24 x 3/8

Specs: 4 - 40 x 0.375

Specs: 4 - 24 x 0.750

Fix water dispensing issues or ice maker problems with this valve switch plate. Controls water flow to dispensers and ice makers in most refrigerators.

Replacement screw for securing refrigerator panels, brackets, and trim. Restores proper fit and reduces rattling from loose or missing fasteners.

Replaces your refrigerator's ice maker cover if cracked, broken, or missing. This protective cap installs on the ice maker assembly in your freezer.

Wire harness for ice makers and refrigerators. Connects electrical components inside the unit. Replace if wires are frayed, damaged, or connectors are broken.

Secures water, drain, and refrigerant tubing to prevent movement and wear. Replace if tubes are loose, vibrating, or damaged. Verify fit with model number.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Specs: 7/16 x 20

Water fill tube that directs water from the supply line into the ice maker. Replace if cracked, frozen, or the connection point is damaged or broken.

Single solenoid valve kit.

Water tube insert sleeve for refrigerators. Fits inside water line connections to prevent leaks. Replace if cracked, damaged, or missing.

Replacement screw for securing panels, components, and assemblies in appliances. Needed when original screws are stripped, lost, or damaged during repair.

Leveling bracket that mounts and supports the ice maker assembly inside your refrigerator. Replace if bracket is cracked, broken, or missing.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Secures refrigerator hoses to fittings with spring tension to prevent leaks. Replace when clamp loses grip or shows rust. Verify fit with model number.

The Replacement Icemaker is an OEM part for Frigidaire side-by-side refrigerators. It serves the critical function of automatically producing batches of ice cubes on demand. Note: The Icemaker Kit comes with an adaptor harness that may be needed for some applications. The harness converts a 4 pin connector to a 3 pin connector.

Causes of a malfunctioning icemaker can vary. They may stem from failed control sensors affecting conductivity and freeze times, scaled or corroded water lines, or an ice basket mold with broken fins and louvers.
Symptoms of a bad icemaker include:

• Reduced or inconsistent ice production
• Ice cubes getting jammed or fused together
• Water leaks or spray inside the freezer
• Strange sounds or mechanisms not working

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
