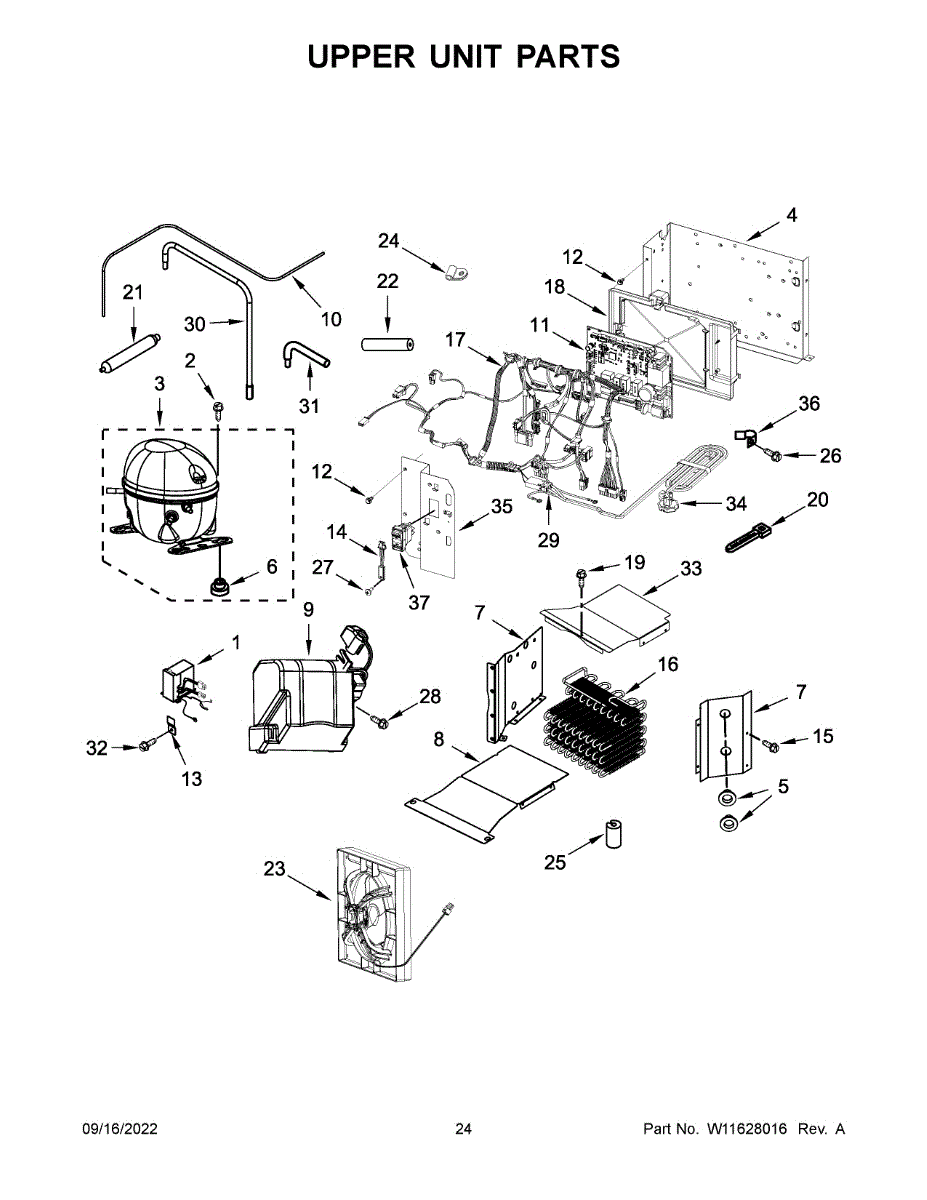

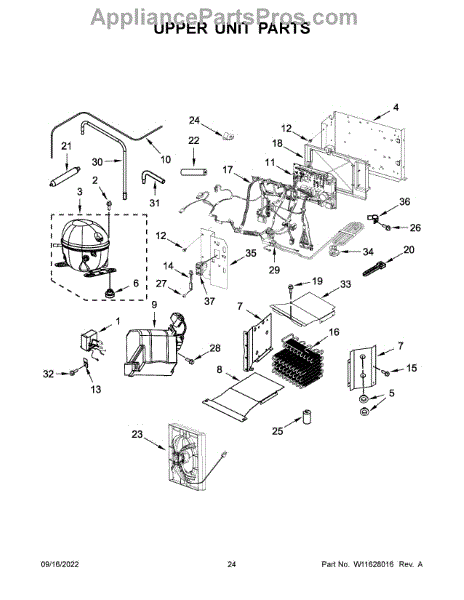

Parts for Whirlpool JBSS42E22L00: 13 - Upper Unit Parts

This inverter box assembly controls the motor drive functions for compatible machines, restoring proper electronic power conversion and motor control. Replacing a faulty inverter box can help recover normal motor operation and machine responsiveness. What it does:

• Converts and regulates power for the motor drive, enabling variable motor speeds and normal operation
• Restores proper communication between the motor and main control when the inverter is failed
• Helps eliminate erratic motor behavior caused by a damaged or shorted inverter board

• One inverter box assembly (X11-AD)

• Disconnect all power to the appliance before beginning service to avoid electrical shock
• Handle the assembly carefully; avoid touching circuit traces or components and ground yourself to prevent static damage
• Verify connections and mounting orientation match the original before finalizing installation

Rubber grommet for refrigerators and freezers. Protects wires and components from sharp edges. Replace if cracked, worn, or missing for proper fit.

Replacement housing for your refrigerator. Protects internal components and maintains proper appearance. Order now if your original is cracked or damaged.

Rubber grommet for refrigerator doors, shelves, or water lines. Replace if cracked, torn, loose, or missing to restore proper fit and seal.

Rubber or plastic grommet for freezer applications. Replaces worn, cracked, or missing grommets in wire harness openings or structural areas.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Mounting bracket that secures the inverter box inside your refrigerator. Replace if cracked, bent, or missing to properly support the inverter assembly.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 8-32 x .312 inch.

Filters and dries refrigerant in your refrigerator's cooling system. Replace if you notice cooling issues, leaks, or clogs. Verify fit with your model.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

Seals openings where hoses or wires pass through cabinet walls. Replace if cracked, torn, or missing to prevent chafing and vibration noise. Verify fit.

Screw: 8-16 x 3/8 inch.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

Jumper wire for refrigerators. Installs in the electrical system to complete circuit connections. Replace if damaged, corroded, or missing.

Replacement power cord for refrigerators. Connects appliance to wall outlet. Needed when original cord is damaged, frayed, or worn from use.
