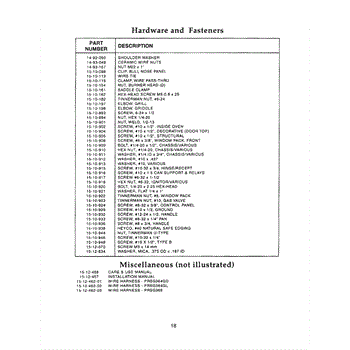

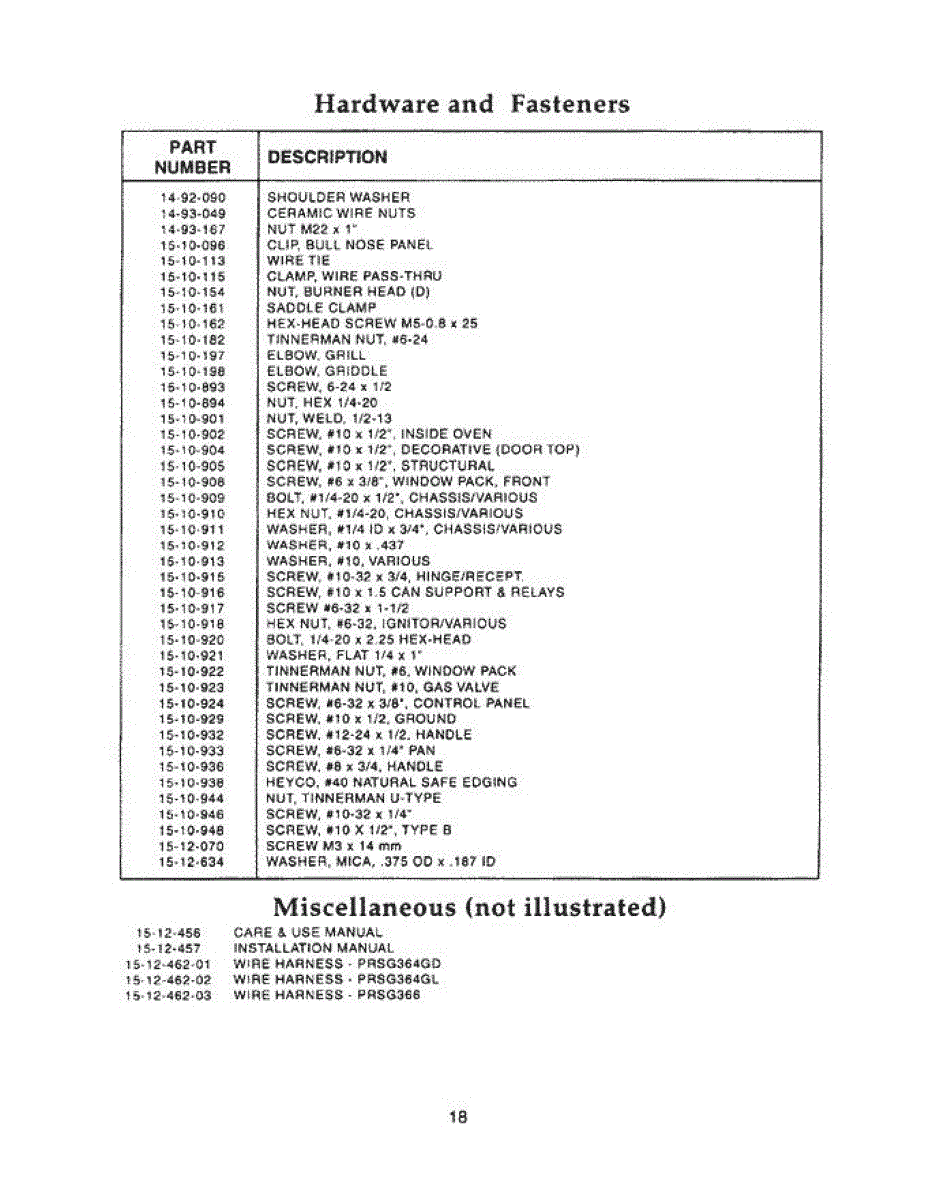

Parts for Thermador PRG366: 18 - Hardware & Fasteners Parts

This is a 1/4-20 hex keps nut — a hex nut with an attached captive washer that helps secure panels, brackets, and fasteners. It provides a simple, vibration-resistant fastening solution for appliance assemblies. What it does

• Fastens components to machine frames, panels, and brackets using a 1/4-20 bolt or stud.
• Captive washer helps resist loosening from vibration and movement.
• Commonly used where a compact, pre-assembled nut-and-washer is needed for reliable retention.
• Replace when threads are stripped, washer is damaged, or parts wobble or rattle.

• One hex keps nut (1/4-20).

• Disconnect power and follow appliance safety procedures before working on hardware.
• Use the correct 1/4" socket or wrench to install; hold the mating bolt head as needed to tighten.
• Tighten securely but avoid over-tightening to prevent thread damage or distortion.
• Replace with the same nut type and size to maintain fit and vibration resistance.

This is a #10 x 1/2 inch pan-head Phillips sheet-metal screw used to fasten appliance panels and internal components. It replaces missing or worn screws to restore proper fit and reduce rattles or loose parts. What it does:

• Secures trim, access panels, brackets and other sheet-metal parts
• Keeps components aligned and prevents vibration-related noise
• Restores proper fastening when original screws are stripped, lost or corroded
• Works where a #10 x 1/2" pan-head Phillips sheet-metal screw is specified

• One #10 x 1/2" pan-head Phillips sheet-metal screw

• Disconnect power and water before servicing the appliance
• Use the correctly sized Phillips screwdriver to avoid stripping the head
• Start threads straight and tighten until snug—do not overtighten to avoid stripping or deforming sheet metal
• Keep small parts away from children and pets

This is a #10 x 1/2 inch pan-head Phillips sheet-metal screw used to fasten appliance panels and internal components. It replaces missing or worn screws to restore proper fit and reduce rattles or loose parts. What it does:

• Secures trim, access panels, brackets and other sheet-metal parts
• Keeps components aligned and prevents vibration-related noise
• Restores proper fastening when original screws are stripped, lost or corroded
• Works where a #10 x 1/2" pan-head Phillips sheet-metal screw is specified

• One #10 x 1/2" pan-head Phillips sheet-metal screw

• Disconnect power and water before servicing the appliance
• Use the correctly sized Phillips screwdriver to avoid stripping the head
• Start threads straight and tighten until snug—do not overtighten to avoid stripping or deforming sheet metal
• Keep small parts away from children and pets

This Tinnerman C nut is a spring-steel speed clip that secures sheet-metal panels and components using a mating screw. It provides a captive thread where a tapped hole or weld nut isn't practical, helping restore proper fit and stop rattles. What it does:

• Provides a captive, reusable threaded anchor for self-tapping or machine screws
• Secures trim, access panels and internal brackets to sheet-metal edges or panels
• Stops panel movement and vibration-related noise when the original clip is damaged or missing
• Works where a conventional nut or stud cannot be used due to limited access

• Disconnect power and unplug the appliance before accessing panels or fasteners
• Position the clip over the panel edge or hole, then press or slide until it snaps into place
• Align the mating screw and thread carefully to avoid cross-threading the clip
• Use hand tools or pliers for placement; do not over-torque the screw once installed

Used to hold down the jet holder assembly.

The Venturi Gas Tube is an OEM replacement part for Bosch gas cooktop ranges. Its primary function is to ensure an optimal gas/air mixture for consistent and efficient burner combustion, thereby enhancing the overall performance of the cooktop.

Causes involve normal wear of internal components from continuous heating and cooling cycles. Corrosion damage may also disrupt the venturi tube over time.

Symptoms of a faulty venturi gas tube include:

• Unstable or hard-to-control flame levels
• Potential issues shifting burner flames out of their intended position
• Safety risks including carbon monoxide from improper fuel/air balance

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.
