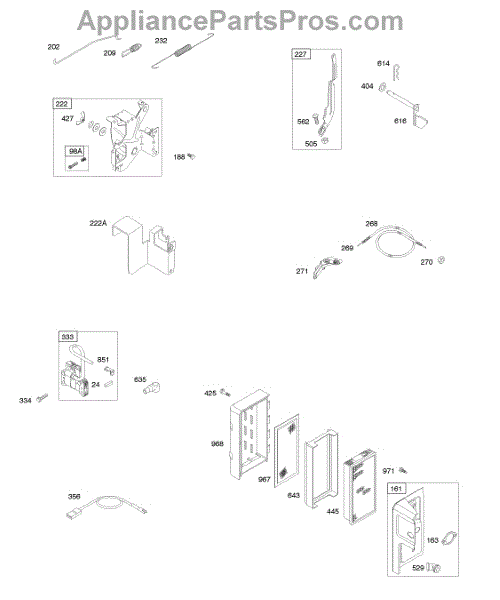

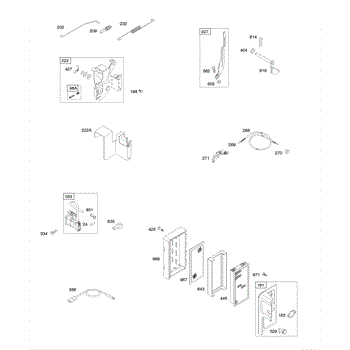

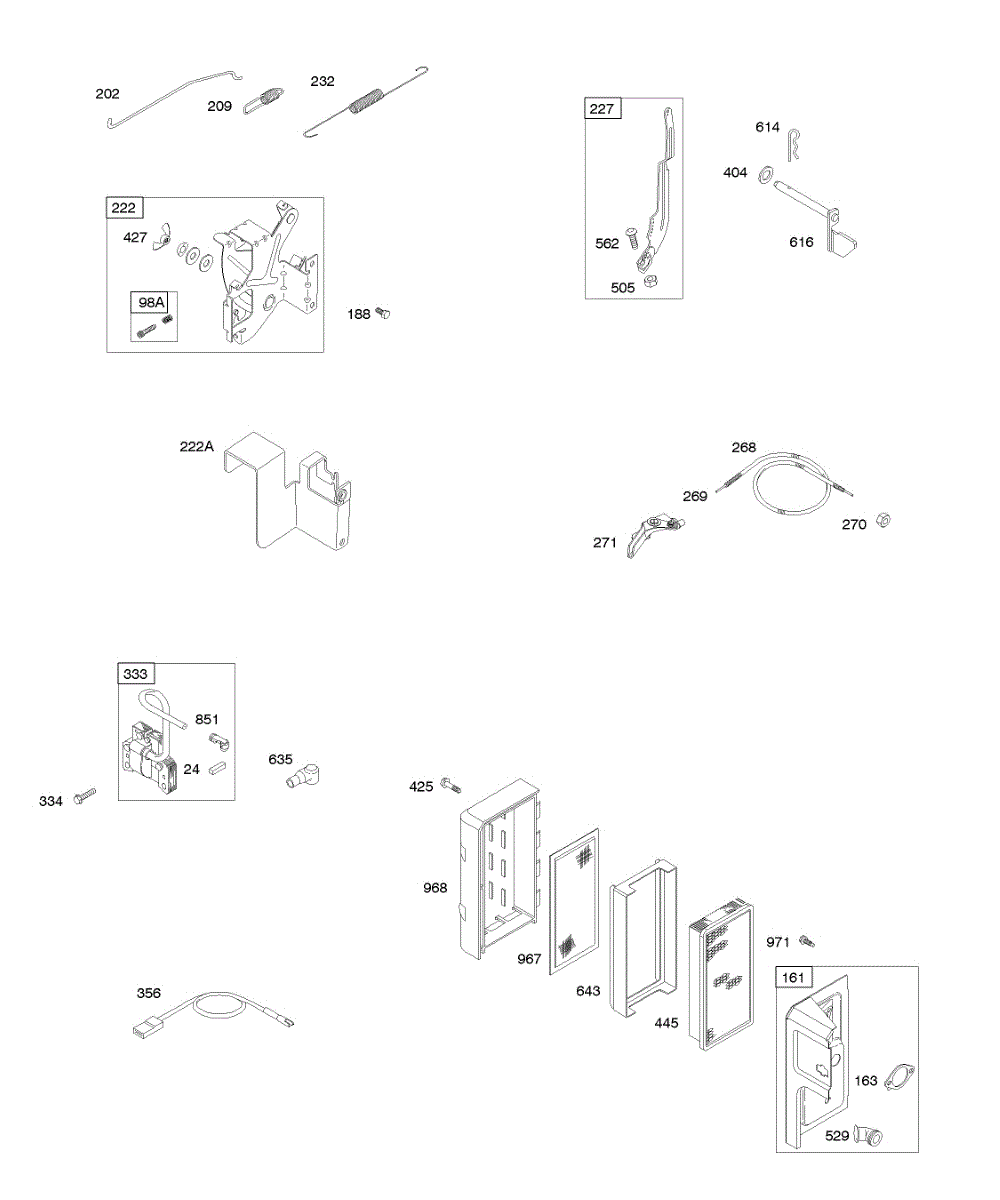

Parts for Briggs & Stratton 091412-0120-E1: Air Cleaner, Controls, Governor Spring, Ignition Parts

The flywheel key is the component on outdoor equipment that keeps the flywheel connected to the crankshaft. Over time, this key may become damaged or broken, particularly if the engine experiences a forceful stop, like hitting a large stationary object. If the flywheel key breaks, the engine will not start. A slightly damaged flywheel key is noticeable through symptoms like misfiring, backfiring, or having no power. If any of these are occurring, the flywheel key should be replaced to prevent complete engine failure.A flywheel puller tool is required for this repair. Make sure the engine is cool before working on the flywheel. Wear safety gear, including gloves and eye protection. Disconnect the spark plug and remove the blower housing. Remove the flywheel mounting nut and set it aside. Take the recoil starter cup off the mower. Use the flywheel puller to remove the flywheel and access the flywheel key. Remove the broken flywheel and replace it with the new flywheel. Reverse the steps to put the mower back together.This flywheel key is made of an aluminum alloy and is sold as an individual part. It is designed for use in lawnmowers, lawn tractors, and other small engines manufactured by Briggs and Stratton, Toro, Lawn-Boy, Simplicity, MTD, and others.

This is a screw that is used in many types of lawn and garden equipment, including lawnmowers and wood chippers. It comes with a black finish and is made of durable metal. The screw can be used in many locations on a tool to attach two components together. Screws can also be used in tandem with nuts, but the two components should have the same threading and finish.Screws can become damaged, break, or be stripped and will need to be replaced. Corrosion, extreme temperatures, and unexpected stress can all lead to issues with a screw. A visual inspection can indicate whether the screw should be replaced. If it does need replacement, a screwdriver can be used to remove the original screw. The new component can be placed and tightened.This screw is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold as a single component. The screw can be used with many types of lawn and garden equipment, including lawnmowers, tillers, pressure washers, leaf blowers, edgers, generators, wood chippers, and snowblowers manufactured by Briggs & Stratton, Cub Cadet, Craftsman, Murray, Wheel Horse, Lawn-Boy, MTD, MasterCut, Simplicity, and Toro.

This standard engine screw is responsible for securing various components and has multiple applications or locations, depending on the type and model of the lawn and garden equipment. It needs to be in good condition to continue to work effectively. Over time, however, hardware can come loose, be lost, break, or be otherwise worn or damaged, which would require a replacement. This screw can provide a solution for a number of applications on various engines. This genuine OEM replacement screw is manufactured to exact standards by Briggs & Stratton. It is compatible with hundreds of engines in lawn mowers and generators. Check the owner's manual for part location, as well as appropriate replacement procedure. This screw is made from durable metal and sold as an individual unit. Those who need more than one screw will have to order multiple quantities. This hardware should always be installed properly according to the manufacturer's recommendations and is a specialty screw that has specific uses. Not using the OEM screw replacement could cause operational issues or void any warranties that are in place.

This Briggs and Stratton OEM lawn mower air filter is designed to work with 3 and 5 horsepower industrial plus and 5.5 horsepower Vanguard engines. An air filter is the first line of defense against dirt and debris that can be kicked up from the mowing process. When in good condition and working properly, the air filter prevents dirt from entering the engine through the carburetor.Lawn mower air filters should be replaced every three months (or more often if necessary) to prevent damage to the engine. Changing the air filter is an easy process and is usually performed when changing the oil. Routine maintenance can increase the life of the lawn mower. Replacing the air filter requires a flat head screwdriver and takes only seconds.Remove the spark plug wire. Remove the retaining bolt from the lawn mower's air filter housing. Separate the housing halves and remove the air filter. Clear away debris from the housing to ensure the new filter will not collect any of the left over debris and install. This is an OEM part sourced directly from the manufacturer and sold individually.

This replacement grommet is bent at a 45-degree angle to create an elbow for the crankcase breather tube. Another name for the replacement grommet is a 45-degree breather tube. It is made from high-quality black rubber. If the exhaust smoke is coming out dark in color, the grommet may be cracked or damaged and need to be replaced. Another symptom of a faulty grommet is a reduction in mower performance. If the engine is backfiring, this could also be a sign that the grommet has failed. This simple repair doesn’t require any tools. It should easily fit into place without needing to remove any parts aside from the old grommet. Just attach the replacement grommet to the breather tube, connecting the crankcase to the carburetor. It is compatible with many mowers and other small engines manufactured by various brands like Briggs & Stratton, Cub Cadet, Simplicity, and Toro. This is a genuine OEM part.

The spark plug boot is a rubber piece that is responsible for connecting the spark plug to the spark plug wires and completing the connection. Spark plugs are necessary to create the engine spark that will start the motor in lawn equipment and other small engines. The boot holds the terminal and keeps everything protected from the elements and insulated so that it continues to work correctly. If the spark plug connection seems weak or if the existing boot is damaged, this replacement could provide the solution. This durable rubber boot will insulate the spark plugs and help any small engine run better. This spark plug boot replacement can be used with a number of Briggs & Stratton engines and is compatible with hundreds of different machines from Toro, Lawn-Boy, and Briggs & Stratton. This boot replacement is sold individually as a single piece and does not include the terminal or any other housing or materials.

This genuine OEM replacement part is a spark plug terminal for a wide variety of small combustion engines. In a combustion engine, the spark plug generates a small electrical charge that creates enough power to start up the ignition and engage combustion. The plug connects to the ignition through the terminal. Spark plugs generate and then pass a small electrical current through to the ignition. Usually, the main issue with spark plugs is that this current hyper-extends and ends up frying the spark plug. However, if the terminal is damaged, the charge will not pass into the ignitor, and the engine will not turn. If the spark plug can carry a charge but the engine still won't turn, it's likely the terminal that needs replacing. This is an easy repair because the terminal should just snap on and off. If stuck, a pair of needle-nose pliers should make it easier. This high-quality replacement part is compatible with engines from Murray, Toro, Lawn Boy, and Briggs & Stratton. It is sourced from the original manufacturer and ships individually.

This replacement pre-filter is an authentic OEM part for a wide range of small and medium sized gas-powered lawn appliances. Before gasoline passes into an engine's combustion chamber, it is first mixed with air in the carburetor to make a balanced and well-oxygenated fuel. The air comes in from outside of the engine. However, if the air is full of particulate matter, it can sully the fuel and cause the engine to degrade. To prevent this, manufacturers install an air filter to catch dust and debris. This is a pre-filter that adds a second layer of protection for the carburetor. After a few months of regular use, an air filter will usually have reached its maximum capacity. If left for too long, it can block air from entering the carburetor and cause the engine to choke up. Therefore, it's important to replace filters and pre-filters every two to three months. This is an easy fix, as most air filters will just pop open. If not, use a screwdriver to gain access. This replacement pre-filter is designed for Briggs & Stratton and Toro appliances. It comes from the original manufacturer and ships individually.

This replacement part is a screw. It is a genuine replacement part made by Midwest Engine. Screws are found in many different types of appliances and machines. These parts are important in holding different pieces together so that the user is able to operate the appliance effectively. A replacement screw might be needed if some parts of the appliances are loose or missing. Screws can become stripped over time. If this is the case it is recommended that they be replaced as soon as possible. The repair for this screw is simple and will most likely require a screwdriver and perhaps pliers if the previous part is lodged in place. This screw is made of durable metal. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.
