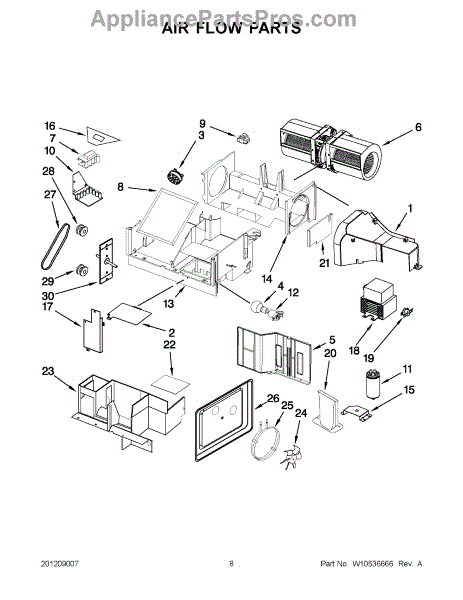

Parts for Kitchenaid KHMC1857BBL0: 04 - Air Flow Parts

This lamp cover is the replacement lens that protects and diffuses your oven's interior light, restoring even illumination while keeping the bulb shielded from heat and food residue. It helps maintain safe, usable oven lighting. What it does:

• Protects the oven light bulb from splashes, crumbs and direct contact.
• Diffuses the bulb for more even interior illumination.
• Replaces a cracked, cloudy, melted or missing lens that can cause dim or exposed lighting.
• Fits over the lamp housing to restore the oven's normal light appearance and function.

• Disconnect power to the appliance before starting and allow the oven to cool completely.
• Handle the cover carefully—wear gloves to protect from sharp edges or broken glass.
• Remove any retaining screws or clips, swap the old cover for the new one, then secure the retainer.
• After installation, restore power and replace the bulb if issues persist.

The 40W Light Bulb is an OEM replacement part for Whirlpool microwave ovens. It is a standard-size bulb designed to provide illumination inside the microwave cavity, allowing you to easily view and monitor the cooking or reheating process.

Symptoms of a faulty microwave light bulb include:

• Dimming or flickering light during operation
• Complete bulb failure or no illumination within the cavity
• Discoloration or physical damage to the bulb itself

Causes of a bad microwave light bulb can include normal wear and tear over time, electrical surges or voltage fluctuations, or physical impact or vibration during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.

This Charcoal Filter is an OEM replacement part for Whirlpool microwaves. The charcoal filter is responsible for improving the air quality in the kitchen by removing impurities and odors from the air. It is used to remove smoke, grease, and cooking odors as it is drawn up through the vent fan. By trapping these particles, the filter helps maintain cleaner air in the kitchen and prevents odors from recirculating and affecting the taste and smell of your food.

Causes of a bad Charcoal Filter include saturation from absorbing smoke and odors over time, accumulation of grease and particles that clog the filter, leading to decreased effectiveness, and physical damage that compromises its ability to filter air properly.

Symptoms of a bad Charcoal Filter include:

• Persistent odors in the kitchen after cooking.
• Smoke not being effectively vented out during microwave use.
• Reduced airflow from the microwave's venting system.

Replacing the charcoal filter at regular intervals or when these symptoms are noticed ensures that your microwave continues to operate efficiently and keeps your kitchen air clean. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Description- Color: metallic. Measures about 5 inches wide by 5 inches deep.

The Nut is an OEM part for Whirlpool microwaves. It helps secure various parts within the microwave, ensuring proper assembly and function. It is used to fasten items, keeping them securely in place during use.

A bad microwave nut can occur due to wear and tear over time or accidental damage. If the nut becomes loose, stripped, or misplaced, it can lead to instability and compromise affected parts.

Symptoms of a bad microwave nut include:

• Loose or wobbly parts.
• Difficulty in operating the microwave.
• Unusual noises or vibrations during use.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This Light Housing secures and protects the interior lamp assembly, helping keep the compartment safely illuminated. Replace a cracked or heat-damaged housing to restore a stable bulb fit and consistent lighting performance. What it does:

• Provides a stable mount for the interior light bulb/socket
• Shields nearby wiring and components around the lamp area
• Helps position the light for proper illumination inside the compartment
• Common signs of wear: cracked or melted housing, loose bulb fit, lens/cover won't stay attached, intermittent lighting from a poor physical connection

• 1 light housing

• Disconnect power to the appliance before servicing
• Remove the lens/cover and bulb, then unfasten the damaged housing
• Transfer the existing socket, wiring, and any hardware from the old housing as needed
• Reinstall the housing, replace bulb/cover, restore power, and test the light

This air guide directs airflow inside the dryer to improve venting and drying performance. Replacing a damaged guide restores proper air path and helps the dryer run more efficiently and quietly. What it does

• Channels warm air from the blower to the drum and exhaust system to maintain proper airflow.
• Helps prevent air leaks that can cause longer drying times or uneven drying.
• Reduces turbulence that may cause rattling or whistling noises during operation.
• Keeps airflow directed away from internal components to limit lint buildup in sensitive areas.

• Disconnect power (and gas supply for gas dryers) before starting any repair.
• Basic disassembly of the dryer cabinet or front panel may be required; follow the model's service manual.
• Keep track of fasteners and gently handle plastic clips to avoid breakage.

The Magnetron is an OEM part for Whirlpool microwaves. This part generates the microwave energy necessary for cooking and heating food.

Causes of a bad Magnetron can include normal wear and tear over time, power surges or electrical issues, or physical damage from impact or mishandling.

Symptoms of a bad Magnetron include:

• The microwave not heating or cooking food properly
• Arcing or sparking inside the microwave cavity
• Strange noises or buzzing sounds during operation
• Burning smells or smoke coming from the microwave

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A replacement plate used to secure or cover internal components and restore proper fit and protection for your appliance. This stamped metal plate helps keep parts aligned and shields wiring and openings from debris. What it does

• Secures or anchors nearby components to maintain correct alignment and operation
• Covers openings or service areas to protect wiring and insulation from debris
• Helps reduce vibration or rattling by providing a stable mounting surface
• Restores the original enclosure fit and appearance after part removal or repair

• One replacement plate as shown

• Disconnect power to the appliance before beginning any repair
• Installation requires basic hand tools; avoid overtightening fasteners
• Follow OEM instructions for correct placement
• If you encounter damaged fasteners, wiring, or mounting points, address those issues before completing installation

This belt-drive is the replacement drive belt that turns the dryer drum so clothes tumble evenly during the cycle. It restores drum rotation when the original belt is worn, stretched, or broken. What it does:

• Wraps around the dryer drum and motor/idler assembly to transfer motor torque to the drum
• Restores normal drum rotation when the belt has failed or slipped
• Helps eliminate symptoms like a non-turning drum, rubbing or squealing noises, or intermittent tumbling
• Compatible with dryers that use a single continuous drum drive belt

• One (1) belt-drive

• Disconnect power (and gas supply for gas models) before servicing
• Access the dryer drum per your model's service instructions—usually from the front or rear—before removing the old belt
• Route the belt around the drum and idler/tensioner exactly as shown in the model's diagram; ensure proper tension and alignment
• If you encounter damaged pulleys, idler, or motor issues, inspect and replace those parts as needed
