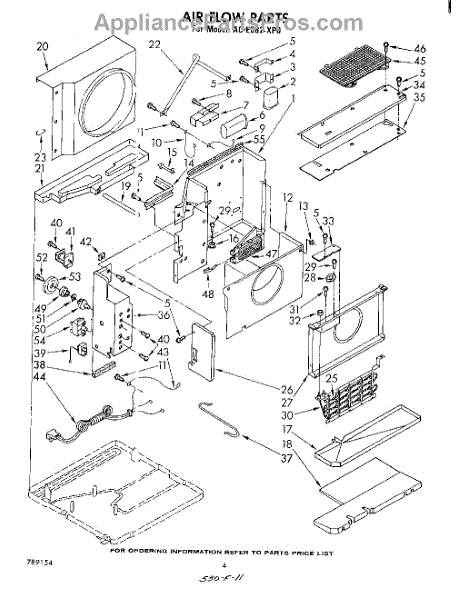

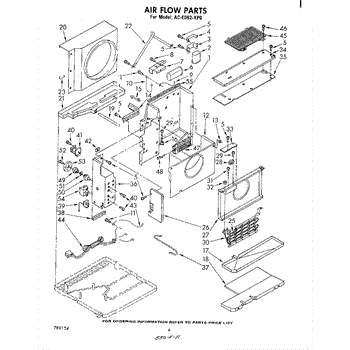

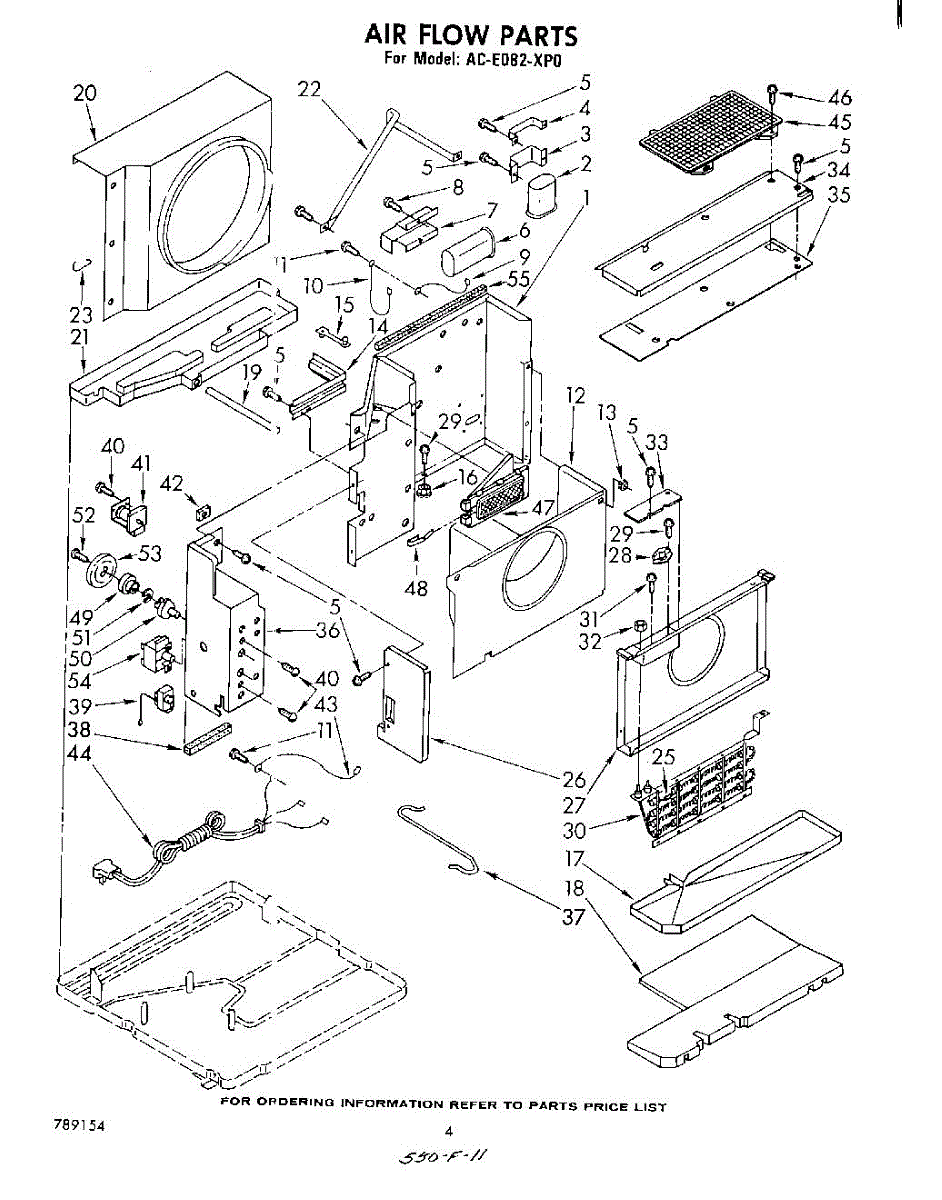

Parts for Whirlpool ACE082XP0: 03 - Section Parts

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This part has been discontinued and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 8-32 x 1/4 inch.

A small retaining nut used to fasten and secure appliance components so they stay in place during normal use. Replaces worn or missing nuts to restore proper fit and reduce movement or rattling. What it does:

• Secures mating parts to prevent loosening from vibration or operation
• Helps maintain proper alignment of panels, brackets or assemblies
• Stops components from shifting, which can cause noise or improper operation
• Simple mechanical fastener — no electrical function

• One retaining nut

• Disconnect power to the appliance before starting any repair
• Use the correct size wrench or socket to snug the nut; avoid overtightening
• If the nut threads onto a stud or bolt, inspect threads for damage and replace mating hardware if worn

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This HiLight hotplate is the glass-ceramic surface heating element that replaces a damaged or non-heating cooktop zone. It restores even, safe heat transfer for standard electric smooth-top ranges. What it does:

• Heats the cooktop zone to allow normal cooking operations.
• Replaces cracked, broken, or non-responsive surface elements.
• Helps stop uneven or intermittent heating on the affected cooking area.
• Works with range controls and wiring to deliver power to the cooktop zone.

• Disconnect power at the breaker before servicing the cooktop to avoid shock.
• Handle the glass-ceramic carefully; replace if cracked or chipped to prevent injury.
• Verify fit and alignment with the cooktop opening and electrical connector type before final installation.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

White electrical wire. Size: 25 ft.

Black electrical wire. Size: 25 ft.

This part has been discontinued and is no longer available.

Size: 25-27 x 15-19 x 6-27 inch.

Sealer for refrigerant line insulation.

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

The Adhesive is an OEM part for Whirlpool appliances, designed for securing and sealing various components within the appliances. This adhesive is ideal for use in situations where a durable and heat-resistant bond is necessary.Size: 2 oz. tube. This silicone rubber adhesive can be used on door gaskets, felt seals, and much more.

Over time, seals and insulation can become loose or detached due to wear, heat, or mechanical action, potentially compromising the appliance's functionality, efficiency, or safety.

The need for this adhesive may become apparent through symptoms such as:

• Loose seals or gaskets that result in heat loss, inefficiency, or the escape of moisture.
• Detached insulation leading to increased noise, heat transfer, or loss of energy efficiency.
• Components that have become unattached, affecting the appliance's performance or structural integrity.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
