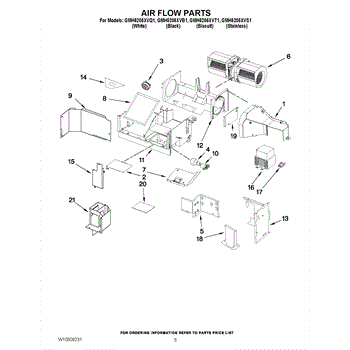

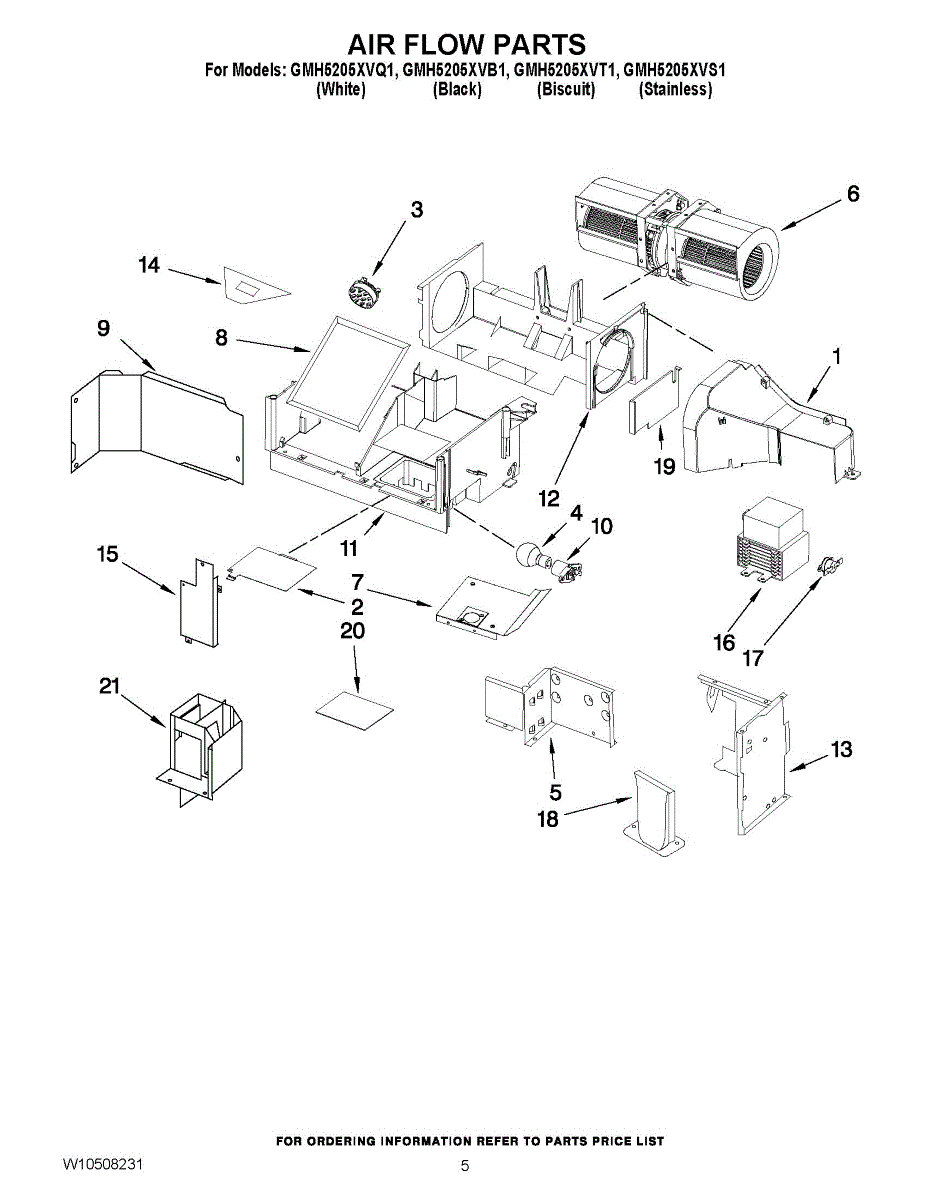

Parts for Whirlpool GMH5205XVB1: 04 - Air Flow Parts

This lamp cover is the replacement lens that protects and diffuses your oven's interior light, restoring even illumination while keeping the bulb shielded from heat and food residue. It helps maintain safe, usable oven lighting. What it does:

• Protects the oven light bulb from splashes, crumbs and direct contact.
• Diffuses the bulb for more even interior illumination.
• Replaces a cracked, cloudy, melted or missing lens that can cause dim or exposed lighting.
• Fits over the lamp housing to restore the oven's normal light appearance and function.

• Disconnect power to the appliance before starting and allow the oven to cool completely.
• Handle the cover carefully—wear gloves to protect from sharp edges or broken glass.
• Remove any retaining screws or clips, swap the old cover for the new one, then secure the retainer.
• After installation, restore power and replace the bulb if issues persist.

The 40W Light Bulb is an OEM replacement part for Whirlpool microwave ovens. It is a standard-size bulb designed to provide illumination inside the microwave cavity, allowing you to easily view and monitor the cooking or reheating process.

Symptoms of a faulty microwave light bulb include:

• Dimming or flickering light during operation
• Complete bulb failure or no illumination within the cavity
• Discoloration or physical damage to the bulb itself

Causes of a bad microwave light bulb can include normal wear and tear over time, electrical surges or voltage fluctuations, or physical impact or vibration during use.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave oven models.

This Charcoal Filter is an OEM replacement part for Whirlpool microwaves. The charcoal filter is responsible for improving the air quality in the kitchen by removing impurities and odors from the air. It is used to remove smoke, grease, and cooking odors as it is drawn up through the vent fan. By trapping these particles, the filter helps maintain cleaner air in the kitchen and prevents odors from recirculating and affecting the taste and smell of your food.

Causes of a bad Charcoal Filter include saturation from absorbing smoke and odors over time, accumulation of grease and particles that clog the filter, leading to decreased effectiveness, and physical damage that compromises its ability to filter air properly.

Symptoms of a bad Charcoal Filter include:

• Persistent odors in the kitchen after cooking.
• Smoke not being effectively vented out during microwave use.
• Reduced airflow from the microwave's venting system.

Replacing the charcoal filter at regular intervals or when these symptoms are noticed ensures that your microwave continues to operate efficiently and keeps your kitchen air clean. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Description- Color: metallic. Measures about 5 inches wide by 5 inches deep.

This Light Housing secures and protects the interior lamp assembly, helping keep the compartment safely illuminated. Replace a cracked or heat-damaged housing to restore a stable bulb fit and consistent lighting performance. What it does:

• Provides a stable mount for the interior light bulb/socket
• Shields nearby wiring and components around the lamp area
• Helps position the light for proper illumination inside the compartment
• Common signs of wear: cracked or melted housing, loose bulb fit, lens/cover won't stay attached, intermittent lighting from a poor physical connection

• 1 light housing

• Disconnect power to the appliance before servicing
• Remove the lens/cover and bulb, then unfasten the damaged housing
• Transfer the existing socket, wiring, and any hardware from the old housing as needed
• Reinstall the housing, replace bulb/cover, restore power, and test the light

This magnetron is the microwave's high-voltage tube that generates the microwaves used to heat food. Replacing a faulty magnetron restores heating performance and stops power-related cooking failures. What it does:

• Converts high-voltage electrical energy into microwave radiation that heats food
• Common symptom: microwave runs but does not heat
• Also be needed if you notice humming, arcing, or a burning electrical smell during operation
• Works with the oven's high-voltage system and waveguide to deliver cooking power

• Disconnect power before servicing; microwave high-voltage components can retain lethal charge
• Discharge the high-voltage capacitor and follow safety procedures
• Inspect waveguide cover and surrounding components for damage when replacing the magnetron
