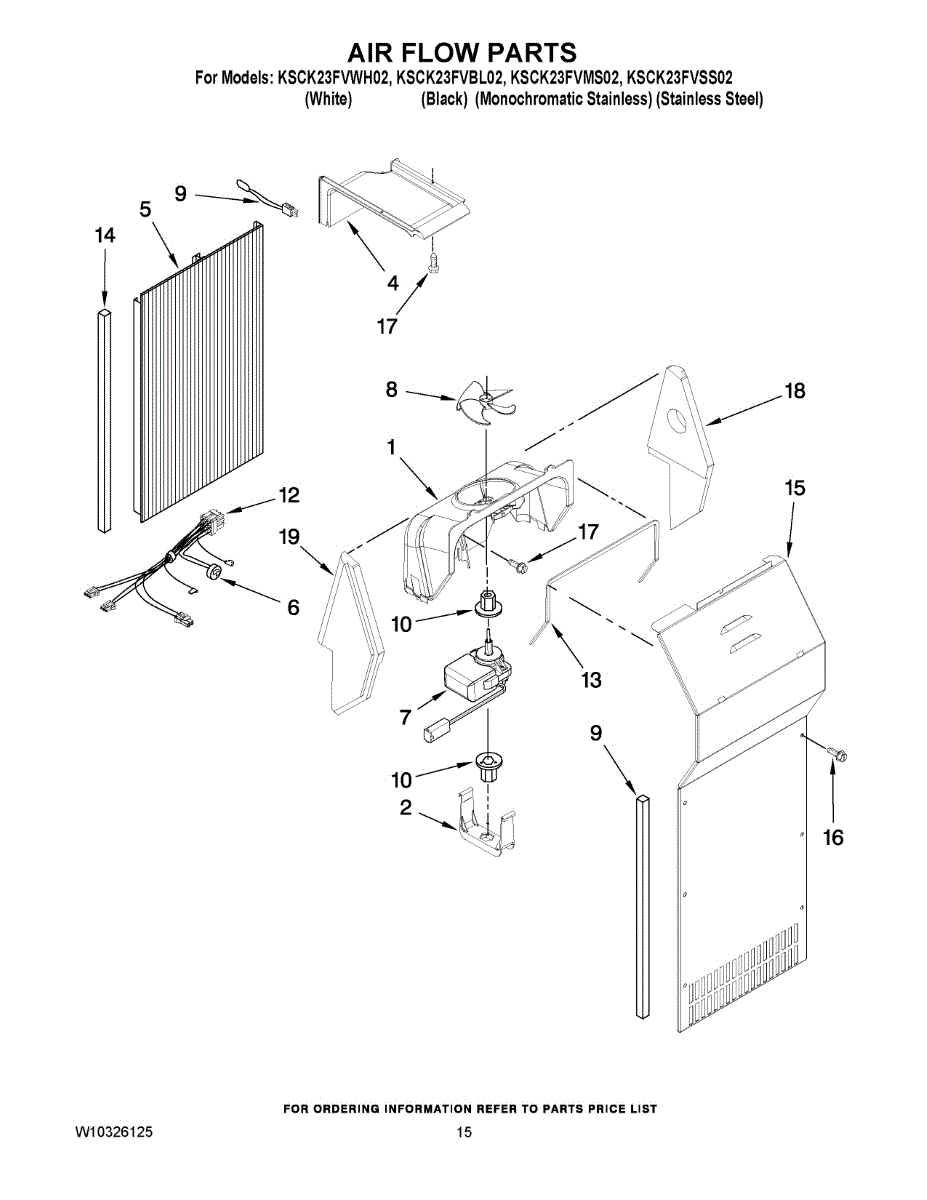

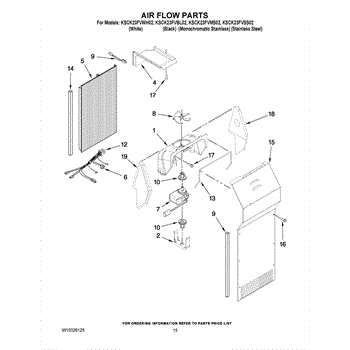

Parts for Kitchenaid KSCK23FVBL02: 09 - Air Flow Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Fixes uneven cooling and warm refrigerator temperatures caused by poor airflow. This fan housing directs cold air from freezer to fridge. Easy 30-minute fix.

Instruction sheet included.

This air duct channels cooled air inside the appliance to maintain proper airflow and even temperature distribution. Replacing a damaged duct restores correct airflow for more consistent cooling and helps prevent frost or hot spots. What it does

• Directs airflow from the evaporator to the cabinet to help maintain even temperatures
• Helps prevent localized frost buildup by guiding conditioned air across cooling surfaces
• Reduces air leaks and unwanted noise caused by cracked or misaligned ducts
• Worn or broken ducts can cause warm spots, uneven cooling, or increased run time

• One air duct

• Disconnect power before starting any repair to avoid electrical shock
• Handle plastic tabs and clips carefully; inspect mounting points and seals during installation
• Use only manufacturer-recommended fasteners and gaskets; do not modify the part

Freezer icing up or not defrosting? This refrigerator defrost thermostat monitors evaporator coil temperature. DIY repair in 15-30 minutes with video.

If your fridge isn't cooling or freezer is making loud noises, the evaporator fan motor may have failed. Moderately easy DIY repair with video guide.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Excessive frost in your freezer? This evaporator cover gasket seals the cover to prevent frost buildup and maintain consistent cooling performance.

Instruction sheet included.

This fan scroll gasket seals the evaporator/fan housing to prevent air bypass and maintain proper airflow through the evaporator. Replacing a worn gasket helps restore efficient cooling and reduces frost buildup. What it does:

• Seals the fan scroll/evaporator housing to direct cold air through the evaporator fins
• Prevents air leaks that can cause reduced cooling or temperature fluctuations
• Helps reduce frost or ice buildup by ensuring consistent airflow over the coil
• Can reduce abnormal fan noise caused by air turbulence around a damaged seal

• Disconnect power to the appliance before beginning any work.
• Remove the evaporator/fan housing cover and carefully pull out the old gasket.
• Clean mating surfaces of debris and residue for a flush seal before installing the new gasket.
• Seat the gasket fully around the scroll; reassemble panels and restore power to test operation.

Replacement door gasket seals your refrigerator to maintain temperature and prevent air leaks. Replace when worn or cracked to restore efficiency.

Refrigerator evaporator cover panel that installs over the evaporator coils. Replace if cracked, broken, or missing to restore proper airflow.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Support plate kit for refrigerators. Includes left and right side mounting plates. Replace if cracked, broken, or missing to restore proper support.
