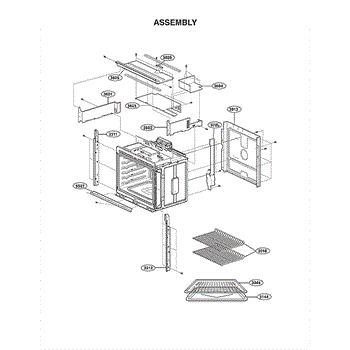

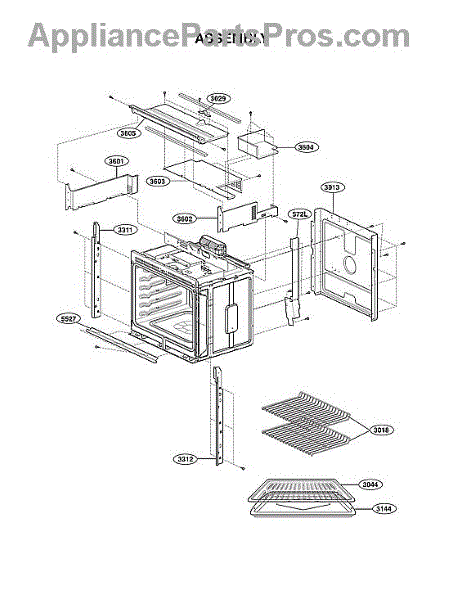

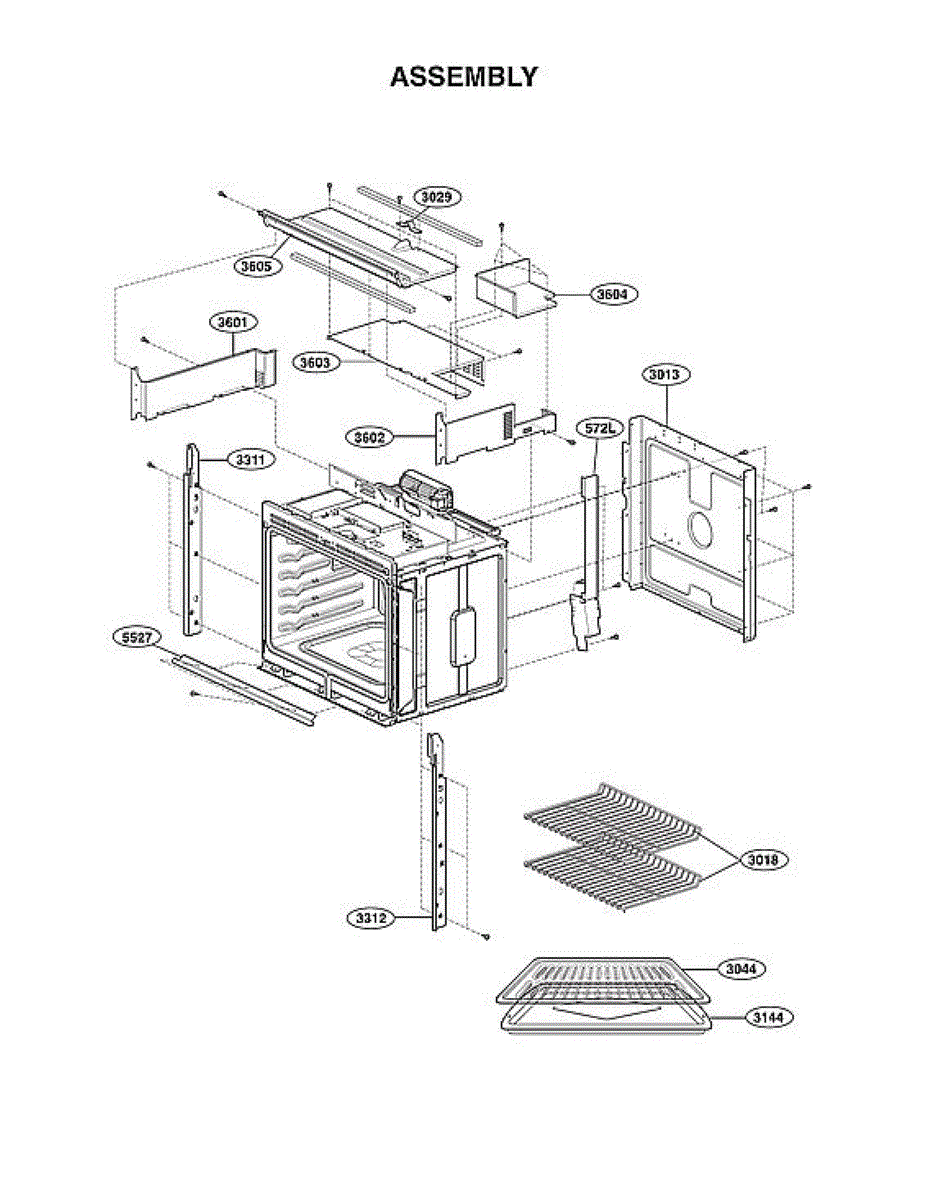

Parts for Lg LWS3063ST/02: Assembly Parts

This customized washer is a small hardware piece that secures fasteners and helps distribute load where screws or bolts attach to appliance components. It restores proper fit and reduces movement at the connection point. What it does:

• Provides a stable bearing surface for screws or bolts to prevent pull-through and material damage
• Helps keep fasteners tight and reduces vibration-related loosening or rattling
• Maintains correct spacing and alignment of panels or internal parts
• Can help form a seal on fasteners in locations prone to vibration or minor movement

• Disconnect power and water (if applicable) before servicing the appliance
• Retain or replace the associated fastener; small parts can be easily lost—work on a clean surface

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This PCB assembly is the appliance's main control board that manages cycle commands, sensor signals and user inputs to keep the appliance operating correctly. Replacing a faulty board restores control and communication functions. What it does:

• Receives inputs from the control panel and sends commands to motors, valves and heaters
• Monitors sensor signals and timing functions to coordinate cycles
• Stops operation or causes errors if the board fails or loses power
• Common symptom link: unresponsive controls, error codes, or appliance that won't start

• One PCB assembly (control board)

• Disconnect power before starting and verify power is removed to avoid shock
• Handle the board carefully and avoid touching components or connectors; observe electrostatic discharge (ESD) precautions
• Inspect connectors and wiring for damage and ensure secure connections during reassembly

This control board assembly directs power and communication to key components, interpreting inputs and sensor signals so the appliance runs the correct functions and cycles. Replaces a failed electronics module to restore reliable operation.

• Distributes power and control signals to major components per the unit's programmed logic
• Interfaces with sensors and the user controls to execute selected functions
• Coordinates cycle timing and safety monitoring
• Common signs of failure: no power or won't start, unresponsive controls/display, intermittent operation, error codes, or unexpected shutdowns

• Disconnect power to the appliance before servicing
• Handle the board by the edges; use ESD protection to avoid static damage
• Photograph and label connectors, then transfer them one at a time to the new board
• Secure wiring to avoid pinching; follow the unit's tech sheet or service manual

The Screw is an OEM component specifically designed for LG ranges. It plays an important mounting and fastening role by securely attaching internal components together.

The screws utilized within the range cabinet ensure sturdy construction and reliable mechanical cohesion. They allow for simple assembly and proper alignment of inner parts.

Causes of bad screws can include wear and tear over time, or damage from overtightening leading to stripped threads or heads.

Symptoms of bad screws include:

• Loose, detached, or misaligned inner parts
• Hardware that does not fit or interface as designed
• Unintended noises or movement during the operation

This OEM LG replacement part is also compatible with Sears/Kenmore and some GE ranges utilizing similar fasteners. Replacement ensures the range remains mechanically sound.


The Main PCB Assembly is an OEM component specifically designed for LG electric wall ovens. Housed within the control housing, this circuit board directs all critical cooking functions from bake and broil to timers and temperature displays. Precise programming maintains consistent results.

Symptoms of a bad main PCB include:

• Inability to select or adjust oven temperature settings
• Erratic cooking performance levels
• Intermittent alarm tones or display backlights
• Error codes displayed on the screen

Causes of a bad main PCB include liquid damage, loose connections over time, or deterioration of integrated electronic components. Without proper control, the oven cannot regulate heat for safe, reliable cooking.

This LG OEM replacement ensures dependable operation. Compatible also with select Kenmore wall ovens, it provides a direct fit while restoring precision presets. Proper installation protects future use through smooth, uninterrupted control of vital systems. Seamless replacement offers continued convenience.

Restore proper operation with this main control board. As the refrigerator's power PCB, it distributes power and coordinates the compressor, fans, defrost, and other systems so temperatures stay consistent and core functions work as designed.

• Manages power to the compressor, evaporator/condenser fans, and defrost system
• Processes inputs from temperature sensors and switches to control cooling cycles
• Supplies power and communication to other controls and components
• Failure may present as: unit won't run or is dead, not cooling, fans or lights not working, intermittent operation, clicking/chattering, or error codes

• Disconnect power to the refrigerator before servicing to avoid shock
• Handle the PCB by the edges and use ESD protection
• Photograph wiring and transfer connectors one at a time to matching terminals
• Location varies by model; ensure connectors are fully seated and covers reinstalled before restoring power

Replacement window glass that restores a clear viewing area in the appliance door and helps maintain a clean, sealed surface. Ideal for replacing cracked, chipped, or cloudy glass to improve visibility and safety. What it does:

• Provides a transparent viewing window so you can monitor cycles without opening the door.
• Replaces cracked, chipped, or fogged glass to restore appearance and function.
• Serves as the door's viewing surface and works with the door assembly and trim.
• Inspect surrounding gaskets, trim, and fasteners when replacing the glass to ensure a proper fit.

• Disconnect power (and water, if applicable) before attempting any repair.
• Wear cut-resistant gloves and eye protection when handling or removing glass.
• Door disassembly and removal of trim or retaining clips is commonly required.
• If the glass is shattered, remove broken pieces carefully and dispose of them per local regulations.

This inner cover is the OEM replacement panel that protects internal components and wiring inside the appliance while restoring the unit's finished interior appearance. It helps block debris, moisture, and accidental contact with internal parts. What it does:

• Shields internal components and wiring from debris and accidental contact
• Restores the appliance's interior finish and fit where an inner panel was cracked or missing
• Helps reduce rattling or noise caused by loose or damaged interior panels
• Prevents moisture or small objects from reaching control areas or openings

• Disconnect power (and water, if applicable) before starting any repair.
• Removing the outer cabinet or adjacent trim may be required; retain all fasteners.
• Use appropriate hand tools and avoid over-tightening to prevent damage to clips or mounting points.

This hinge assembly secures and guides the appliance door so it opens and closes smoothly and stays aligned. Replace a worn or damaged hinge to restore proper door movement and sealing. What it does:

• Supports the door pivot and maintains proper door alignment
• Helps the door close evenly to preserve internal temperature control
• Reduces door sag, rubbing, or scraping against the cabinet
• Stops or reduces creaks, grinding, or other hinge-related noises

• Unplug the appliance or disconnect power before starting any repairs.
• Support the door while removing and installing the hinge to prevent dropping or damage.
• Use appropriate hand protection and tools; follow OEM torque and alignment guidance if available.

This vacuum fluorescent display (VFD) is the control-panel display module that shows time, status icons and cycle information so you can read settings and monitor operation. Restores clear numeric/character readout and indicators. What it does:

• Displays time, cycle status, and function icons on the appliance control panel
• Illuminates characters and icons so settings and messages are visible
• Replaces a display that is dim, flickering, blank, or showing garbled/missing characters
• Works with the control-panel circuit to communicate user selections to the appliance electronics

• Disconnect power to the appliance before starting any repair to prevent shock or damage
• Handle the display/module carefully and avoid touching connector pins or display surface
• Installation typically requires removing the control panel to access the display connector; inspect connectors for proper seating after installation

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

This replacement shelf assembly restores a sturdy, level storage surface inside your refrigerator, helping you organize items and regain lost space when a shelf is cracked, missing, or no longer sits properly in its supports.

• Supports food containers and keeps items level within the compartment
• Slides into the side supports/rails for stable placement
• Replace if cracked, bowed, or unable to lock into position
• Common symptoms: broken or missing shelf, uneven seating, reduced storage capacity

• Remove items from the shelf area; lift out the damaged shelf
• Insert the new shelf into the side slots/rails and slide back until fully seated
• Ensure the shelf is level and locked into place before reloading items
• Handle edges carefully; avoid impact to prevent damage

The Heating Element is an OEM part for LG electric ranges. It serves a critical cooking function by using electric current to generate heat energy that cooks food inside the oven cavity. The heating element is constructed from flame-resistant and durable materials precisely designed to withstand high temperatures in a clean efficient manner.

Causes of a bad heating element can include mineral deposits on coils, cracks from overheating, or general wear over extended use.

Replacing a faulty element restores dependable oven performance.

Symptoms of a bad element include:

• Inefficient or uneven cooking temperatures
• Longer baking and cooking times
• Cracking or sagging coils affecting heat output
• Potential safety issues if damage exposes live wires

This element also fits the heating designs used in Jenn-Air and Frigidaire electric ovens.

This metal tray is a direct-replacement interior tray that supports cookware and catches drips to keep the appliance cavity clean and protect internal components. It restores a flat, stable surface for consistent cooking and storage. What it does:

• Provides a sturdy, heat-resistant surface for pans, dishes, or food items
• Catches spills and drips to help keep the appliance interior cleaner
• Replaces bent, dented, or corroded trays that no longer sit flat
• Helps maintain even airflow and stable placement of cookware during use

• One replacement metal tray

• Unplug the appliance or switch off power before inspecting or replacing parts
• Allow the appliance and tray to cool completely to avoid burns
• Handle edges carefully; metal parts can have sharp edges
• Install per the appliance's service manual or parts diagram; do not operate if the tray is damaged

This AC synchronous motor assembly drives the appliance's mechanical system for reliable, low-speed rotation where precise timing is required. Replaces a worn or failed motor to restore normal operation and reduce intermittent cycling or stopped movement. What it does

• Converts electrical input into consistent, timed rotational motion for dampers, valves, or other small-drive mechanisms.
• Helps resolve symptoms such as no movement, irregular or intermittent motion, or buzzing from the motor area.
• Designed for applications requiring accurate speed control and quiet operation.
• Matches OEM fit and function for direct replacement when the original synchronous motor has failed.

• 1 motor assembly

• Disconnect power before attempting service to avoid shock or injury.
• Inspect mounting, connectors, and wiring harness for damage; replace any worn fasteners or harness clips.
• Handle the motor and encoder carefully to avoid contamination or damage.

This metal tray replaces a damaged or missing oven drip tray so you can catch spills and roast or bake without mess. It restores a stable cooking surface and helps protect the oven floor from food and grease. What it does

• Catches drips, crumbs and grease to make cleanup faster and prevent baked-on messes
• Provides a flat, stable surface for pans and bakeware
• Helps maintain even airflow around foods for consistent cooking results
• Replaces trays that are bent, corroded, pierced or missing

• One metal oven/drip tray

• Allow the appliance to cool completely and unplug or disconnect power before installing
• Slide the tray into the oven's lower rack supports until it rests securely
• Handle with care—edges may be sharp; use gloves if needed
• Clean before first use per the appliance owner's cleaning instructions

This grille is the vent trim that covers and protects the appliance's front vent area while maintaining a finished appearance. It helps direct airflow and keeps dust and debris out of internal components. What it does:

• Covers the appliance vent opening to provide a finished look and protect internal parts
• Helps direct airflow from the vent for proper ventilation
• Prevents large debris from entering the appliance
• Replaces cracked, broken, warped, or missing vent trim that can rattle or look unsightly

• Disconnect power to the appliance before beginning any service
• Install using the existing tabs/screws; do not force or bend mounting tabs
• Use basic hand tools; inspect surrounding seals and clips and replace if damaged

This replacement front lower grille restores the dryer's finished appearance and protects the vent opening from debris. Fits the factory opening and keeps airflow clear while helping maintain the appliance's exterior look. What it does:

• Covers and protects the dryer's lower front/vent opening from lint and objects
• Directs airflow through the proper vent path to help maintain dryer performance
• Replaces cracked, broken or visibly worn trim that affects appearance
• Matches factory fit and mounting points for a secure installation

• One front lower grille/trim piece

• Remove power (unplug or disconnect breaker) before starting work
• Minor disassembly of the lower front panel may be required; keep fasteners organized
• Handle trim carefully to avoid scratching painted surfaces; use protective tape if needed

This small, board-mounted tactile push-button switch is used on the control panel. It registers a momentary press so the control board can accept your selection. Replacing a worn switch restores reliable button response and consistent operation.

• Mounts to the user interface board and provides momentary contact when a button is pressed
• Sends a low-voltage signal to the control, enabling cycle or option selection
• Typical failure symptoms: unresponsive or intermittent buttons, needing extra force to register, stuck/always-on input, or unintended beeps/changes
• Helps restore consistent user-interface input when an individual button switch has failed

• Disconnect power to the appliance before servicing; shut off gas/water if applicable
• Access the control panel to reach the user interface board
• This is a board-level repair; note switch orientation. Replacement may require desoldering/soldering per OEM procedure
• Use ESD precautions and avoid overheating PCB pads; test button function before reassembly

The Thermistor is an OEM replacement part for LG gas ranges. It serves as a highly sensitive temperature sensor mounted inside the oven cavity.

Symptoms of a bad thermistor include:

• Inability to select certain cooking modes like bake or convection that involve temperature control
• Fluctuating or inaccurate temperature readouts on oven displays
• Irregular cooking outcomes like hot/cold spots inside the oven
• Repeated error codes regarding temperature sensing issues

Causes can be attributed to prolonged exposures to heat and intermittent combustion byproducts inside the oven. Over a decade of use, these conditions may degrade the thermal and electrical properties of sensor components.

This genuine LG replacement thermistor installs effortlessly. Installing a new thermistor restores temperature monitoring required for reliable gas oven performance.

The Thermostat is an OEM part for LG wall ovens. It is a temperature-sensitive cut-off switch located near the oven's heating elements that monitors interior temperatures and prevents overheating within the appliance.

Causes of a bad safety thermostat can be related to prolonged exposure to excessive heat inside the oven cavity, defects in the thermostat's microchip or coil components, or damage from corrosion or physical impact over time.

Symptoms of a failed hi-limit thermostat include:

• The oven's main thermostat clicking repeatedly but no temperature rise inside the cavity
• Unexpected shutdowns of the oven during heating cycles
• Smoking or burning smells coming from the oven area
• Tripped circuit breakers obstructing normal oven operation

This OEM LG part is also compatible with some Kenmore models.

This fan assembly replaces a worn or failed fan motor and blade to restore normal airflow and cooling performance. Fits units that use the listed part number to move air where needed for efficient operation. What it does:

• Spins to circulate air across coils or through the appliance for proper temperature control
• Helps remove heat from condenser or circulate cold air from evaporator depending on application
• Commonly needed when the fan is noisy, intermittently stops, or airflow is weak
• Supports overall system efficiency by maintaining designed airflow pathways

• Disconnect power before beginning any repair to avoid shock or injury
• Handle the blade and motor carefully; avoid bending the blade or damaging electrical connectors
• Use basic hand tools; mounting hardware may be reused if in good condition
• After installation, verify the fan runs smoothly and does not contact surrounding components

This replacement ring secures or positions a nearby appliance component to restore proper alignment and stable operation. It's a small but important part that helps reduce excess movement and related wear. What it does:

• Holds or locates a mating component to prevent unwanted movement or misalignment
• Helps reduce vibration and knocking noises caused by loose parts
• Restores correct spacing that maintains smooth mechanical operation
• Can prevent accelerated wear on adjacent parts when functioning properly

• Disconnect power (and water supply if applicable) before beginning any repair
• Access location may require removing panels or trim; keep fasteners organized
• Inspect surrounding parts for wear or damage and replace if needed

Replacement fan motor assembly that restores airflow and ventilation inside the appliance. Swapping a worn or failed fan reduces noise and helps maintain proper temperature and component cooling by restoring consistent air movement. What it does:

• Circulates air to maintain proper internal airflow and ventilation.
• Reduces or eliminates abnormal noises such as grinding, rattling, or squealing from a failing fan.
• Helps prevent component overheating by moving air across electronics or cooling surfaces.
• Can resolve symptoms like weak or no airflow and inconsistent cooling/venting performance.

• Disconnect power (unplug or shut off breaker) before accessing the appliance.
• Installation typically requires removing access panels; keep track of screws and mounting hardware.
• Handle electrical connectors carefully and reconnect wires to the original terminals; inspect harnesses for damage.
• After installation, restore power and verify the fan runs smoothly and quietly before reassembling all panels.

This blower motor housing mounts and aligns the microwave's cooling/vent fan motor and wheel to keep airflow moving through the oven and vent path. Replacing a damaged housing can restore proper airflow and reduce vibration and noise. What it does:

• Holds the blower motor and fan wheel in the correct position
• Directs cooling and exhaust air across components and out the vent path
• Maintains alignment to prevent fan wheel rubbing and vibration
• Typical symptoms: loud rattling/scraping near the vent area, weak venting, unit running hot or shutting off during use, visible cracks/warping of the housing

• 1 motor housing

• Disconnect power; for over-the-range units, remove the microwave from the wall to access the blower compartment
• Discharge the high-voltage capacitor before servicing internal components
• Transfer the blower motor and fan wheel to the new housing; match the original vent orientation
• Use care around sharp metal edges; retain and reuse the original mounting hardware

This insulator cushions and isolates appliance components to reduce vibration, prevent metal-to-metal contact, and protect parts from wear. It helps stop rattling and keeps mounted components seated properly. What it does:

• Cushions mounted components to reduce vibration and noise
• Provides a non-conductive barrier to help prevent unwanted contact
• Helps maintain proper alignment of panels or assemblies
• Can prevent wear where parts would otherwise rub or chafe

• Disconnect power to the appliance before starting any repair
• Typically installs with simple push-fit or screw mounting; keep existing fasteners if re-using

This terminal block connects the appliance power cord to the internal wiring, providing a secure, insulated point for line voltage. Replacing a worn or damaged terminal block restores a stable electrical connection and reduces arcing risk. What it does

• Secures incoming power leads and routes line voltage to the appliance wiring
• Prevents loose or intermittent power caused by cracked or burned terminals
• Helps stop visible sparking or overheating at the cord connection
• Supports strain relief so the power cord stays positioned correctly

• Disconnect power at the breaker or unplug the appliance before starting work
• Verify power is off with a meter; handle live wiring only
• Note wire placement and orientation before removal; transfer wires to the new block in the same order
• Tighten terminal screws securely and restore any strain-relief hardware

The Heating Element is an OEM part for LG ranges. It is responsible for providing heat to the oven cavity, allowing for proper cooking and baking.

The heating element is exposed to high temperatures with each use and over time can become brittle or defective. Causes of a bad heating element can include cracks in the coils, burn marks, or faulty electrical connections.

Symptoms of a bad heating element include:

• The oven not heating up or heating unevenly
• Diminished cooking power
• Burning or burning smell from the oven
• Tripped circuit breaker or blown fuse

Replace yours today with this genuine LG heating element and restore your oven's full cooking capabilities. This OEM LG part is also compatible with Sears/Kenmore.

This heater sheath is the protective cover that surrounds the dryer's heating element, helping protect wiring and other components from direct heat. It lets the heater run safely and reduces the chance of element contact with other parts. What it does:

• Covers and shields the heating element from contact with the dryer drum and internal components
• Helps maintain proper airflow around the heater assembly
• Can prevent arcing or shorting caused by a damaged or mispositioned element
• Commonly replaced when the sheath is cracked, deformed, or shows heat damage

• One heater sheath

• Disconnect power before starting — this part is part of the dryer's high-temperature electrical system
• Access usually requires removing the dryer front panel or drum per the model's service instructions
• Inspect the heating element, thermostats and wiring while the unit is open; replace any damaged components
• Use proper fasteners and routing to keep the sheath positioned so it does not contact the drum

This vent directs and channels airflow for proper ventilation in the appliance, restoring reliable exhaust or intake flow and helping prevent overheating or airflow-related performance issues. What it does:

• Channels exhaust or intake air where the appliance design requires
• Restores proper airflow to reduce overheating and improve performance
• Replaces cracked, deformed, or clogged vents that cause restricted airflow
• Can reduce unusual air-related noises caused by damaged venting

• One vent assembly

• Disconnect power (and water if applicable) before beginning any service
• Inspect surrounding ducting and seals; replace damaged gaskets or clamps for best results
• Secure the vent with the original fasteners; do not force or overtighten plastic tabs
