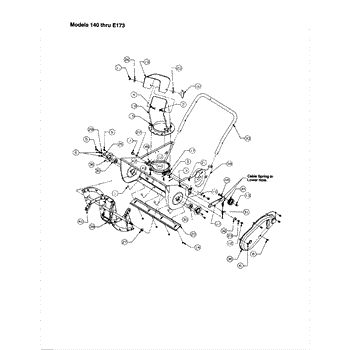

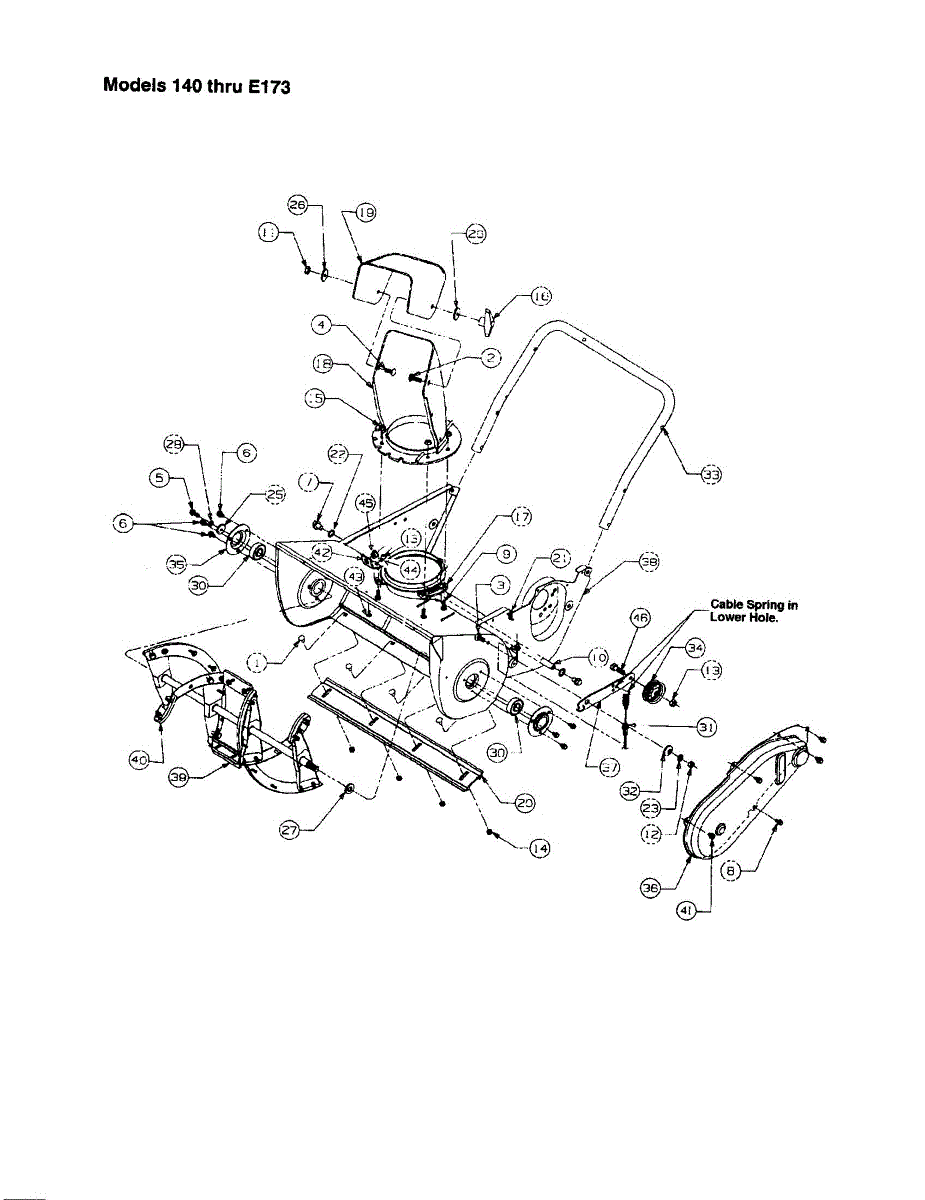

Parts for Mtd E152: Auger Assembly Comp. Parts

This carriage bolt is a self-locking bolt designed to be used in an unthreaded square or round hole. These bolts are used in outdoor lawn and garden equipment due to their ability to handle heavy weight loads.Carriage bolts are often used to join lawnmower handles to the base of the mower. Over time, the vibration of the lawnmower may cause the bolt to become loose. During routine maintenance, if the bolt is loose, use a wrench to tighten the nut holding the bolt in place. If the bolt is missing, this carriage bolt replacement can be installed. Push the bolt through the hole; if the fit is snug, it may need to be lightly tapped. Once the bolt is through the other side, thread a nut on the bolt. Tighten the nut with a wrench.This is a genuine OEM part sourced directly from the manufacturer. It is sold as an individual unit and does not come with the nut. This carriage bolt is designed for lawnmowers, snowblowers, and other outdoor lawn and garden equipment manufactured by Bolens, Craftsman, Cub Cadet, Huskey, Troy-Bilt, Turf Pro, MTD, Ryobi, and Mastercut.

This carriage bolt is a fastener with a flat tip and a round head with threading along the shank. Also known as coach bolts and plow bolts, the item can be used with many types of lawn and garden equipment. This is a 5/16 carriage bolt that resists turning after the bolt has been tightened. Wear and tear or impact can cause damage to a carriage bolt and lead to the need to replace them.Removing a carriage bolt requires twisting the nut loose from the end of the bolt and then hitting the nut with a hammer. This will begin to move the shoulder out of the lawn equipment. Continue the process until the bolt is loose enough to remove. Installing a new carriage bolt simply requires sliding the bolt into the hole, adding the nut, and tightening things up.This carriage bolt is designed for use with Craftsman, MasterCut, Toro, Yard-Man, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines lawn and garden equipment. It can be used with lawnmowers, chainsaws, snowblowers, edgers, and tillers. This is a genuine OEM product sourced directly from the manufacturer as an individual component.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

A star knob connects the upper and lower handles on an outdoor appliance, and if removed, the upper and lower handles are quick-released. This part is made of black heavy-duty black plastic, and the threads are made of steel. Over time, the threading can become worn out, making the connection loose, and causing the two handles to no longer stay in place. Star knobs are a straightforward repair that can be done in a matter of minutes. Just unscrew the original, damaged knob and screw in the new knob. The knob is designed to be unscrewed by hand, so there is no need for additional tools to make this repair. This genuine OEM replacement part is designed for a variety of outdoor appliances, including lawnmowers, edgers, chippers, tractors, trimmers, and cultivators. This star knob is compatible with Yard Machines, Yard-Man, Cub Cadet, Bolens, Craftsmen, and Ryobi products. This part ships individually.

The shave plate, also called the scraper bar, is an important but often overlooked part of a snowblower. This thin metal strip sits at the bottom of the auger housing against the ground and gathers the snow the auger will expel through the chute. Made of hard plastic, the shave plate is the only part of the snowblower that actually touches the snow-covered ground without rolling. As durable as the shave plate is manufactured to be, it constantly comes into contact with unseen objects that pound, slice, and pit it. Eventually, the shave blade has to be replaced. To replace the blade, simply invert the blower, unscrew the old blade, attach the new blade, and put the blower right side up again. As long as the user is replacing the shave plate and has the machine upside down, this is an ideal time to check for damage to the wheels, the auger blades, driveshaft, and the condition of the shear pin. If this replacement is taking place in preparation for the coming winter, it might be a good time to replace the oil and oil filter as well. Be sure to use genuine OEM replacement parts that perfectly match the factory originals. This blade is compatible with snowblowers made by Yard-Man, Bolens, Yard Machines, Troy-Bilt, Craftsman, Ryobi, Cub Cadet, Huskee, Montgomery Wards, and Ryobi.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

The sealed ball bearings are used as a means to limit the amount of friction that occurs between a fixed part of the assembly and a rotating shaft. They can be used for numerous applications in lawn and garden equipment. The ball bearings are used in various locations of different types of machines, so the issues that could crop up will vary. Typically, bad ball bearings will create knocking sounds in the engine, or parts in the engine could be difficult to turn. When the ball bearings are no longer sealed or not functioning properly, they should be replaced. This genuine OEM replacement ball bearing is sold individually. The ball bearing works with many models of lawn mowers, snowblowers, edgers, wood chippers, and tillers. Compatible brands include Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. Buyers should always ensure they are buying the correct parts for their make and model.

This is a clutch cable with a special design to ensure it fits a variety of snowblowers from different manufacturers. The clutch cable is the component on the blower that connects the control level with the clutch in the drive system so the snowblower can operate properly. Clutch cables can be damaged in various ways but the most common is for them to entirely break. If this occurs, the wheels on the snowblower will not move across the lawn. The clutch cable will need to be replaced to continue using the tool.Replacing the clutch cable on the snowblower will require the use of a 7/16 inch socket and a 3/8 inch socket. The first step is to disconnect the spark plug wire and ensure the equipment is in the off position. Next, the cover can be removed from the snowblower to easily access the clutch cable. Remove the old one and replace it with a new part.It is an authentic OEM replacement component that is sourced directly from the manufacturer and sold individually. The clutch cable is designed to be used in snowblowers manufactured by Yard-Man, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Yard Machines, and MTD.

This hex screw is a genuine MTD part, sold individually. A hex screw can be used as a replacement part for outdoor appliances including lawn mowers, snowblowers, leaf blowers, and wood chippers. This part is a fastener.The hex screw in a outdoor appliance might be easily lost or damaged at some point within its typical lifespan. If the screw has been lost, it should be immediately replaced by this genuine OEM replacement part; additionally, if the screw has been punctured, dented, cracked, warped, or eroded, it should be immediately replaced.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Husky, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.
