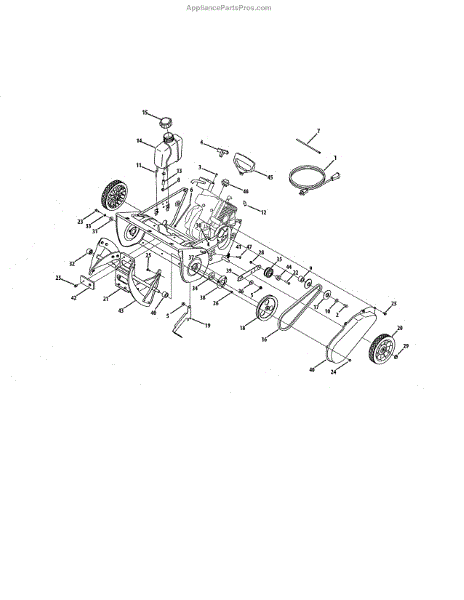

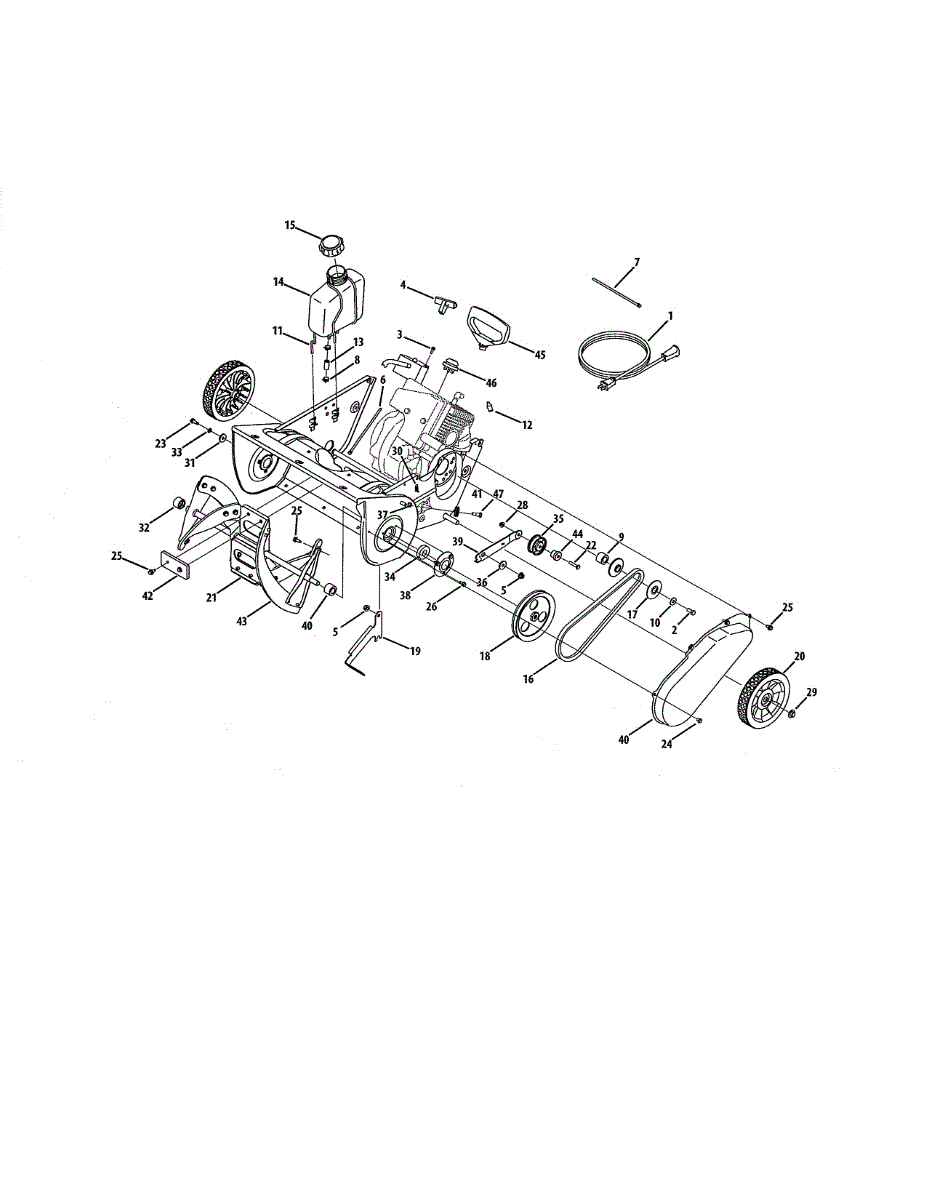

Parts for Mtd 31A-242-762: Auger & Drive System Parts

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

The drive V-belt, manufactured by Craftsman, is used in one- and two-stage snow blowers as well as tillers. This is a drive belt that connects the engine to the auger of the tiller or snowblower via a pulley at either end. This turns the blades of the tiller or the auger blades of the blower to expel snow. As a flexible, hardened rubber part connecting other moving parts, a V-belt is considered “replaceable,” meaning that users should expect to have to replace this part during normal use of the equipment. Signs that a drive V-belt may be going bad are a squealing sound when the blower's auger or the tiller's blades are first engaged, or if the auger is slow to engage and loses power during use. To replace the V-belt, the equipment must be secured and the spark plug caps removed. Tilt the device to reveal the location of the belt. It must detached from the engine pulley and the transmission pulley. When replacing the V-belt, before tightening the pulley, make sure all moving parts are properly aligned. This genuine OEM part is compatible with machines sold by MTD, Yard Man, Craftsman, and Yard Machine.

This is a genuine replacement belt designed to work with multiple types of snowblowers. It is sometimes called a wheel drive belt or a V-belt. The belt is installed on pulleys that allow the transfer of motive power from the engine to the wheels and the auger, allowing the snowblower to move forward, as well as break up and throw snow. These belts are made from high-quality rubber, but they will suffer from wear and tear over time. Through normal use, exposure to extreme temperatures, and over time, the rubber can crack, and eventually, the belt will break. If the snowblower's wheels will not turn, it is most likely that the belt needs to be replaced. Replacing the belt is simple, but will require accessing the pulleys. Remove the old belt and then install the new one according to the owner's manual. Note that this is an OEM replacement part and is sold individually. It is designed for Craftsman and MTD snowblowers, as well as models from Ryobi, Huskee, Cub Cadet, Yard Machines, Yard-Man, and Troy-Bilt.

This wheel assembly is a durable replacement part created for use with snowblowers, lawnmowers, and other yard equipment. The wheel is the component on the machine that makes it easy for it to be transported and moved around a location. On lawnmowers, it helps with cutting height adjustment to ensure the grass is cut to the right length. It comes with all the components needed to replace the wheel with the exception of required tools.Sometimes wheels can become damaged or will malfunction and require replacement. A visual inspection of each of the wheels will give information about whether a replacement is required. If there is lots of damage or the wheel is broken, it has to be replaced before the lawn tool can be used. The old wheel will need to be removed before the other wheel can be placed. This may require the use of a socket set, wrench set, and screwdriver.This is a genuine OEM replacement part sourced directly from the manufacturer. It's made of durable plastic and is sold individually. The wheel assembly is compatible with lawnmowers, snowblowers, and tillers by MTD, Craftsman, Huskee, Yard-Man, Yard Machines, Bolens, and Troy-Bilt.

This is a snowblower auger assembly that serves as a replacement for broken or damaged augers. The auger features rotating blades that collect snow and send it to the snowblower's chute. If the auger is not working properly, the machine will not work effectively and may have trouble throwing snow. It could also be dangerous if the auger were to break when the machine is in use.The auger may need to be replaced for any number of reasons. It could become damaged or broken, or it may have blades that are worn out over many seasons of use. Replacement will help to ensure the snowblower returns to its normal capabilities. To replace the auger, a 1/2-inch socket, 3/8-inch socket, 7/8-inch socket, and a 9/16-inch socket will be needed.This auger fits many models for MTD, Yard-Man, Husky, Yard Machines, and Troy-Bilt snowblowers. The auger is sold individually. This is a genuine OEM replacement part sourced from the manufacturer.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This genuine OEM replacement part is a push cap designed for snowblower, tiller, and edger wheel assemblies. A push cap is a special type of nut, or fastener, that helps to hold unthreaded shafts in place. Although small, this push cap helps to secure the wheel to the axle. Push caps are most commonly damaged if the operator uses their appliance in rough terrain. If damaged, it can fall off, causing the wheel to also fall off. Replacing push caps is an easy repair as they attach to the outside of the wheel assembly. The only hardware required to make this repair is a nut driver. If you do not have a nut driver, a pair of pliers can also be used to attach the new push cap. This part is a high-quality replacement part meant for Yard Man, Husky, Ryobi, Yard Machines, Troy-Bilt, MTD, Bolens, and Cub Cadet appliances. It is sourced direct from its original manufacturer and ships individually.

This is an idler pulley assembly for a snowblower or tiller. The idler pulley works together with other pulleys to drive the belt system in an engine. It regulates the belts connecting to the crankshaft to produce movement in various engine accessories. This is a genuine OEM part and is sold individually. This part is compatible with Craftsman, Cub Cadet, Huskee, Troy-Bilt, and Yard Machines. Over time, the pulley components wear down and begin to slip. Damaged bearing devices can also cause wear on the pulley, causing the engine to fail. To replace an idler pulley in a snowblower, remove the ignition key and disconnect the spark plug. Using a socket wrench, remove the mounting bolts securing the belt cover. If required, loosen the tension. Use a ?-inch socket to remove the lower bolts. Pull off the cover and use the wrench to remove the bolt from the pulley. Remove the old part and transfer the bushing into the new part. Position the new pulley, thread the bolt, and tighten. Per model, either realign the auger drive linkage on the bolt and slide on the push nut to secure, or realign and reset the tension spring. Then, recover and reattach.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

This rubber pad is a replacement part used on snowblowers. The pad works in conjunction with the auger assembly and moves the snow through the machine and out of the chute. It is held in place with a hex washer screw. The rubber pad undergoes a substantial amount of stress when it is being used. Owners will want to check it for wear and tear. This should be done at least once per season. If there are signs of damage or if the pad has broken, it should be replaced right away. The replacement is fast and simple. It is advised to replace all of the rubber components in the auger at the same time. The genuine OEM replacement rubber pad for snowblowers is sold individually. The compatible brands include Craftsman, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Bolens, Yard-Man.

The snowblower auger paddle is designed for use with various single-stage 21 MTD snow throwers and blowers. This part may also be referred to as the spiral crescent. This paddle is attached to the auger, which rotates when the engine is started. As the auger rotates, the paddle will pick up and throw the snow out of the way. This part may get damaged by debris or some type of accident, or it can wear down over time. Replace a broken or worn out snowblower paddle with a genuine OEM replacement paddle. This is an OEM replacement part from MTD that fits various models of snowblowers. It can be used with compatible models from Yard Machines, Yard-Man, Troy-Bilt, Husky, Ryobi, Bolens, and MTD machines. There are over 150 models in total that this paddle can work with. It is made out of durable rubber and comes sold individually. There are two screws at each end required for mounting, which are sold separately.
