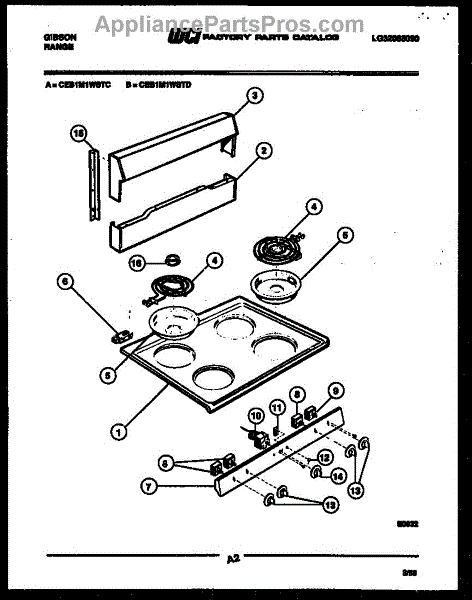

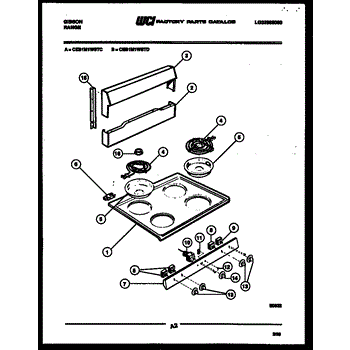

Parts for Frigidaire CEB1M1WSTD: 02 - Backguard And Cooktop Parts

This part has been discontinued by the manufacturer and is no longer available.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a vital component that provides the heat necessary for cooking. This element is designed to heat up quickly and maintain a consistent temperature, offering precise control to accommodate various cooking needs, from simmering sauces to boiling water. This element measures 8 inches.

Symptoms of a bad Coil Surface Element include:

• Element not heating up at all or only heating partially
• Inconsistent temperatures, making cooking unpredictable
• Visible damage or warping to the element
• Electrical sparking when turned on

Causes of a bad Coil Surface Element can include prolonged use leading to element burnout, a faulty connection between the element and the stove’s electrical source, or physical damage that disrupts the coil’s continuity.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Range Surface Element is an OEM replacement part for Frigidaire electric ranges. It is a crucial component that generates heat for cooking on the stovetop surface.

Symptoms of a bad range surface element include:

• Uneven or insufficient heating of cookware
• Element failing to heat up or taking an excessive amount of time to reach the desired temperature
• Visible signs of damage, such as cracks or warping on the element's surface
• Unusual smells or noises coming from the element during use

Causes of a bad surface element can range from electrical malfunctions to physical damage caused by impact or exposure to excessive heat over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Small Drip Pan is an OEM replacement part for Frigidaire ranges. The Frigidaire Small Drip Pan boasts a durable construction, made of high-quality materials to ensure long-lasting performance.

Over time, exposure to high heat, spills, and frequent cleaning can cause the drip pan to discolor, warp, or rust. A faulty drip pan can result in decreased efficiency and difficulty in maintaining a clean cooking area.

Symptoms of a bad Small Drip Pan include:

• Discoloration or rust
• Warping or misshaping
• Difficulty fitting properly beneath the burner
• Residual spills or drips reaching the burner area

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Large Chrome Drip Pan is an OEM replacement part for Frigidaire cooktops, designed to fit beneath the burner elements. It is responsible for providing a clean surface and maintain cleanliness. The drip pan catches spills and drips that occur during cooking, preventing them from reaching the interior of the stove where they can become burnt-on and difficult to clean. This large chrome drip pan measures approximately 8 inches in diameter.

Causes of a bad drip pan can include frequent exposure to high heat, spills, and regular cleaning, which can lead to discoloration, warping, or rust over time. When the drip pan becomes damaged or worn out, it may no longer effectively catch spills or reflect heat, affecting both cleanliness and cooking performance.

Symptoms of a bad part include:

• Visible signs of damage, wear, rust, or corrosion on the drip pan
• Uneven stove element
• Difficulty cleaning spills and grease accumulating on the pan
• Unsightly appearance of the stove
• Difficulty cleaning the stove surface

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

The Surface Unit Switch Kit is an OEM part for Frigidaire ranges. It controls the power and heat levels to the surface burners on the cooktop, allowing you to adjust the temperature for cooking. This kit typically includes the necessary components to replace a faulty switch and restore proper functionality to the burners.

Causes of a bad surface unit switch can include electrical malfunctions, wear and tear from regular use, or damage due to spills or impacts. A faulty switch can prevent the burner from heating correctly or at all.

Symptoms of a bad surface unit switch include:

• Burners not heating up or heating unevenly
• Inability to adjust the burner temperature
• Burners not turning on or off properly
• Sparks or electrical odors near the switch

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Surface Unit Switch Kit is an OEM part for Frigidaire ranges. It controls the power and heat levels to the surface burners on the cooktop, allowing you to adjust the temperature for cooking. This kit typically includes the necessary components to replace a faulty switch and restore proper functionality to the burners.

Causes of a bad surface unit switch can include electrical malfunctions, wear and tear from regular use, or damage due to spills or impacts. A faulty switch can prevent the burner from heating correctly or at all.

Symptoms of a bad surface unit switch include:

• Burners not heating up or heating unevenly
• Inability to adjust the burner temperature
• Burners not turning on or off properly
• Sparks or electrical odors near the switch

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This interior light lens replaces a cracked, yellowed, or missing diffuser to restore even fridge illumination and protect the bulb. It snaps or screws into the light housing to diffuse light across shelves. What it does:

• Diffuses interior light for even illumination and reduced glare.
• Protects the bulb from spills and physical contact.
• Restores appearance when the original lens is cracked, discolored, or broken.
• Helps maintain proper light distribution so foods are easier to see.

• Disconnect power before servicing the appliance to avoid electrical shock.
• Remove the existing lens by releasing clips or removing screws; handle glass/plastic carefully.
• Secure fasteners without over-tightening to avoid cracking.
