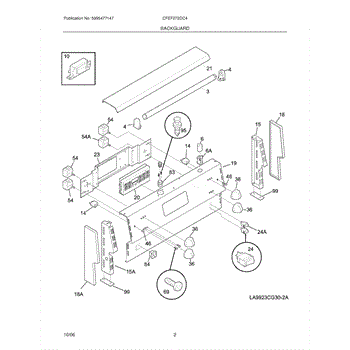

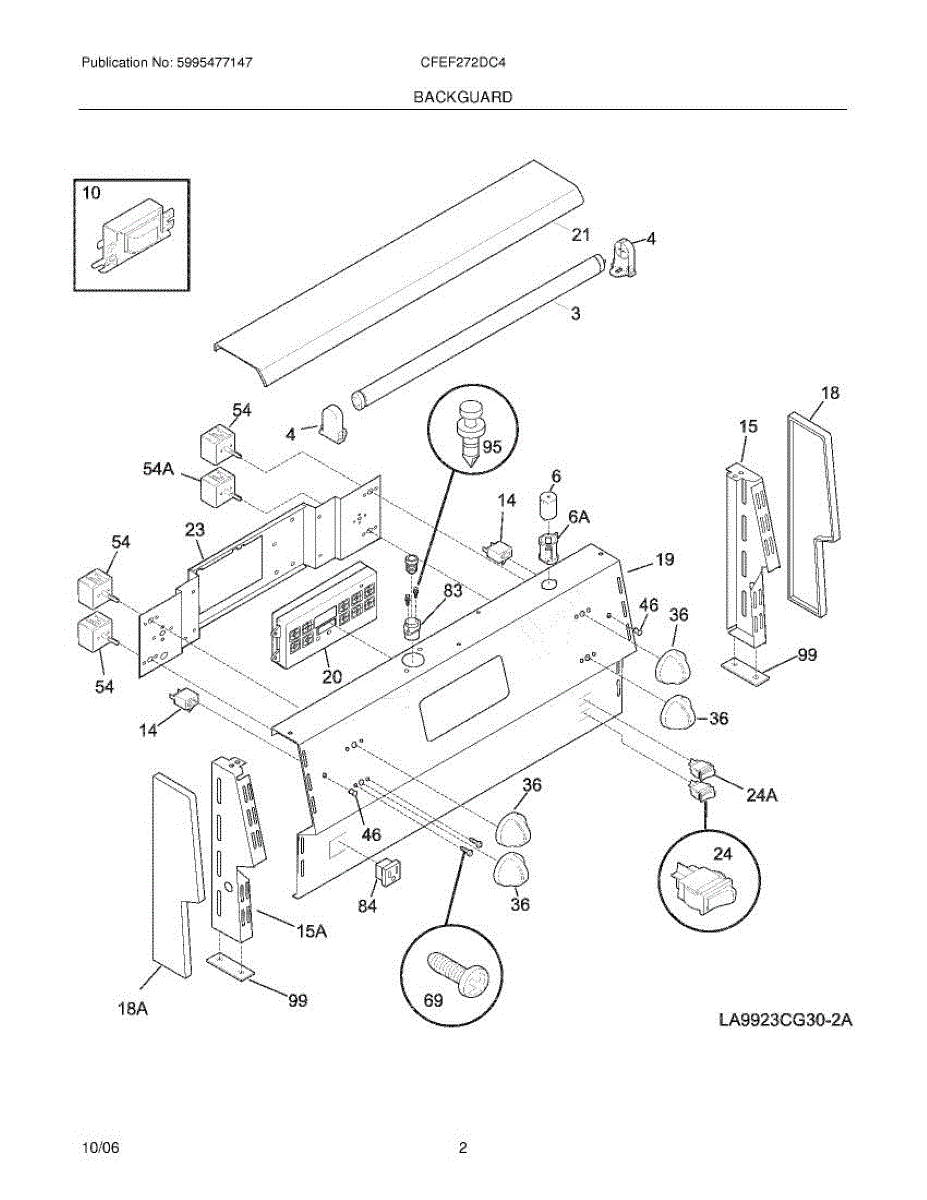

Parts for Frigidaire CFEF272DC4: 03 - Backguard Parts

Range won't power on or burners not heating? This terminal block receptacle restores electrical connections. Moderate DIY repair, typically 30-45 minutes.

Endcap for electric ranges. Covers and protects the end of a trim or component. Replace if cracked, broken, or missing to restore appearance.

Endcap for electric ranges. Covers and protects the end of a trim or component. Replace if cracked, broken, or missing to restore appearance.

The electronic control board manages all oven functions including temperature, timing, and cooking modes, typically mounted behind the control panel. Replace when the oven won't heat, displays error codes, or controls become unresponsive.

Decorative trim piece for electric ranges. Covers gaps or edges around the cooktop or control panel. Replace if cracked, chipped, discolored, or missing.

Mounting bracket that secures the clock/timer assembly to your range control panel. Replace if cracked, bent, or missing to properly support the timer unit.

This door-activated light switch controls the refrigerator interior lamp, turning it on when the door opens and off when the door closes for proper visibility and energy use. It replaces a failed or stuck door switch to restore normal light operation. What it does:

• Opens or closes the lamp circuit when the door is opened or closed.
• Replaces switches that fail to turn the interior light on.
• Fixes lights that stay on after the door is closed or never illuminate.
• Works with plunger-style door mechanisms that press the switch.

• One door-activated light switch

• Disconnect power to the appliance before servicing to avoid shock.
• Access typically requires removing the freezer/refrigerator light lens or door switch bezel.
• Test the switch for continuity before and after installation to ensure proper operation.

If your range burner won't heat, stays on constantly, or won't adjust temperature, the infinite switch likely failed. This part regulates heat levels.

Covers and protects your range's interior light bulb from spills and debris. Replace when cracked, discolored, or missing to restore proper lighting.

A push-button switch that restores user control functions by completing or breaking electrical circuits. Replaces a worn or failed control switch to help restore normal operation and user input response. What it does:

• Acts as the user-operated control input to start or stop a function when pressed
• Opens or closes the electrical circuit that enables the associated control or feature
• Common symptom: unresponsive controls or functions that do not start when buttons are pressed
• May cause intermittent operation or no response if contacts are worn or corroded

• One replacement push-button switch

• Disconnect power to the appliance before attempting any service
• Use appropriate tools and basic electrical safety; avoid bending terminals or forcing the new part into place

Burner not heating or won't turn on? This electric range control switch restores power to stovetop elements. Straightforward DIY repair.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Adhesive overlay that restores faded or damaged button labels on your oven control panel. Replaces worn, bubbled, or peeling faceplates.
