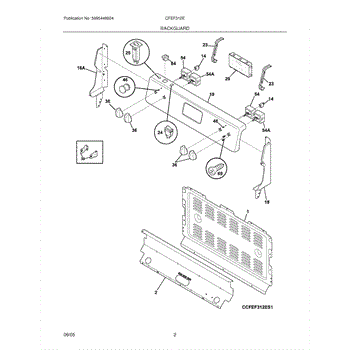

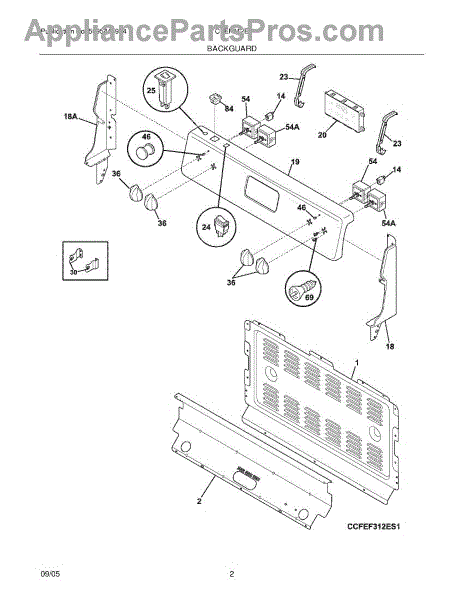

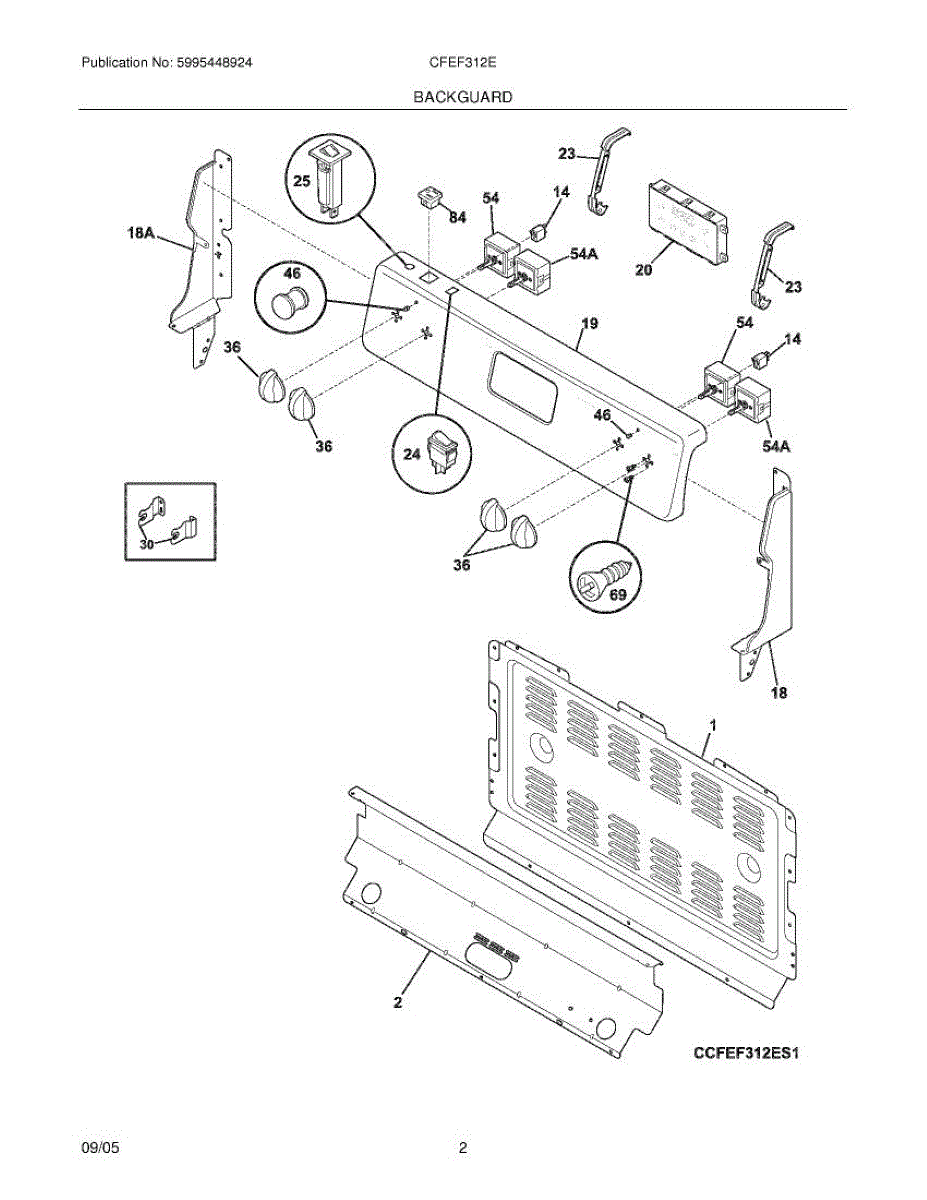

Parts for Frigidaire CFEF312EQ1: 03 - Backguard Parts

The Indicator Light is an OEM part for Frigidaire ranges. This light is designed to signal when the range or oven is in operation, providing a visual cue for safety and usability. It typically illuminates when the burners or oven are on, ensuring users are aware of active heating elements.

Causes of a bad indicator light can include electrical malfunctions, wear and tear over time, or damage from power surges or excessive heat.

Symptoms of a bad indicator light include:

• Light not illuminating when the range or oven is in use
• Flickering or inconsistent illumination
• Light staying on constantly, even when the range or oven is off
• Visible damage or discoloration of the light

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This electronic clock timer controls the oven/range clock and timed cooking functions, restoring accurate timekeeping and automatic bake/broil cycle control. Ideal when the display is blank, the timer won't set, or timed functions fail. What it does

• Powers and displays the cook time and oven clock for timed recipes and delayed bake/clean cycles
• Enables start/stop and delay-start oven functions when the control panel fails to respond
• Replaces a blank or unresponsive clock display to restore normal timed operations
• Helps resolve intermittent display flicker or non-responsive clock buttons

• One clock timer assembly

• Disconnect power to the appliance at the breaker before starting any repair
• Handle the control panel and glass display carefully to avoid scratching or damage
• May require removal of the oven control panel and basic hand tools; retain screws and wire routing for reassembly

This clock mounting bracket secures the appliance's clock/timer or electronic oven control behind the control panel. It helps keep the display and keypad aligned and stable so the control stays firmly in place.

• Holds the clock/timer or electronic oven control securely to the console
• Maintains proper alignment of the display and keypad with the front bezel
• Replaces a bent, cracked, or missing bracket
• Typical symptoms include a loose or sagging control, rattling in the console, or a misaligned display/keypad

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the console/backguard and remove the rear cover to reach the control and bracket
• Support the control while removing fasteners; transfer it to the new bracket and reuse original hardware as applicable
• Use ESD precautions when handling the electronic control and avoid overtightening screws

A push-button switch that restores user control functions by completing or breaking electrical circuits. Replaces a worn or failed control switch to help restore normal operation and user input response. What it does:

• Acts as the user-operated control input to start or stop a function when pressed
• Opens or closes the electrical circuit that enables the associated control or feature
• Common symptom: unresponsive controls or functions that do not start when buttons are pressed
• May cause intermittent operation or no response if contacts are worn or corroded

• One replacement push-button switch

• Disconnect power to the appliance before attempting any service
• Use appropriate tools and basic electrical safety; avoid bending terminals or forcing the new part into place

This replacement switch restores reliable on/off control for a specific function in the appliance, helping the selected feature respond consistently when operated.

• Controls electrical power to a designated circuit or component when actuated
• Sends an on/off signal to the control or directly to the component it operates
• Failure symptoms can include no response, intermittent operation, or a switch that feels loose, sticks, or is hard to press
• May show signs of heat damage, arcing, or a burning smell near the control area when faulty

• Disconnect power at the breaker before servicing to avoid electrical shock
• Access location varies by model; remove the control panel, backguard, or front panel as needed
• Label or photograph wire positions and transfer them one at a time to the new switch
• After reassembly, restore power and test operation of the associated function

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.
