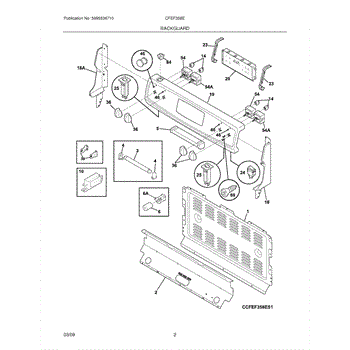

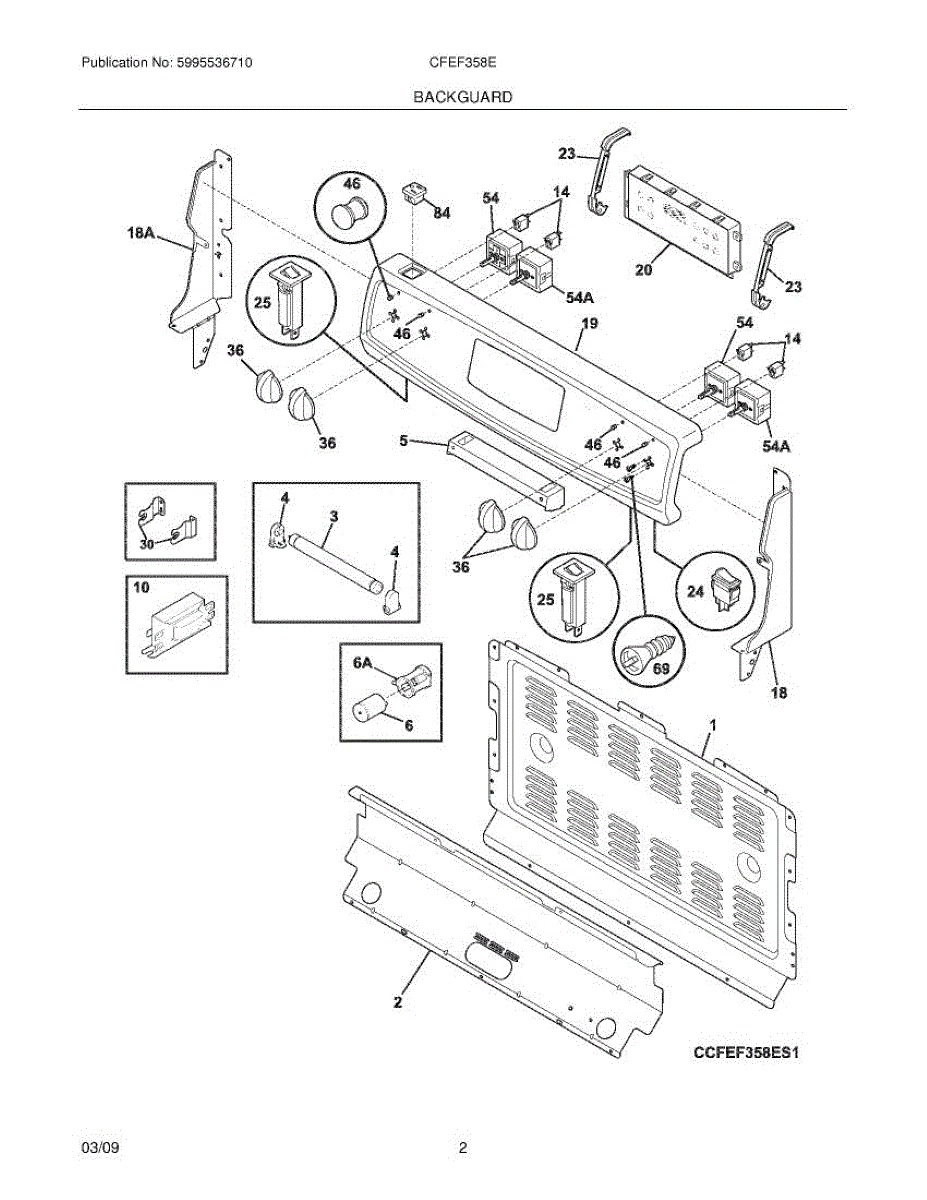

Parts for Frigidaire CFEF358ES4: 03 - Backguard Parts

The Indicator Light is an OEM part for Frigidaire ranges. This light is designed to signal when the range or oven is in operation, providing a visual cue for safety and usability. It typically illuminates when the burners or oven are on, ensuring users are aware of active heating elements.

Causes of a bad indicator light can include electrical malfunctions, wear and tear over time, or damage from power surges or excessive heat.

Symptoms of a bad indicator light include:

• Light not illuminating when the range or oven is in use
• Flickering or inconsistent illumination
• Light staying on constantly, even when the range or oven is off
• Visible damage or discoloration of the light

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Indicator Light Lens is an OEM part for Frigidaire ranges and cooktops. It is designed to cover and protect the indicator light bulb, which signals when a burner is turned on or if the cooktop is still hot after use. This small component ensures that the light is visible and diffused properly, helping to prevent accidental burns or other safety issues.

Symptoms of a failing Indicator Light Lens include:

• Cracking or damage to the lens that impairs visibility
• Discoloration that makes it hard to tell if the light is on
• The lens becoming loose or falling off
• The light appearing overly bright or unfiltered

Causes of a bad indicator light lens typically involve high heat exposure, which can lead to cracking or warping, or accidental impacts during cleaning or use.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

A push-button switch that restores user control functions by completing or breaking electrical circuits. Replaces a worn or failed control switch to help restore normal operation and user input response. What it does:

• Acts as the user-operated control input to start or stop a function when pressed
• Opens or closes the electrical circuit that enables the associated control or feature
• Common symptom: unresponsive controls or functions that do not start when buttons are pressed
• May cause intermittent operation or no response if contacts are worn or corroded

• One replacement push-button switch

• Disconnect power to the appliance before attempting any service
• Use appropriate tools and basic electrical safety; avoid bending terminals or forcing the new part into place

This replacement switch restores reliable on/off control for a specific function in the appliance, helping the selected feature respond consistently when operated.

• Controls electrical power to a designated circuit or component when actuated
• Sends an on/off signal to the control or directly to the component it operates
• Failure symptoms can include no response, intermittent operation, or a switch that feels loose, sticks, or is hard to press
• May show signs of heat damage, arcing, or a burning smell near the control area when faulty

• Disconnect power at the breaker before servicing to avoid electrical shock
• Access location varies by model; remove the control panel, backguard, or front panel as needed
• Label or photograph wire positions and transfer them one at a time to the new switch
• After reassembly, restore power and test operation of the associated function

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

The Control Board Overlay is an OEM part for Frigidaire ranges. This part provides the buttons and display that control the range's functions. The overlay covers and protects the control board, ensuring that the buttons and display remain intact and operational.

Causes of a bad control board overlay can include wear and tear from regular use, exposure to heat and moisture, or damage from accidental impacts.

Symptoms of a bad control board overlay include:

• Buttons that are unresponsive or hard to press
• Fading or peeling of the overlay graphics
• Inaccurate or malfunctioning display
• Visible damage or cracks on the overlay

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
