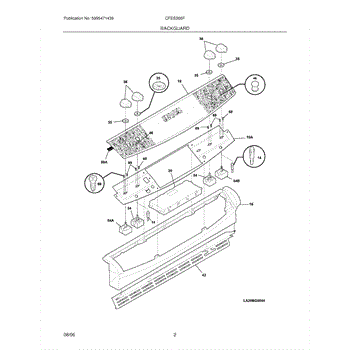

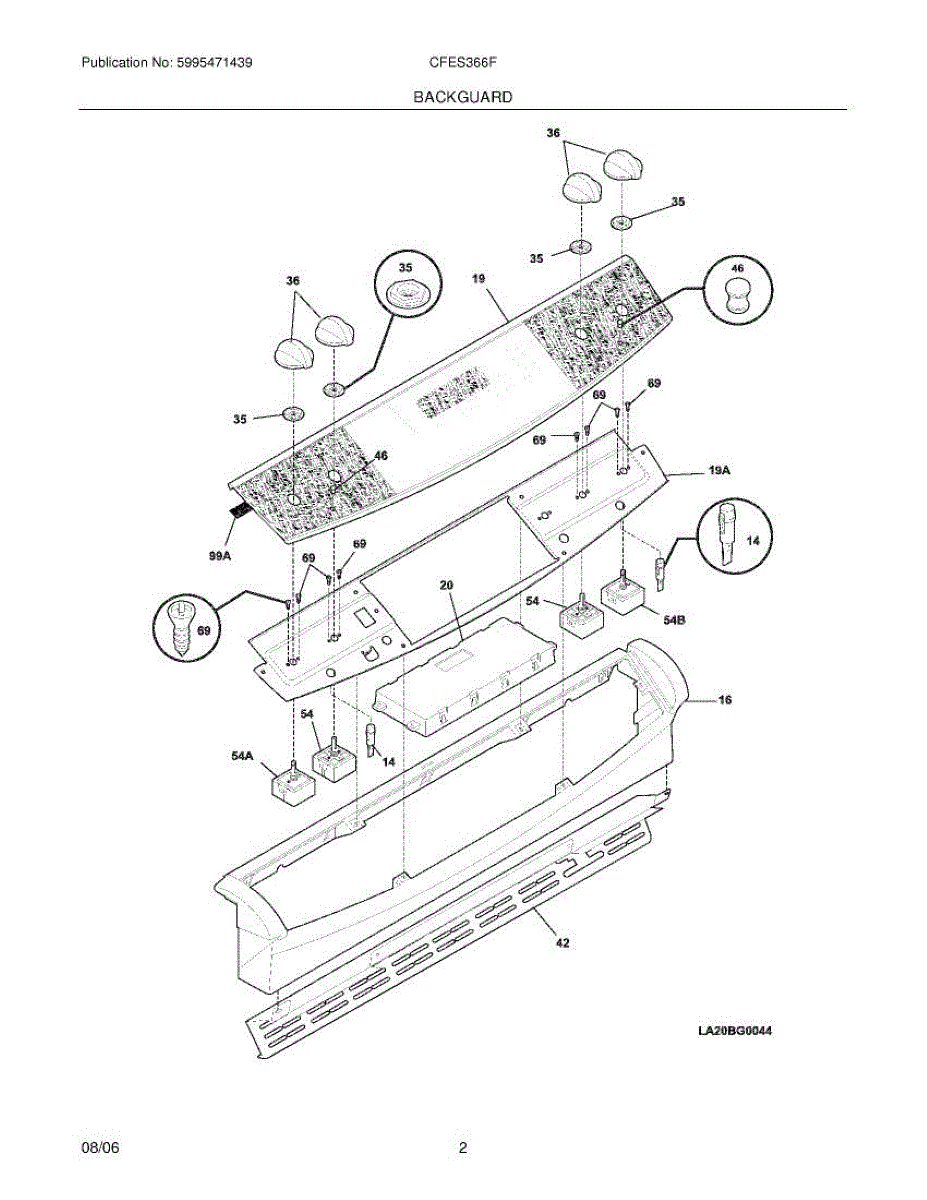

Parts for Frigidaire CFES366FS1: 03 - Backguard Parts

Designed for use on electric ranges, this is the console assembly that features the controls for the appliance. There are selection buttons as well as the display components for the unit. When the buttons aren't working on this console assembly, it is likely that this part will need to be replaced. Any issues with the digital display will also result in needing to replace the console assembly. Inspect the part to determine if there are any physical signs of failure or damage. Unplug the range from its electrical outlet before beginning. It's always a good idea to wear work gloves when performing care and maintenance on any appliance.This specific console assembly is compatible with electric ranges that are white in color and are manufactured by Frigidaire and Crosley. The part comes straight from the manufacturer and is sold individually.

This electronic clock timer assembly controls the oven's timekeeping and timed cooking functions while providing the front-panel time display. It restores timed bake/clean features and visible clock readout for normal oven operation. What it does:

• Maintains and displays the oven clock so the control shows correct time.
• Enables timed bake, delay start and automatic shutoff features when used by the oven controls.
• Interfaces with the oven control panel to start/stop timed cycles.
• Prevents timed or delay cooking if the clock/timer fails or shows no display.

• One clock timer assembly (single unit as shown).

• Disconnect power to the appliance before inspecting or replacing the clock/timer.
• Access typically requires removing the control panel; handle the control and display lens carefully to avoid damage.
• Use the oven's service manual for disassembly and wiring reference; verify wire routing and connector seating during reassembly.

This control knob replaces a worn, cracked, or missing range/oven control knob to restore safe, precise selection of heat and function settings. It gives a secure grip and a clear tactile stop for common range controls. What it does:

• Fits onto the range/oven control shaft to select temperature or function settings
• Provides a positive grip and stop so settings stay where you set them
• Replaces broken, stripped, cracked, or missing knobs that won't turn or won't stay set
• Helps restore proper user control for burner or oven functions

• Always disconnect power (unplug or shut off breaker) and shut off gas supply before servicing
• Pull the old knob straight off the control shaft; align and push the replacement knob onto the shaft until fully seated
• Don't force the knob; if it won't seat, inspect the control shaft and the knob opening for debris or damage

The dual element infinite switch is an OEM replacement part for Frigidaire ranges. It controls the dual element for the cooking surface.

Causes of failure can involve moisture intrusion due to cleaning or failed electronic components over many years of use.

Symptoms of a bad switch can be:

• Temperature fluctuations outside of the set range
• Runaway temperatures of the surface element
• Circuit breaker tripping when trying to use the surface element
• No power to the element when you have power coming to the switch

This replacement part is also compatible with ranges from Electrolux, Gibson, Kelvinator, and Kenmore brands.

The Switch is an OEM part for Frigidaire ovens. This component is responsible for controlling the flow of electricity to various functions of the oven, such as the bake and broil elements, ensuring the oven operates correctly according to the selected settings.

Causes of a bad switch can include wear and tear from frequent use, electrical surges, or physical damage from impact or exposure to moisture.

Symptoms of a bad switch include:

• The oven not turning on or responding to control inputs
• Inconsistent heating or temperature control issues
• Certain oven functions not working, such as the bake or broil elements
• The switch feeling loose or sticking when turned

This OEM replacement is also compatible with Electrolux, Gibson, Tappan, Kelvinator, and Kenmore models.

The Surface Burner Infinite Switch is an OEM part for Frigidaire ranges. This switch is responsible for controlling the heat output of the surface burners on your range. By adjusting the infinite switch, you can set the burner to different heat levels, allowing for precise cooking control.

Common causes of a bad infinite switch include electrical failures, internal component wear, or physical damage to the switch mechanism.

Symptoms of a bad surface burner infinite switch include:

• Burner not heating up
• Burner only working at one heat level
• Burner not turning off
• Inconsistent or fluctuating heat levels

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a replacement refrigerator door gasket that restores the seal around the door to help maintain proper temperature and efficiency. It's a direct-fit sealing strip designed to replace a worn, torn, or deformed door seal. What it does:

• Seals the gap between the door and cabinet to help keep cold air in and warm air out
• Helps reduce frost buildup and prevents moisture and leaks around the door
• Restores consistent internal temperature for better food preservation
• Reduces compressor run time caused by an improper door seal

• One refrigerator door gasket

• Recommended: replace gasket on a clean, dry door surface; remove old gasket and adhesive residue before installing
• Use the manufacturer's recommended attachment method (snap-in or adhesive) for your model
• Inspect hinge alignment and door fit before finalizing gasket installation to ensure an even seal
• For safety, unplug the appliance or disconnect power before beginning repairs

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
