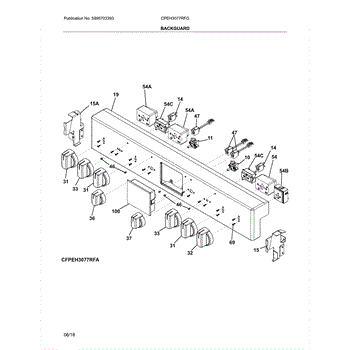

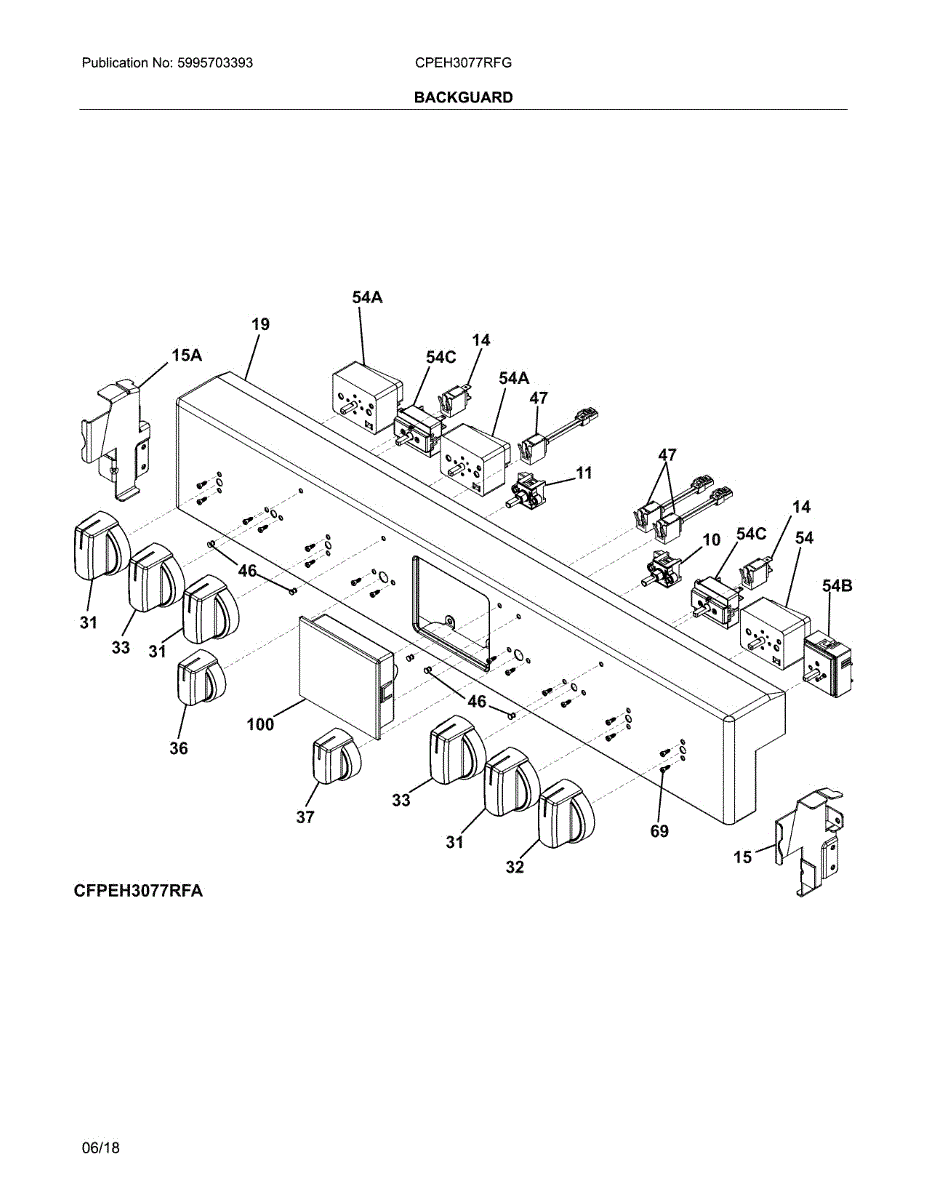

Parts for Frigidaire CPEH3077RFG: Backguard Parts

Parts for Frigidaire CPEH3077RFG: Backguard Parts

Location on Diagram
Part Description
Price & Availability
10
By: Frigidaire
Part Number: 808843105
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
Product photo
By: Frigidaire
Part Number: 5304493649

This potentiometer is a variable resistor used in the range's control system to regulate settings such as burner flame level or oven temperature selection. It translates the position of a control knob into an electrical signal that the control board uses to adjust heat output. Replace this part if your burner or oven fails to respond to adjustments, produces inconsistent heat, or the control feels loose or unresponsive when turned.

More
$58.44

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
14
Best Seller
Product photo
4.9 (9)
By: Frigidaire
Part Number: 316022500

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

More
$59.36

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
15
By: Frigidaire
Part Number: 5304500132
$19.55

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15A
By: Frigidaire
Part Number: 5304500133
$16.39

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
19
By: Frigidaire
Part Number: 809103501
$296.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
31
By: Frigidaire
Part Number: 5304502427

Replace your range control knob if the original is cracked, broken, or missing. This knob installs on the control panel to adjust oven or cooktop settings.

More
$88.50

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
32
By: Frigidaire
Part Number: 5304502428
$77.21

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
33
By: Frigidaire
Part Number: 5304502429

Control knob for electric and gas ranges. Installs on the control panel to adjust burner settings. Replace if cracked, broken, or missing.

More
$113.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
36
By: Frigidaire
Part Number: 809137901

Control knob for electric ranges. Installs on the control panel. Replace if your original knob is cracked, broken, worn, or missing. Simple push-on design.

More
$87.65

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
37
By: Frigidaire
Part Number: 809137902

Control knob for electric range burner or oven settings. Attaches to the control panel front. Replace if cracked, broken, or missing for proper control.

More
$98.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
46
Best Seller
Product photo
4.8 (12)
By: Frigidaire
Part Number: 316557300

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

More
$20.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
47
By: Frigidaire
Part Number: 316022508

Illuminates your oven interior for clear visibility. Replace when light fails or dims. Verify fit with your range model number before ordering.

More
$20.61

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
54C
By: Frigidaire
Part Number: 5304537897

Warming drawer not heating or staying on? This infinite switch controls temperature settings. Common fix for drawer temperature control issues on ranges.

More
$29.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
54B
Best Seller
Product photo
4.8 (26)
By: Frigidaire
Part Number: 316238201

Burner won't turn off or stuck on high heat? This surface element control switch restores proper temperature control. Easy DIY repair in under an hour.

More
$77.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
54
Best Seller
Product photo
4.9 (71)
By: Frigidaire
Part Number: 316436000

Burner stuck on high or won't heat? This surface element switch controls temperature for electric range burners. DIY repair in under 30 minutes.

More
$63.76

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
54A
Best Seller
Product photo
4.9 (454)
By: Frigidaire
Part Number: 316436001

Burner won't turn off or stuck on high? This surface element switch controls heat settings for large burners. Moderate DIY with panel removal.

More
$51.30

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
69
Product photo
4.6 (8)
By: Frigidaire
Part Number: 5303288565

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

  • Fastens the switch body to a bracket or chassis panel
  • Helps keep the switch aligned for consistent actuation
  • Replaces stripped, corroded, or missing mounting hardware
  • Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area
What's included: 1 truss-head machine screw (#8-32 x 3/16) Install notes:
  • Disconnect power to the appliance before servicing
  • Start threads by hand to avoid cross-threading; tighten snugly without overtightening
  • Verify thread size and length match the original hardware
  • If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

More
$7.48

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
100
Product photo
5.0 (2)
By: Frigidaire
Part Number: 808751522

Fix unresponsive touch panel buttons or controls not working on your range. This electronic control board restores user interface functions. Easy DIY repair.

More
$555.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
NI
By: Frigidaire
Part Number: 5304500179
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI
By: Frigidaire
Part Number: 5304517680
$26.99

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
NI
By: Frigidaire
Part Number: 5304517734

Wire harness assembly for electric ranges. Connects electrical components throughout the unit. Replace if wires are frayed, melted, or connections are damaged.

More
$33.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
NI
Product photo
4.7 (7)
By: Frigidaire
Part Number: 316021109

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

More
$13.54

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
NI
Product photo
4.7 (7)
By: Frigidaire
Part Number: 316021109

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

More
$13.54

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
