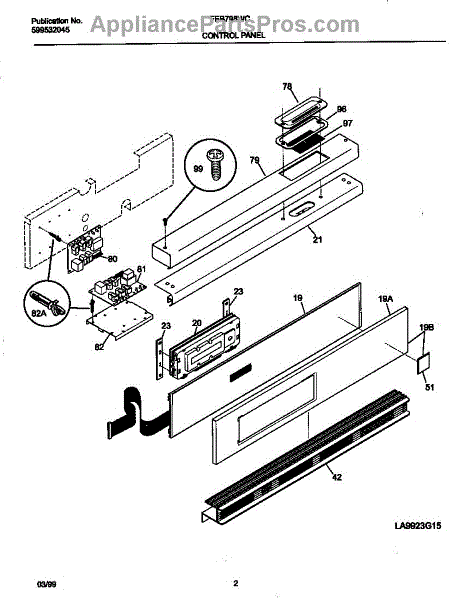

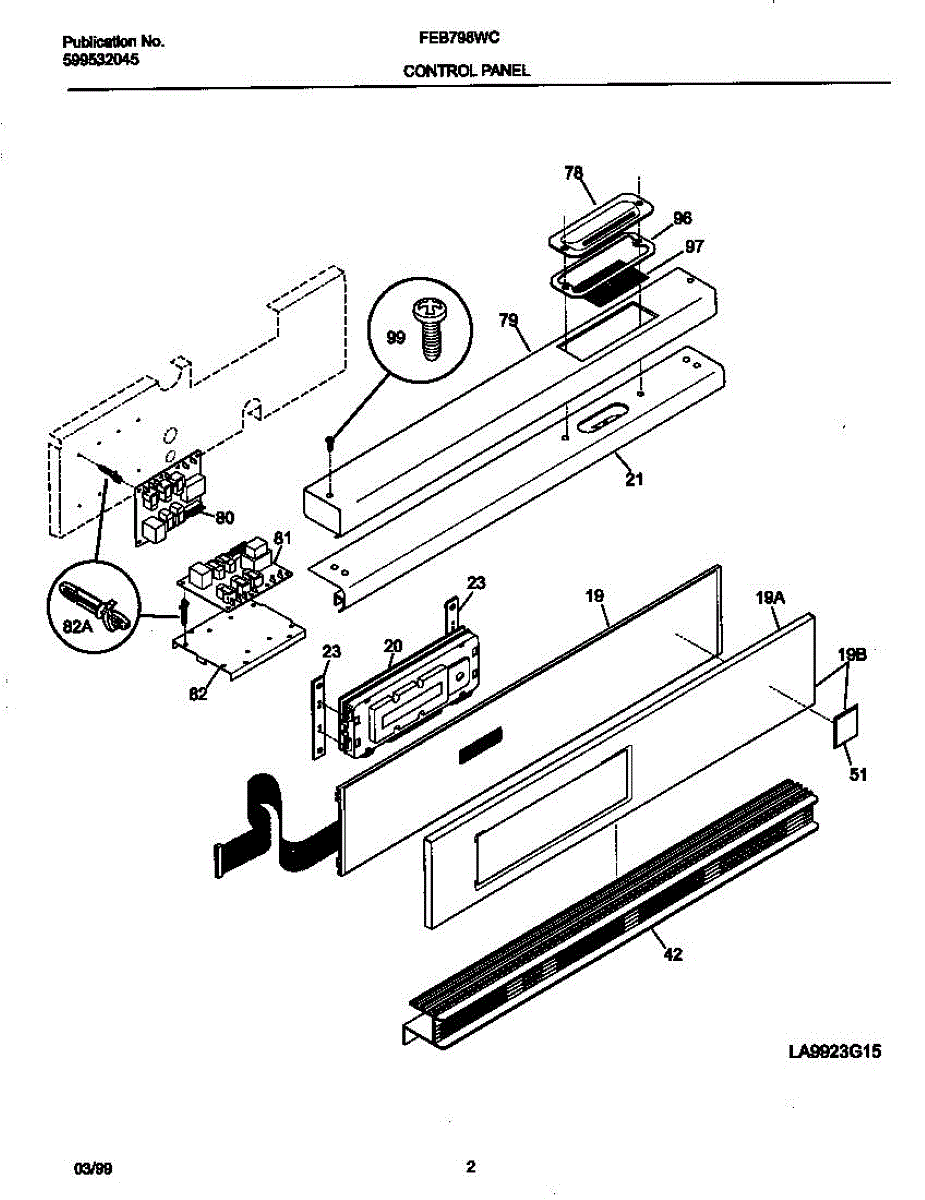

Parts for Frigidaire FEB798WCCH: 02 - Backguard Parts

The oven control board is located behind the front panel and manages all oven functions including temperature, timing, and cooking modes. Replace it if the display is blank, buttons don't respond, or if the oven won't heat to the correct temperature.

Fix an oven that won't heat or bake element not working. This relay control board receives signals from the main control board. DIY repair under 1 hour.

This is a Frigidaire oven relay control board. This part is made for the double-oven wall design. The relay control board sends a signal to the main control board, causing the oven to turn on or off. These relay boards are engaged directly by the power button of the unit and the cooking timer. When the relay control board malfunctions or short circuits, the baking and broil functions will be directly affected. The oven may quit powering on altogether if the relay board completely fails. A short in the relay will cause the oven power to function correctly at random times. Wall ovens must be dismounted from their positions to install these parts. Once access is gained to the tear of the stove, the back panel can be removed. The relay control board is located near the bottom of the unit, close to the utility drawer. Unplug the connecting wires and engage the mounting clips holding the board. Discard the old unit, and replace it with the upgrade. Connect the cables and fasten the metal panel on the rear of the oven. Check for proper function before mounting the stove back into the wall.This is a genuine OEM product and is obtained directly from the manufacturer. This part is only compatible with Frigidaire wall ovens.

Specs: 8 - 18 x 0.500

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Cork and rubber spacer for ovens and ranges. Provides cushioning and spacing between components. Replace if worn, cracked, compressed, or missing.

This part has been discontinued by the manufacturer and is no longer available.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Cushioned fastener washer that protects surfaces and reduces vibration. Replace if cracked, compressed, or missing to prevent metal damage and loosening.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Cork and rubber spacer for ovens and ranges. Provides cushioning and spacing between components. Replace if worn, cracked, compressed, or missing.

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

Hex washer head ,10-32 x 0.375. Ground

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.
