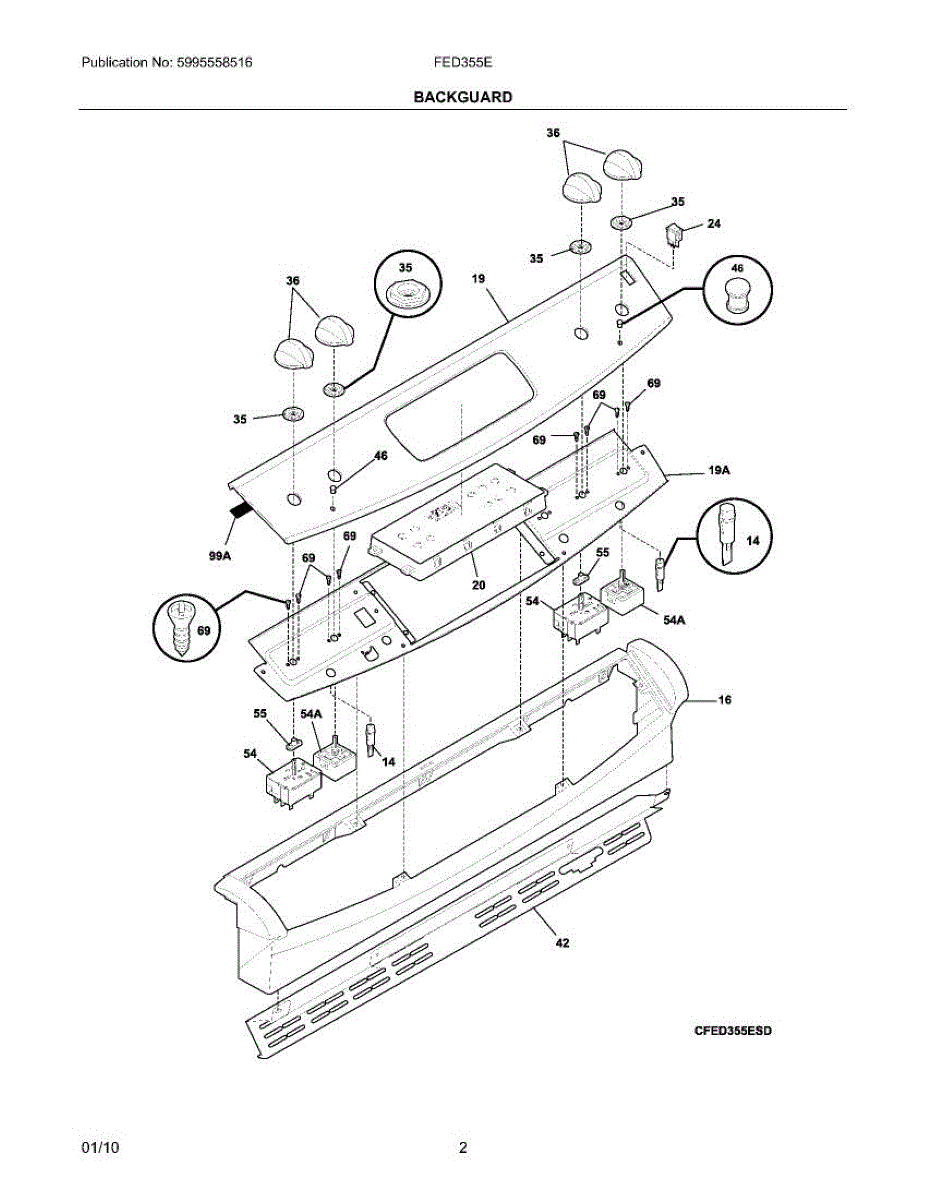

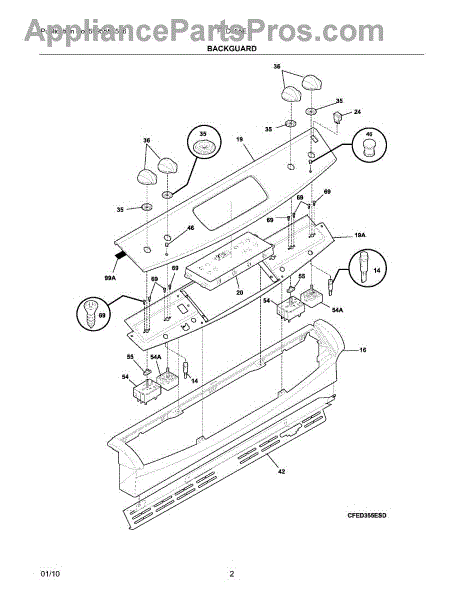

Parts for Frigidaire FED355EBD: 03 - Backguard Parts

This touchpad and control panel assembly replaces the user interface that lets you set oven functions, temperature and timers. Restores button responsiveness and the visible control surface so the range responds correctly to inputs. What it does:

• Provides the front user controls and membrane touchpad for selecting bake, broil, timers and other functions
• Sends user commands to the range's control board so cycles start and settings change
• Commonly replaces panels with unresponsive or stuck buttons, missing legends, or intermittent input
• Resolves control-related problems when the display or buttons do not register presses

• Disconnect power to the appliance before servicing to avoid shock or damage
• Typical installation requires removing the oven door or control housing; handle the glass and trim gently
• Avoid touching circuit traces and connector pins; ensure connectors are fully seated
• After installation, reconnect power and test all functions before reassembling trim panels

This clock timer is the control that displays the time and runs timed-cooking features. On models that use it as the main oven control, it also coordinates bake and broil. Replacing a failed unit restores reliable operation. What it does:

• Displays time-of-day and manages kitchen timer, delayed start, and cook duration functions
• On applicable models, controls oven heating by signaling bake/broil circuits to start and stop
• Common symptoms of failure: blank or dim display, inability to set clock/timer, oven won't start or shuts off unexpectedly

• 1 clock/timer control assembly

• Disconnect power at the breaker before servicing
• Access the control behind the console/control panel; label or photograph all wire connections
• Handle the board carefully to avoid static discharge and damage to terminals
• Transfer existing mounting brackets and any faceplate/overlay if your model uses them; secure and test operation before final reassembly

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement switch restores reliable on/off signaling for a specific circuit in your appliance, helping the intended function operate consistently and safely. It's a direct-fit part used in select cooking appliances where a mechanical/electrical switch is required. What it does:

• Opens and closes an electrical circuit when actuated to control a designated function (such as a light, interlock, or enable signal), per model design
• Helps the control system detect a condition (e.g., a door position) to allow or inhibit operation
• Resolves issues like a light that won't turn on/off, "door open" messages when closed, or functions that start/stop unexpectedly
• Replaces a worn, stuck, or intermittently failing switch that causes inconsistent operation

• One switch

• Disconnect power before servicing; this part carries live voltage during operation
• Access the switch at its mounting location
• Move wires one at a time from the old switch to the new to maintain correct terminal positions; ensure snug, clean connections
• Test function before reassembly to confirm proper actuation and operation

This bushing is a molded support sleeve that helps align and stabilize a rotating shaft, reducing wear and vibration for quieter, more reliable appliance operation. Designed as a direct-replacement service part. What it does:

• Supports and centers a rotating shaft or drum to prevent metal-on-metal contact
• Reduces vibration and noise caused by a worn bearing interface
• Protects housings and shafts from wear and scoring
• Helps restore proper rotation when the original bushing is worn or damaged

• Disconnect power before starting any repair to avoid shock or injury
• Inspect mating shaft and housing for wear; replace if damaged to prevent premature new-part failure
• Press or seat the bushing straight and fully; use proper tools to avoid distortion

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a replacement refrigerator door gasket that restores the seal around the door to help maintain proper temperature and efficiency. It's a direct-fit sealing strip designed to replace a worn, torn, or deformed door seal. What it does:

• Seals the gap between the door and cabinet to help keep cold air in and warm air out
• Helps reduce frost buildup and prevents moisture and leaks around the door
• Restores consistent internal temperature for better food preservation
• Reduces compressor run time caused by an improper door seal

• One refrigerator door gasket

• Recommended: replace gasket on a clean, dry door surface; remove old gasket and adhesive residue before installing
• Use the manufacturer's recommended attachment method (snap-in or adhesive) for your model
• Inspect hinge alignment and door fit before finalizing gasket installation to ensure an even seal
• For safety, unplug the appliance or disconnect power before beginning repairs

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The Range Overlay is an OEM part compatible with Frigidaire ranges. The overlay covers the control board and labels the button on the board.

Causes of a bad overlay can be normal wear over time with heavy use of the range, exposure to heat and impacts, or warping from temperature fluctuations around the cooking elements.

Symptoms of a faulty overlay include:

• Cracks or breaks appearing in the material
• Loose, sagging, or misaligned fitment on the front of the range
• Gaps that compromise the seal around cooking surfaces
• Discoloration or other appearance issues affecting the look

It is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore range models.
