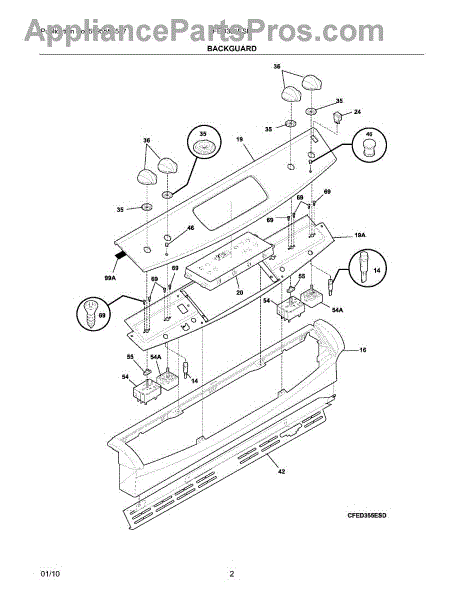

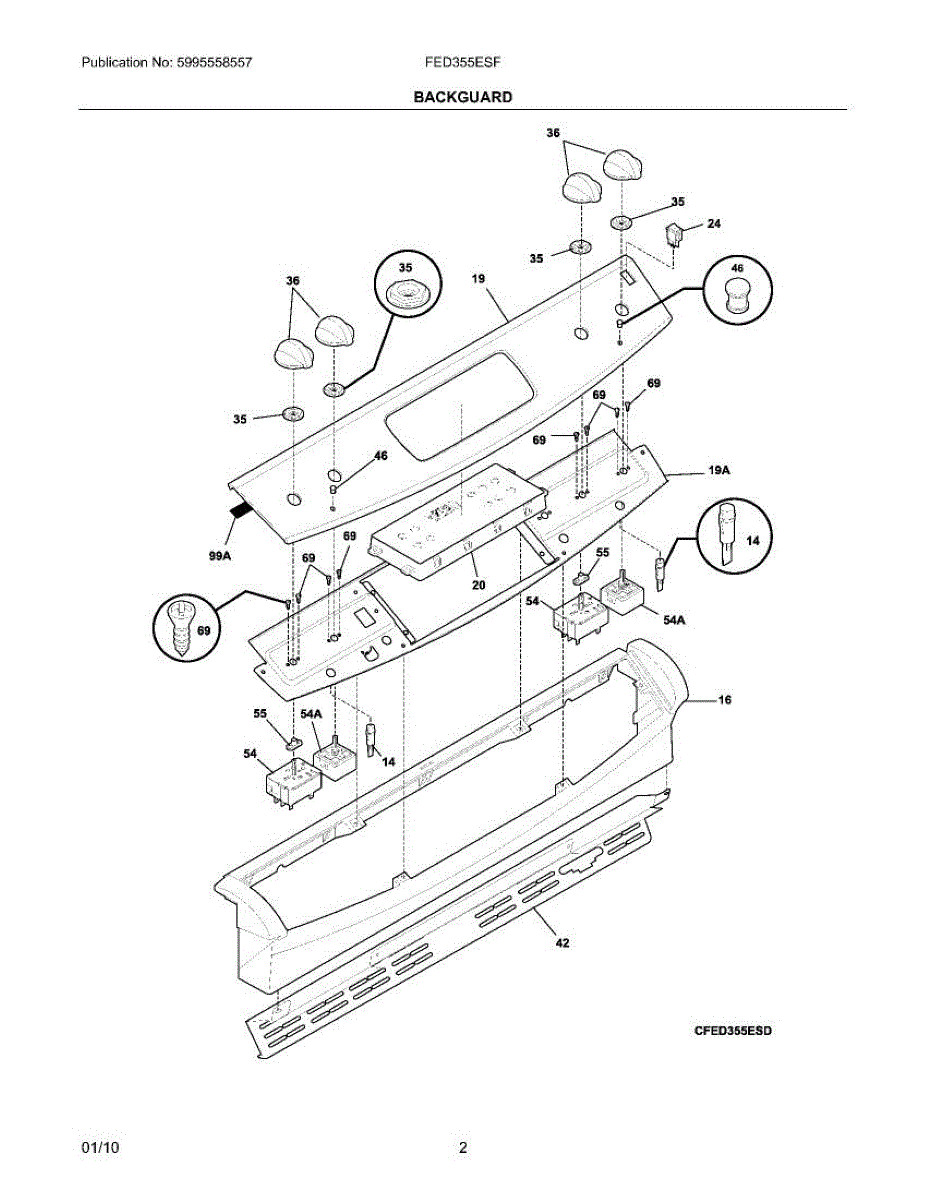

Parts for Frigidaire FED355ESF: 03 - Backguard Parts

Designed for use on electric ranges, this is the console assembly that features the controls for the appliance. There are selection buttons as well as the display components for the unit. When the buttons aren't working on this console assembly, it is likely that this part will need to be replaced. Any issues with the digital display will also result in needing to replace the console assembly. Inspect the part to determine if there are any physical signs of failure or damage. Unplug the range from its electrical outlet before beginning. It's always a good idea to wear work gloves when performing care and maintenance on any appliance.This specific console assembly is compatible with electric ranges that are white in color and are manufactured by Frigidaire and Crosley. The part comes straight from the manufacturer and is sold individually.

This touchpad and control panel assembly replaces the user interface that lets you set oven functions, temperature and timers. Restores button responsiveness and the visible control surface so the range responds correctly to inputs. What it does:

• Provides the front user controls and membrane touchpad for selecting bake, broil, timers and other functions
• Sends user commands to the range's control board so cycles start and settings change
• Commonly replaces panels with unresponsive or stuck buttons, missing legends, or intermittent input
• Resolves control-related problems when the display or buttons do not register presses

• Disconnect power to the appliance before servicing to avoid shock or damage
• Typical installation requires removing the oven door or control housing; handle the glass and trim gently
• Avoid touching circuit traces and connector pins; ensure connectors are fully seated
• After installation, reconnect power and test all functions before reassembling trim panels

This is the electronic clock and oven control that manages bake and broil functions while displaying time, temperature, and status. Replacing a failed timer restores accurate temperature control and reliable oven operation.

• Regulates oven heating by sending power to bake and broil circuits
• Displays time, set temperature, and cycle status
• Buttons allow setting bake, broil, and timer functions
• Common failure symptoms: no oven heat, inaccurate temperature, unresponsive buttons, error codes, or a blank/partial display

• Disconnect power at the breaker before servicing
• Handle the control carefully; avoid static discharge to the board
• Note wire locations or take photos before removal
• After installation, verify operation and run a test bake

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This control knob replaces a worn, cracked, or missing range/oven control knob to restore safe, precise selection of heat and function settings. It gives a secure grip and a clear tactile stop for common range controls. What it does:

• Fits onto the range/oven control shaft to select temperature or function settings
• Provides a positive grip and stop so settings stay where you set them
• Replaces broken, stripped, cracked, or missing knobs that won't turn or won't stay set
• Helps restore proper user control for burner or oven functions

• Always disconnect power (unplug or shut off breaker) and shut off gas supply before servicing
• Pull the old knob straight off the control shaft; align and push the replacement knob onto the shaft until fully seated
• Don't force the knob; if it won't seat, inspect the control shaft and the knob opening for debris or damage

This replacement switch restores reliable on/off signaling for a specific circuit in your appliance, helping the intended function operate consistently and safely. It's a direct-fit part used in select cooking appliances where a mechanical/electrical switch is required. What it does:

• Opens and closes an electrical circuit when actuated to control a designated function (such as a light, interlock, or enable signal), per model design
• Helps the control system detect a condition (e.g., a door position) to allow or inhibit operation
• Resolves issues like a light that won't turn on/off, "door open" messages when closed, or functions that start/stop unexpectedly
• Replaces a worn, stuck, or intermittently failing switch that causes inconsistent operation

• One switch

• Disconnect power before servicing; this part carries live voltage during operation
• Access the switch at its mounting location
• Move wires one at a time from the old switch to the new to maintain correct terminal positions; ensure snug, clean connections
• Test function before reassembly to confirm proper actuation and operation

This replacement electrical switch restores dependable control of the selected function in your appliance, allowing you to turn the feature on and off reliably. Use it to replace a worn, unresponsive, or sticking switch for safe, consistent operation.

• Opens and closes the circuit to its assigned component when actuated
• Helps resolve a feature that won't turn on or won't shut off
• Addresses intermittent operation or a switch that feels loose, sticks, or shows heat damage
• Restores normal control response after internal switch failure

• Disconnect power at the breaker before servicing
• Access may require removing the control panel or backguard; take a photo and label wires
• Move one wire at a time from the old switch to the new to maintain correct connections
• Inspect terminals; replace any damaged spade connectors to ensure a secure fit

This bushing is a molded support sleeve that helps align and stabilize a rotating shaft, reducing wear and vibration for quieter, more reliable appliance operation. Designed as a direct-replacement service part. What it does:

• Supports and centers a rotating shaft or drum to prevent metal-on-metal contact
• Reduces vibration and noise caused by a worn bearing interface
• Protects housings and shafts from wear and scoring
• Helps restore proper rotation when the original bushing is worn or damaged

• Disconnect power before starting any repair to avoid shock or injury
• Inspect mating shaft and housing for wear; replace if damaged to prevent premature new-part failure
• Press or seat the bushing straight and fully; use proper tools to avoid distortion

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a replacement refrigerator door gasket that restores the seal around the door to help maintain proper temperature and efficiency. It's a direct-fit sealing strip designed to replace a worn, torn, or deformed door seal. What it does:

• Seals the gap between the door and cabinet to help keep cold air in and warm air out
• Helps reduce frost buildup and prevents moisture and leaks around the door
• Restores consistent internal temperature for better food preservation
• Reduces compressor run time caused by an improper door seal

• One refrigerator door gasket

• Recommended: replace gasket on a clean, dry door surface; remove old gasket and adhesive residue before installing
• Use the manufacturer's recommended attachment method (snap-in or adhesive) for your model
• Inspect hinge alignment and door fit before finalizing gasket installation to ensure an even seal
• For safety, unplug the appliance or disconnect power before beginning repairs

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The Control Board Overlay is an OEM part for Frigidaire ranges. This part provides the buttons and display that control the range's functions. The overlay covers and protects the control board, ensuring that the buttons and display remain intact and operational.

Causes of a bad control board overlay can include wear and tear from regular use, exposure to heat and moisture, or damage from accidental impacts.

Symptoms of a bad control board overlay include:

• Buttons that are unresponsive or hard to press
• Fading or peeling of the overlay graphics
• Inaccurate or malfunctioning display
• Visible damage or cracks on the overlay

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
