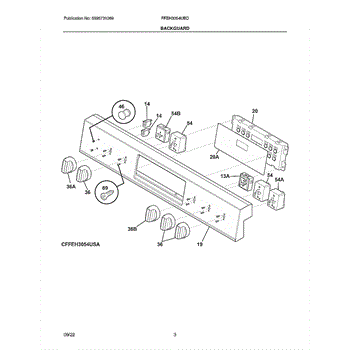

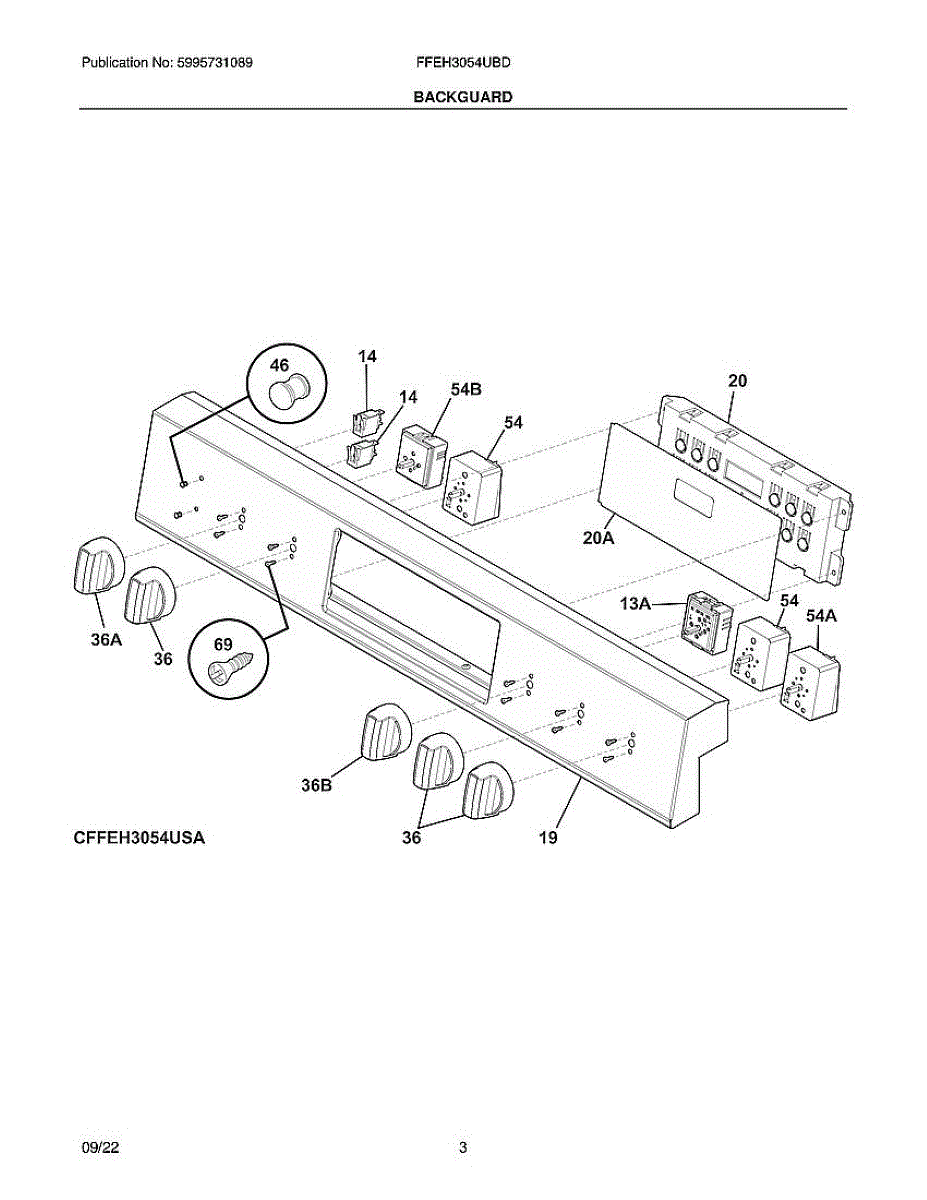

Parts for Frigidaire FFEH3054UBD: Backguard Parts

This is a replacement door switch that signals the appliance when the door is closed so the unit will start or run. Restores proper door-sensing function for safe, reliable operation. What it does:

• Detects whether the door is closed and sends the on/off signal to the appliance control.
• Prevents operation when the door is open; stops cycles or disables functions if faulty.
• Commonly replaces a worn, broken, or non-responsive door actuator switch.
• Symptoms of a failing switch: appliance won't start, stops mid-cycle, or control behaves inconsistently.

• Disconnect power (unplug appliance or shut off the circuit) before attempting replacement.
• Handle electrical connectors carefully; match wiring and terminal positions during reassembly.
• Verify part compatibility with your model before installation.

The Indicator Light is an OEM part for Frigidaire ranges. This light is designed to signal when the range or oven is in operation, providing a visual cue for safety and usability. It typically illuminates when the burners or oven are on, ensuring users are aware of active heating elements.

Causes of a bad indicator light can include electrical malfunctions, wear and tear over time, or damage from power surges or excessive heat.

Symptoms of a bad indicator light include:

• Light not illuminating when the range or oven is in use
• Flickering or inconsistent illumination
• Light staying on constantly, even when the range or oven is off
• Visible damage or discoloration of the light

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Overlay is an OEM part for Frigidaire ranges. It provides the protective plastic faceplate that interfaces with the electronic control buttons and display.

Causes of a bad overlay can include cracks or breaks from repeated cleaning, warping or discoloration from heat exposure over time, and physical damage from impact.

Symptoms of a bad control board overlay include:

• Non-responsive or inoperable control buttons
• Illegible or faded labels and display graphics
• Gaps or loose fit of the overlay allowing moisture ingress
• Premature wear reducing the protective function

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Control Board is an OEM part for Frigidaire ranges. This part controls the oven functions, including temperature regulation, cooking modes, and timer settings.

Causes of a bad control board can include electrical surges, moisture damage, excessive heat, or general wear and tear.

Symptoms of a bad range control board include:

• The oven or burners not turning on
• Unresponsive or malfunctioning control panel
• Incorrect temperature settings
• Error codes displayed on the control panel
• Oven not maintaining set temperature

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Indicator Light Lens is an OEM part for Frigidaire ranges. This component covers and protects the indicator light, which signals when a burner or the oven is on, providing a visual cue for users to ensure safe operation.

Over time, the indicator light lens can become damaged or discolored due to heat exposure, regular cleaning, or accidental impacts. Causes of a bad indicator light lens include cracking, warping, or clouding that obscures the light.

Symptoms of a bad indicator light lens include:

• The indicator light not being clearly visible
• Cracks or breaks in the lens
• Discoloration or cloudiness that diminishes the brightness of the light
• The lens becoming loose or falling off

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement switch restores reliable control of a specific circuit or feature in your appliance. A button, selector, or lever that has become unresponsive or intermittent can be fixed by installing a new switch.

• Opens and closes an electrical circuit to power the intended component or feature
• Helps resolve no-response or intermittent operation from a selector or button
• Addresses issues like a stuck/broken actuator or a switch that only works when wiggled
• Supports safe, consistent control of the appliance function

• Disconnect power to the appliance before servicing
• Note wire positions and transfer one lead at a time to the matching terminals
• Seat the switch fully in its mounting; avoid pinching or straining wires
• After reassembly, restore power and test operation; use a multimeter to confirm continuity if needed

The Small Surface Element Switch is an OEM replacement part for Frigidaire electric ranges. It serves as the control knob and circuitry to safely power one of the smaller cooking elements.

Symptoms of a bad surface element switch include:

• Inability to ignite or regulate heating for its assigned zone
• Switch knob that feels loose, won't click smoothly, or won't stay set
• Intermittent or unreliable power to the smaller element coils
• Tripped circuit breakers upon use that don't reset

Causes relate to thousands of rotations wearing micro-switches and wiring terminals within the control assembly. Regular cleaning around knobs can prevent accelerated deterioration from baked-on debris conducting excess heat.

This genuine OEM replacement part is compatible with other brands including Electrolux and Kenmore as well.

The Large Surface Element Switch is an OEM replacement part for Frigidaire ranges and cooktops. It is a component that controls the power and temperature settings for one of the larger surface heating elements on the appliance.

Symptoms of a faulty Large Surface Element Switch include:

• Difficulty in adjusting or maintaining consistent heat settings
• The surface element not heating up or cycling on and off unexpectedly
• Flickering or erratic behavior of the surface element
• Burning smell or visible signs of overheating

Causes of a bad large surface element switch can include normal wear and tear, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore range and cooktop models.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This wiring harness connects electrical components to restore power and signal paths inside the appliance, allowing controls and motors to communicate and run safely. Use to replace a damaged or worn connector harness. What it does

• Provides the correct wire routing and connector ends to deliver power and signals between components.
• Replaces frayed, broken, or corroded wiring that can cause intermittent operation or failure to start.
• Helps stop shorts and unreliable connections that can lead to blown fuses or tripped breakers.
• Restores factory wiring configuration to maintain proper function of controls and motors.

• One wiring harness.

• Disconnect power before starting — risk of shock or injury if power remains connected.
• Inspect connector pins and mating components for damage; replace any damaged terminals or clips.
• Route the harness following the appliance's wiring diagram to avoid interference with moving parts.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
