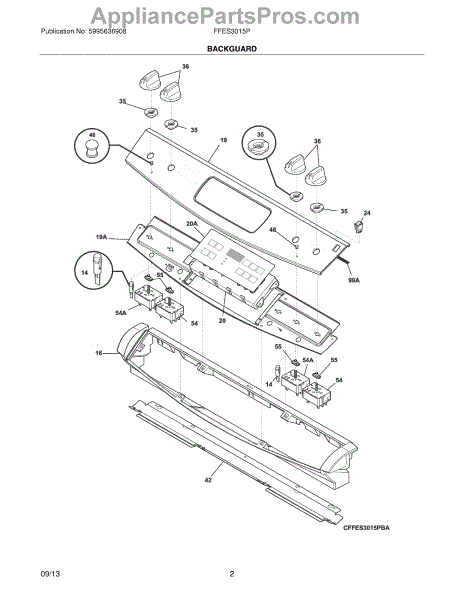

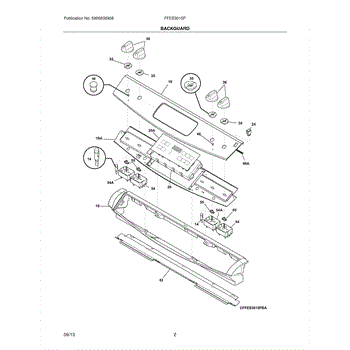

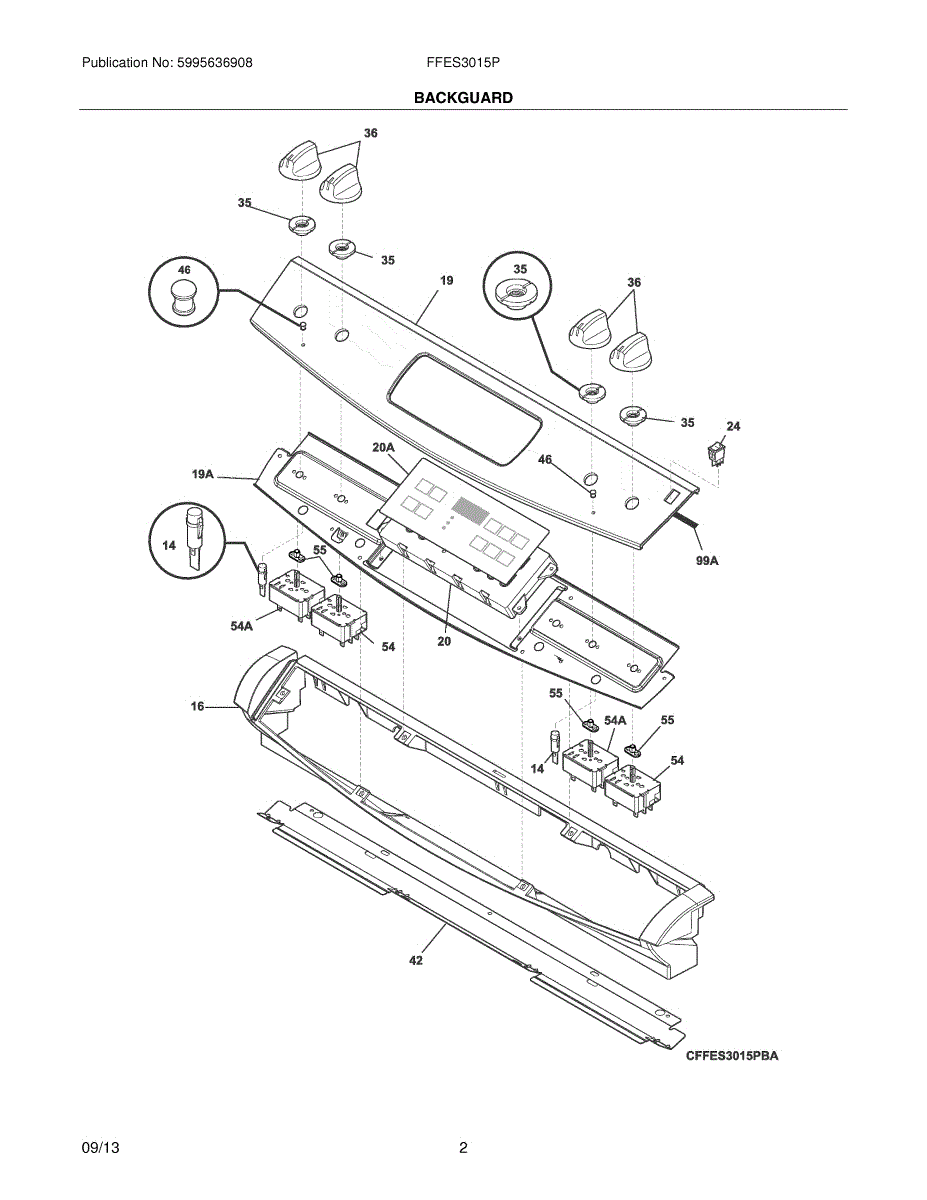

Parts for Frigidaire FFES3015PBA: 03 - Backguard Parts

This touchpad and control panel assembly replaces the user interface that lets you set oven functions, temperature and timers. Restores button responsiveness and the visible control surface so the range responds correctly to inputs. What it does:

• Provides the front user controls and membrane touchpad for selecting bake, broil, timers and other functions
• Sends user commands to the range's control board so cycles start and settings change
• Commonly replaces panels with unresponsive or stuck buttons, missing legends, or intermittent input
• Resolves control-related problems when the display or buttons do not register presses

• Disconnect power to the appliance before servicing to avoid shock or damage
• Typical installation requires removing the oven door or control housing; handle the glass and trim gently
• Avoid touching circuit traces and connector pins; ensure connectors are fully seated
• After installation, reconnect power and test all functions before reassembling trim panels

The Clock/Timer is an OEM part for Frigidaire ranges. It allows users to time and monitor cooking functions, helping ensure food is cooked to perfection. The clock/timer is a digital control panel component responsible for displaying the time of day and countdown timers for cooking modes.

Causes of a bad clock/timer include electronic malfunctions, water damage, or physical damage to the control buttons or display screen.

Symptoms of a bad clock/timer are:

• The time or timers not counting down properly
• Buttons or control pads not working
• The display screen flickering or not lighting up
• Inaccurate timekeeping

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Range Overlay is an OEM part compatible with Frigidaire ranges. The overlay covers the control board and labels the button on the board.

Causes of a bad overlay can be normal wear over time with heavy use of the range, exposure to heat and impacts, or warping from temperature fluctuations around the cooking elements.

Symptoms of a faulty overlay include:

• Cracks or breaks appearing in the material
• Loose, sagging, or misaligned fitment on the front of the range
• Gaps that compromise the seal around cooking surfaces
• Discoloration or other appearance issues affecting the look

It is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore range models.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement switch restores reliable on/off signaling for a specific circuit in your appliance, helping the intended function operate consistently and safely. It's a direct-fit part used in select cooking appliances where a mechanical/electrical switch is required. What it does:

• Opens and closes an electrical circuit when actuated to control a designated function (such as a light, interlock, or enable signal), per model design
• Helps the control system detect a condition (e.g., a door position) to allow or inhibit operation
• Resolves issues like a light that won't turn on/off, "door open" messages when closed, or functions that start/stop unexpectedly
• Replaces a worn, stuck, or intermittently failing switch that causes inconsistent operation

• One switch

• Disconnect power before servicing; this part carries live voltage during operation
• Access the switch at its mounting location
• Move wires one at a time from the old switch to the new to maintain correct terminal positions; ensure snug, clean connections
• Test function before reassembly to confirm proper actuation and operation

This replacement electrical switch restores dependable control of the selected function in your appliance, allowing you to turn the feature on and off reliably. Use it to replace a worn, unresponsive, or sticking switch for safe, consistent operation.

• Opens and closes the circuit to its assigned component when actuated
• Helps resolve a feature that won't turn on or won't shut off
• Addresses intermittent operation or a switch that feels loose, sticks, or shows heat damage
• Restores normal control response after internal switch failure

• Disconnect power at the breaker before servicing
• Access may require removing the control panel or backguard; take a photo and label wires
• Move one wire at a time from the old switch to the new to maintain correct connections
• Inspect terminals; replace any damaged spade connectors to ensure a secure fit

This bushing is a molded support sleeve that helps align and stabilize a rotating shaft, reducing wear and vibration for quieter, more reliable appliance operation. Designed as a direct-replacement service part. What it does:

• Supports and centers a rotating shaft or drum to prevent metal-on-metal contact
• Reduces vibration and noise caused by a worn bearing interface
• Protects housings and shafts from wear and scoring
• Helps restore proper rotation when the original bushing is worn or damaged

• Disconnect power before starting any repair to avoid shock or injury
• Inspect mating shaft and housing for wear; replace if damaged to prevent premature new-part failure
• Press or seat the bushing straight and fully; use proper tools to avoid distortion

This is a replacement refrigerator door gasket that restores the seal around the door to help maintain proper temperature and efficiency. It's a direct-fit sealing strip designed to replace a worn, torn, or deformed door seal. What it does:

• Seals the gap between the door and cabinet to help keep cold air in and warm air out
• Helps reduce frost buildup and prevents moisture and leaks around the door
• Restores consistent internal temperature for better food preservation
• Reduces compressor run time caused by an improper door seal

• One refrigerator door gasket

• Recommended: replace gasket on a clean, dry door surface; remove old gasket and adhesive residue before installing
• Use the manufacturer's recommended attachment method (snap-in or adhesive) for your model
• Inspect hinge alignment and door fit before finalizing gasket installation to ensure an even seal
• For safety, unplug the appliance or disconnect power before beginning repairs

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
