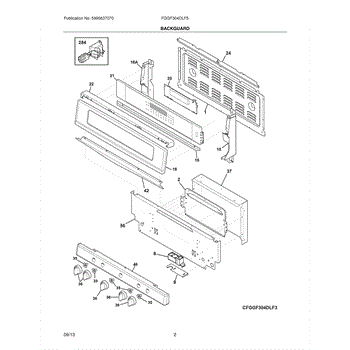

Parts for Frigidaire FGGF304DLF5: 03 - Backguard Parts

The Spark Module Kit is an OEM part for Frigidaire ranges. This kit includes the spark module and necessary components for installation, responsible for providing the electrical spark needed to ignite the gas burners on the stove.

Common causes of a bad spark module include electrical faults, wear and tear from regular use, or damage from power surges.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or inconsistent sparks
• Clicking sound without burner ignition
• Only some burners igniting

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This electronic control board is the refrigerator's main control module that manages cooling cycles and user commands, restoring normal operation when the original control fails. Replaces a failed control to help the appliance respond correctly to temperature and mode settings. What it does:

• Receives input from the user interface and sensors to control compressor, fans, and defrost cycles
• Regulates timed operations and temperature setpoints for consistent cooling
• Works with the appliance's sensor and relay systems to coordinate defrost and compressor run cycles

• 1 electronic control board (main control)

• Disconnect power before accessing the control to avoid shock or damage
• Handle the board by edges and avoid touching circuit components or connector pins
• Verify connector seating and mounting before restoring power; ensure correct board orientation

This electronic oven timer/clock control replaces a failed timer module to restore timed cook functions and display time. It provides a direct replacement for the oven's timing and clock interface so bake/clean cycles and timed settings work reliably. What it does:

• Controls oven timing and clock display so delayed start, timed bake, and auto-shutoff functions operate correctly
• Replaces a non-working or unresponsive timer/clock assembly
• Can resolve symptoms such as no clock display, countdowns not running, or oven timers failing to start/stop cycles
• Interfaces with the oven control circuits to send start/stop timing signals

• Disconnect power to the appliance before beginning any repair to avoid electrical shock
• Installation typically requires removing the control panel and disconnecting the old timer's wiring harness and mounting hardware
• Handle the display and lens carefully to avoid scratching; confirm electrical connections are secure before reapplying power

The Knob is an OEM part for Frigidaire ranges and ovens. It allows the user to control the settings of the appliance, such as temperature and cooking modes, by turning the corresponding control valves or switches.

Over time, knobs can break, crack, or become stripped due to frequent use, making it difficult to adjust the settings accurately.

Symptoms of a bad knob include:

• Difficulty in turning or adjusting the knob
• The knob spinning freely without changing settings
• The knob becoming loose or falling off
• Inaccurate temperature or mode settings

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

This transformer supplies the low-voltage power needed by an appliance's control system so the user interface and control board operate correctly. Replaces a worn or failed transformer to restore proper control voltage and reliable operation. What it does:

• Converts incoming line voltage to the lower control voltage used by the appliance's control board and display.
• Common symptom: control panel or display is dim, blank, or intermittently responsive.
• Common symptom: control functions (timers, cycles, lights) fail or reset unexpectedly.
• Helps stabilize control voltage to prevent erratic electronic behavior.

• One transformer

• Disconnect all power (unplug or shut off breaker) before accessing internal components.
• Observe proper wiring and polarity; match connections to the original transformer and secure terminal fasteners.
• Use appropriate mounting hardware and strain reliefs; avoid pinching or exposing wires.

This wiring harness is the OEM-style electrical connector assembly that routes power and signals between components for proper appliance operation. Replacing a damaged harness restores reliable electrical connections and function. What it does:

• Provides the bundled wires and connectors that link controls, motors and sensors
• Replaces frayed, burned or disconnected wiring that can cause intermittent operation or no power
• Restores secure, correct connections to help prevent arcing or short circuits
• Used when connectors are broken, pins are bent, or insulation is damaged

• Always disconnect power (unplug appliance or switch off breaker) before starting work
• Compare new harness to the old one and follow the appliance wiring diagram for routing and connections
• Use proper connector seating and secure harness with original clips or fasteners to avoid pinch points
• If you find melted connectors or significant damage, inspect associated components and replace as needed

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
