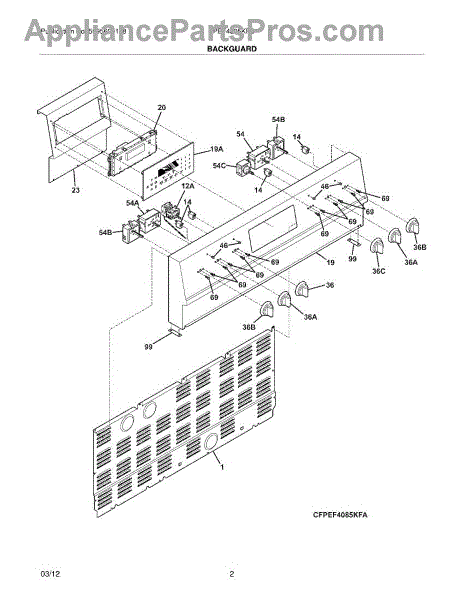

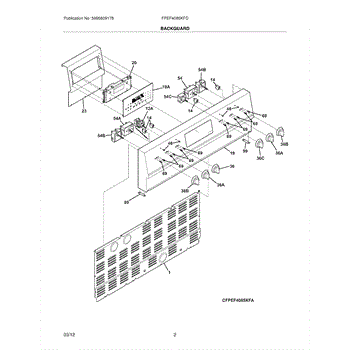

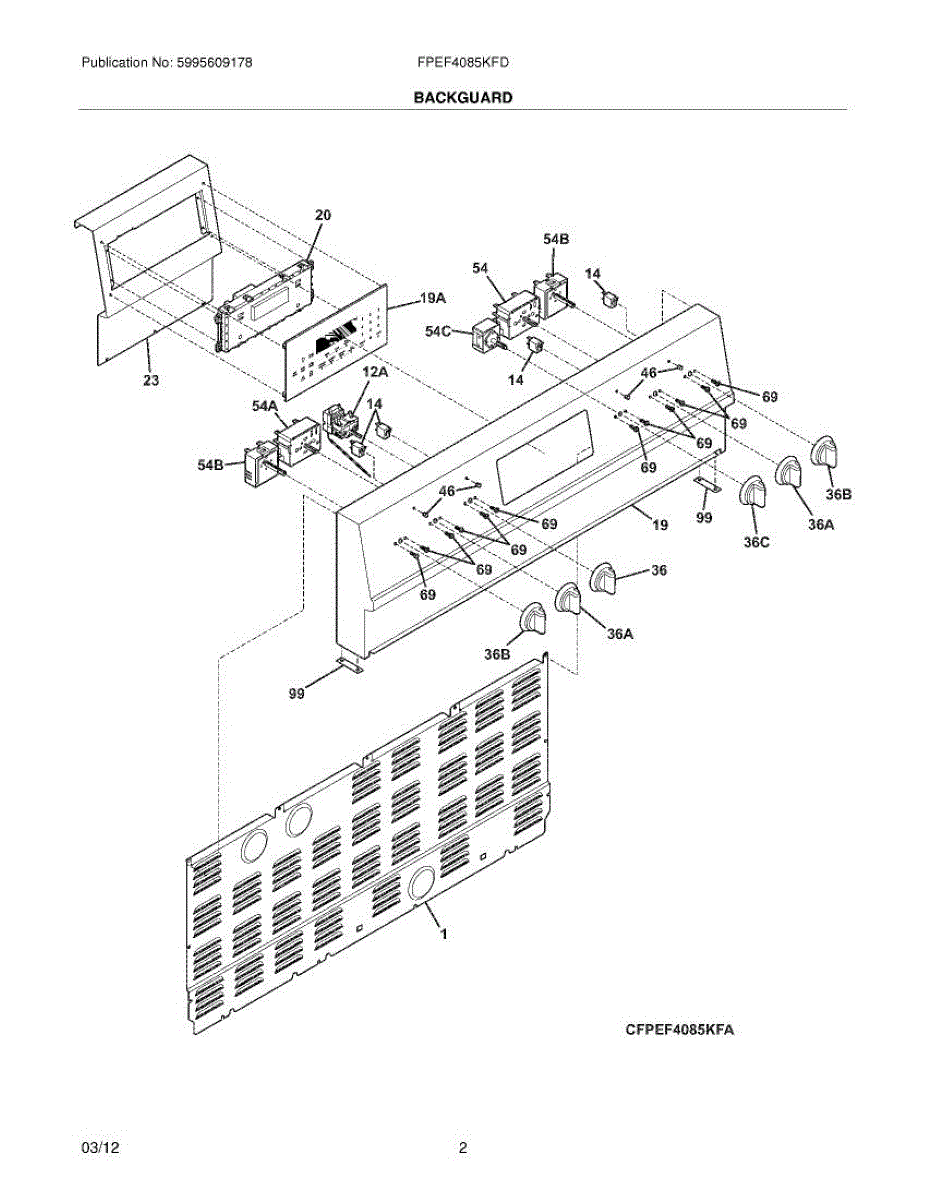

Parts for Frigidaire FPEF4085KFD: 03 - Backguard Parts

This oven thermostat senses and regulates oven temperature so food cooks evenly and the range reaches set temperatures. It replaces a failed temperature control to restore accurate heating and cycle behavior. What it does:

• Closes and opens the control circuit to maintain the oven at the selected temperature
• Can correct symptoms such as oven not reaching set temperature, overheating, or excessive cycling
• Works with the oven's control system and heating elements to stabilize bake and broil operations
• Mechanical design — avoid bending or damaging the sensing element/capillary

• One oven thermostat

• Disconnect power to the appliance before starting any service
• Handle the thermostat and sensing element carefully; do not kink or sharply bend the capillary
• Verify proper thermostat mounting and oven cavity seals for accurate temperature control

This electronic oven control board manages your range's heating and display functions. Replacing a failed control restores accurate temperature regulation, bake/broil operation, and a working clock/timer so the oven heats and responds as it should. What it does:

• Directs power to the bake and broil elements through internal relays
• Monitors the oven temperature sensor and regulates heat to maintain the set temperature
• Provides the clock/timer and status display; interfaces with the keypad
• Typical symptoms: won't heat or stops heating mid-cycle, inconsistent temperatures, blank/unresponsive display, error codes or beeping

• 1 electronic control board

• Disconnect power at the breaker before servicing; this is a line-voltage component
• Use ESD precautions; handle the board by the edges and avoid touching contacts
• Note/photograph wire locations; move connectors one at a time and fully seat any ribbon cable
• Transfer any mounting brackets and the faceplate/overlay from the original control if your model uses them

This replacement switch restores reliable on/off control for a specific function in your appliance, helping the selected feature respond consistently. A worn or failed switch can cause the feature to be unresponsive, intermittent, or stuck on.

• Opens and closes an electrical circuit to start/stop a function
• Common symptoms include no response, intermittent operation, or a feature that won't turn off
• Can be checked with a multimeter for continuity when actuated

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the control area to reach the switch; note/photograph wire positions
• Move wires to the new switch one at a time and secure connections
• Reassemble panels, restore power, and test operation

This replacement switch restores reliable on/off control of a specific function in your cooking appliance. When the original switch wears out, components may fail to power on, stay on, or work only intermittently. What it does:

• Opens and closes an electrical circuit to control a targeted component
• Used in select models to switch features such as a light, fan, or heating element
• Symptoms of a failed switch include no response, intermittent operation, or a component that won't turn off
• Visible heat damage, arcing, or loose terminals at the switch may also indicate failure

• 1 switch

• Disconnect power at the breaker or unplug the appliance before servicing; verify no voltage is present
• Note wire locations or take a photo; transfer wires to the new switch one at a time
• Reuse existing mounting hardware or brackets as applicable
• Restore power and test the controlled function before final reassembly

NOTE: Must order (2) new mounting screws, part# 5303288565 (5303323134) when ordering this switch due to a change.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This wiring harness assembly routes power and signals between the appliance's controls and components, restoring reliable electrical connections for proper operation. It replaces damaged or worn wiring to help eliminate intermittent faults. What it does:

• Carries electrical power and control signals between the control board, motors, heaters, valves, and sensors
• Replaces frayed, burned, or broken wiring that can cause intermittent operation or component failure
• Restores secure connector connections to reduce arcing and poor contact symptoms
• Helps return the appliance to normal electrical routing when original harness is damaged

• Disconnect all power (unplug appliance or switch off breaker) before starting work
• Handle connectors carefully; match connector shapes and routing to OEM locations during install
• Avoid splicing or taping unless a serviceable repair is explicitly specified by OEM documentation
• If harness shows heat damage or melted connectors, replace the full assembly rather than attempting partial repairs

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
