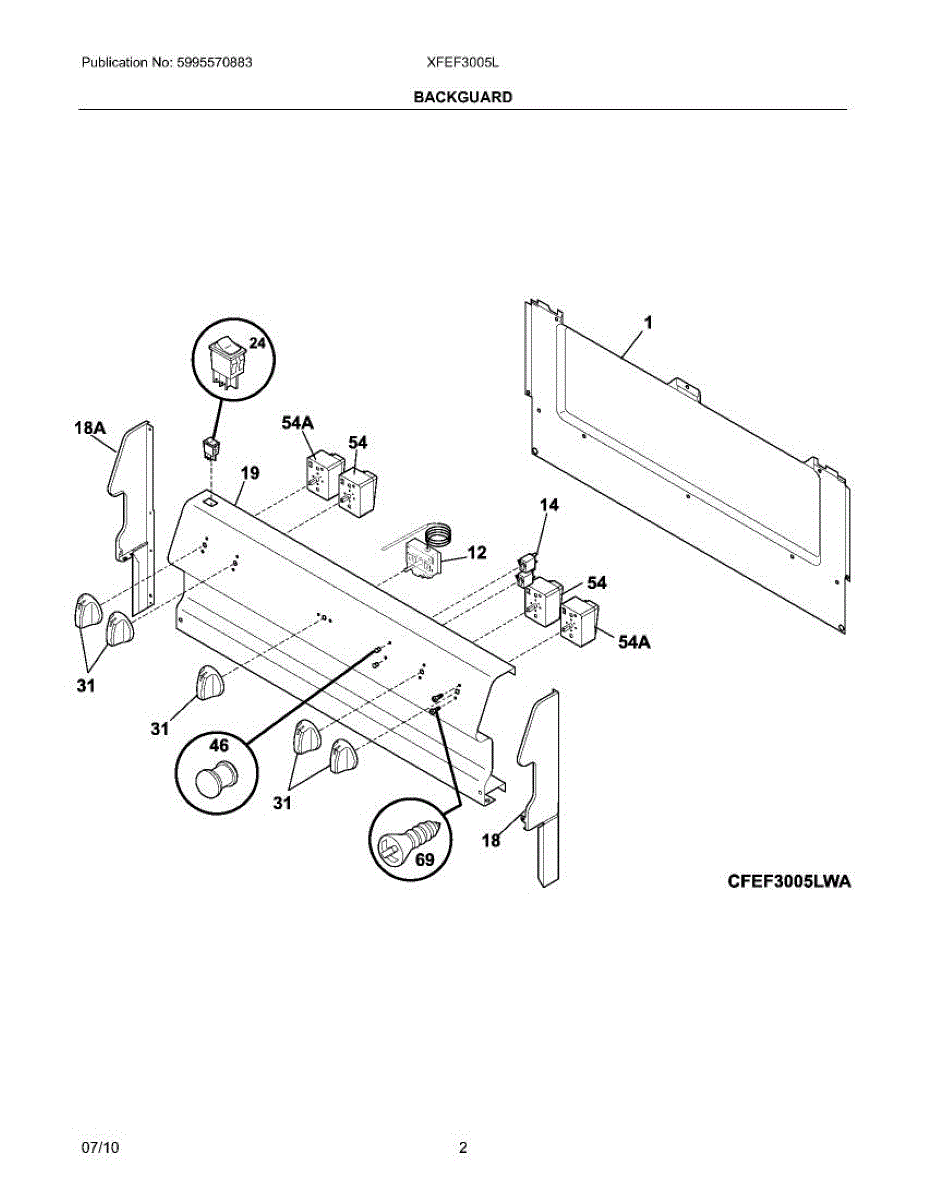

Parts for Frigidaire XFEF3005LQA: 03 - Backguard Parts

Oven burns food or won't reach set temperature? The oven thermostat regulates heat by cycling elements on and off. DIY repair takes about 15 minutes.

Range indicator light illuminates to show when burners or oven are on. Replace if light is dim, flickering, or burned out. Verify fit with your model.

This rocker switch is the on/off control used in the appliance's control panel. It opens and closes the circuit to a selected feature, restoring dependable operation when the original switch becomes worn, stuck, or fails.

• Controls a single on/off circuit from the control panel
• Restores proper switching for the associated feature
• Common symptoms: feature won't turn on or off, light or function flickers or stays on, switch feels loose or sticks
• Replaces a cracked, burned, or unresponsive rocker

• Disconnect power at the breaker before servicing
• Access the switch from the control panel or mounting area; note/photograph wire positions
• Move wires to the new switch one at a time and seat the switch securely in the panel opening
• Restore power and test operation before reassembly

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

Burner stuck on high or won't heat? This surface element switch controls temperature for electric range burners. DIY repair in under 30 minutes.

Burner won't turn off or stuck on high? This surface element switch controls heat settings for large burners. Moderate DIY with panel removal.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
