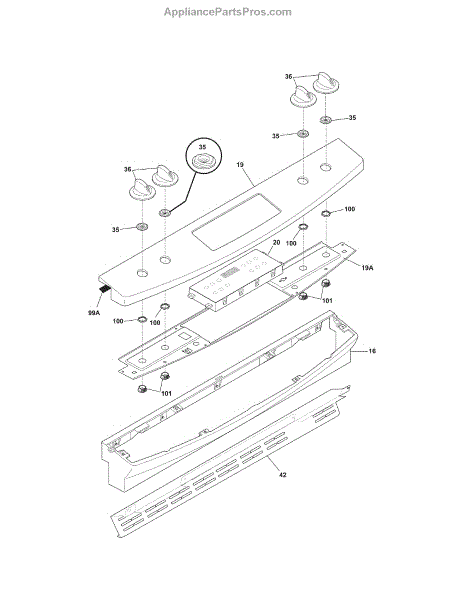

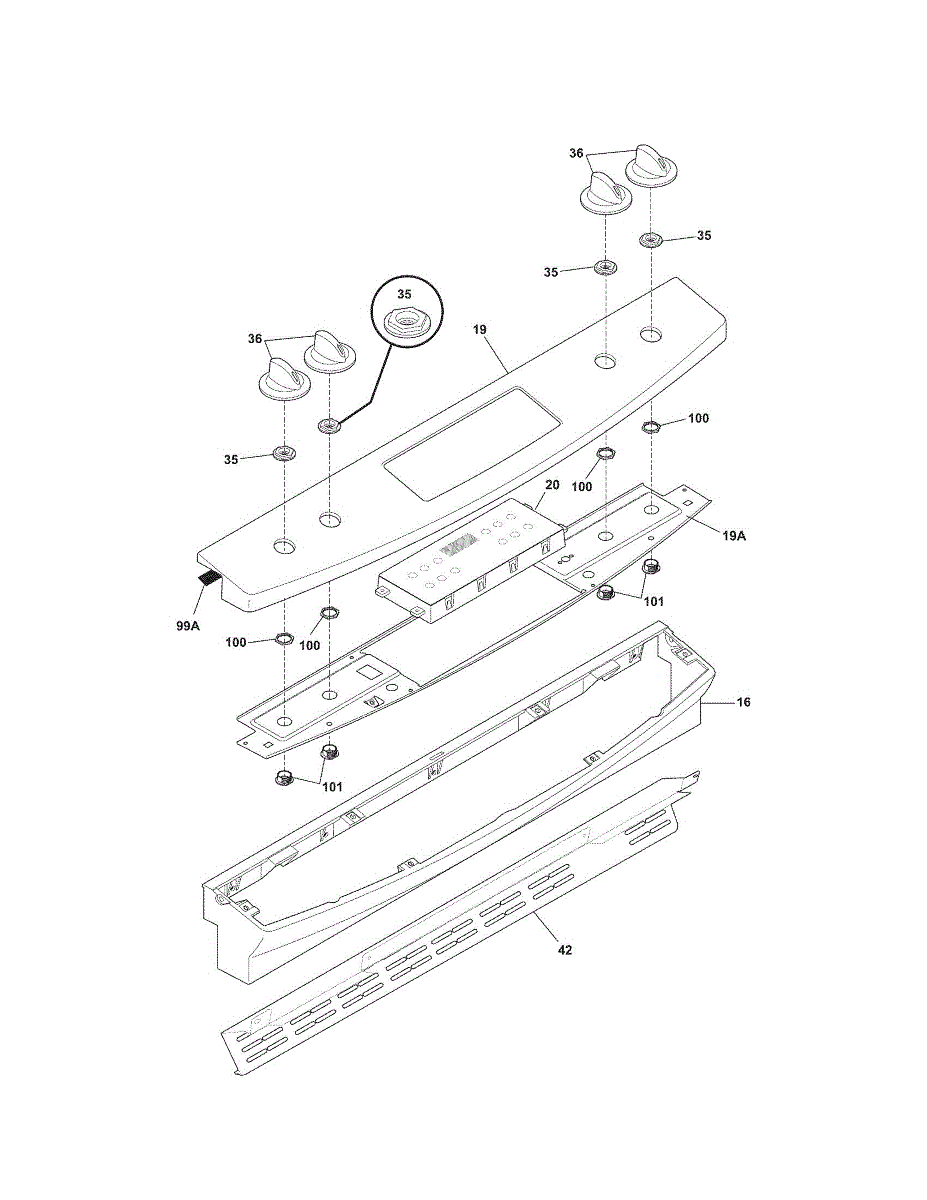

Parts for Kenmore 790.36739702 (79036739702, 790 36739702): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Fix unresponsive buttons or a blank display with this range control panel assembly. Restores full oven control and clear status readouts. Direct-fit part.

Replace your range clock timer if the oven won't start, display is blank, or buttons don't respond. Moderate difficulty repair restores control functions.

Fix a blank or unlit oven display with this range digital control board. Controls clock, timers, and timed baking cycles. Easy DIY repair in under an hour.

Small mounting clip that secures interior range components in place. Replace if cracked, broken, or missing to prevent parts from shifting or rattling.

Replace your cracked or missing range control knob. This dial attaches to the control panel to adjust burner settings. Essential for restoring full control.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Replace your range door gasket to restore proper oven sealing and heat retention. Prevents heat loss and improves cooking efficiency. Verify fit with your model.

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

Hex nut for gas range assembly. Secures components throughout your range. Replace if stripped, corroded, or missing during repairs or maintenance.

Replacement use and care guide manual for your range. Provides operating instructions, maintenance tips, and safety information. Ideal replacement for lost, damaged, or illegible manuals.

This repair parts list is the OEM literature sheet that identifies parts and part numbers for service and ordering. Use it to purchase replacements. What it does:

• Lists part names and OEM part numbers for the appliance
• Shows diagram callouts or item references to help identify correct replacements
• Helps owners which parts are needed for a repair
• Reduces ordering errors by matching symptom to the listed component

• This is a reference document, not a physical replacement part for the appliance
• Keep the sheet dry and store with your appliance records for service use
• Use the appliance model number when matching items from this list
• For repairs, follow OEM service instructions and disconnect power before servicing

Specs: 8 - 18 x 0.500

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Graphic label overlay for your electric range control panel. Replaces worn, peeling, or cracked original to restore clear button legends and a clean finish.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The Overlay is an OEM part for Frigidaire ranges. It is the control panel's interface layer, displaying the various functions and settings available for the range. This component is crucial for selecting and controlling the appliance's operations, ensuring user-friendly interaction with the cooking settings.

Common causes of a bad overlay include regular wear and tear, exposure to heat, or accidental damage.

Symptoms of a bad overlay include:

• Faded or illegible markings on the control panel
• Difficulty in selecting or changing settings
• Non-responsive or sticking buttons
• The overlay peeling or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
