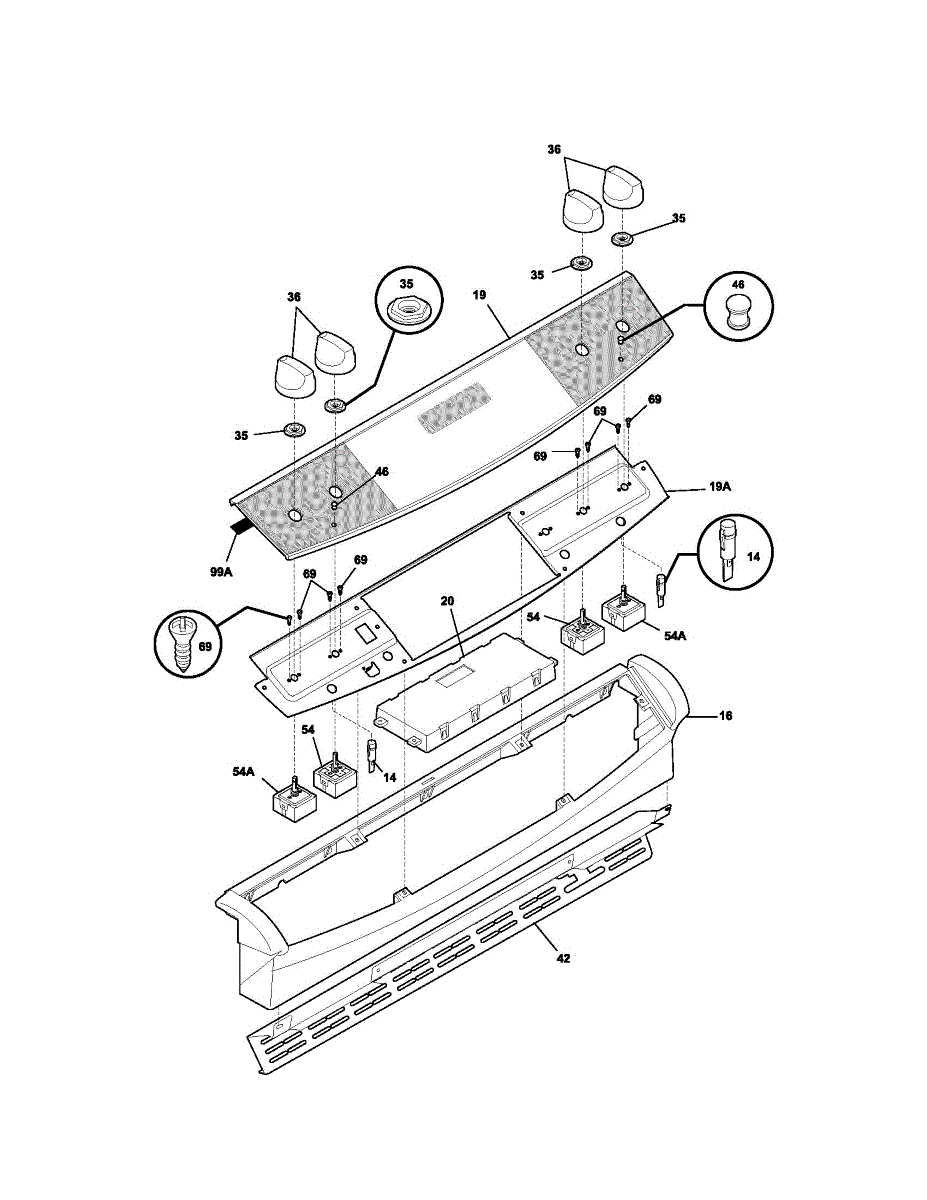

Parts for Kenmore 790.46373402 (79046373402, 790 46373402): Backguard Parts

This small indicator light mounts on the range's control panel or front fascia and illuminates to signal when a burner or oven element is active or the oven has reached the set temperature. It typically consists of a lens, socket, and bulb in a compact assembly. Replace this indicator light if it no longer illuminates even after changing the bulb, or if the lens is cracked or discolored.

The range oven control board manages baking temperatures, cooking modes, timers, and self-cleaning functions for the oven cavity. Replace it when the oven doesn't heat, temperature readings are inaccurate, or control functions become unresponsive.

The translucent cover that protects and diffuses light from indicator bulbs on your range's control panel. Replace when the lens is cracked, yellowed, or missing, making it difficult to see indicator lights clearly.

If your dual burner stays on low and won't turn off, or the small element doesn't heat, this infinite switch may need replacing. DIY-friendly repair.

Burner won't turn off or heat properly? This range burner switch controls power flow to surface elements. Moderate DIY repair, 30-45 minutes.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a flexible gasket that seals around the control panel area of the range, preventing heat and moisture from reaching internal components behind the panel. It is typically gray in color and fits along the edges of the panel. Replace this gasket if it is cracked, hardened, or missing, which can allow heat to damage control board wiring or cause discoloration around the panel.

This wiring label is an adhesive electrical diagram that identifies wire connections, harness locations and key electrical ratings to help owners verify wiring during service. It replaces a damaged or missing factory wiring diagram. What it does:

• Shows wire colors, connector positions and basic circuit routing to aid troubleshooting
• Identifies terminal labels and component locations for correct reconnection
• Lists safety/reliability information such as voltage and fuse/breaker ratings when present on the original
• Helps prevent wiring mistakes that can cause faults or failures

• One adhesive wiring label

• Disconnect power to the appliance before servicing or applying the label
• Clean and dry the mounting surface; remove any old adhesive residue for best adhesion
• Align to the original label location and press firmly; allow adhesive to set before reassembling
• If the original wiring has been modified, verify connections against service documentation

Specs: 8 - 18 x 0.500
