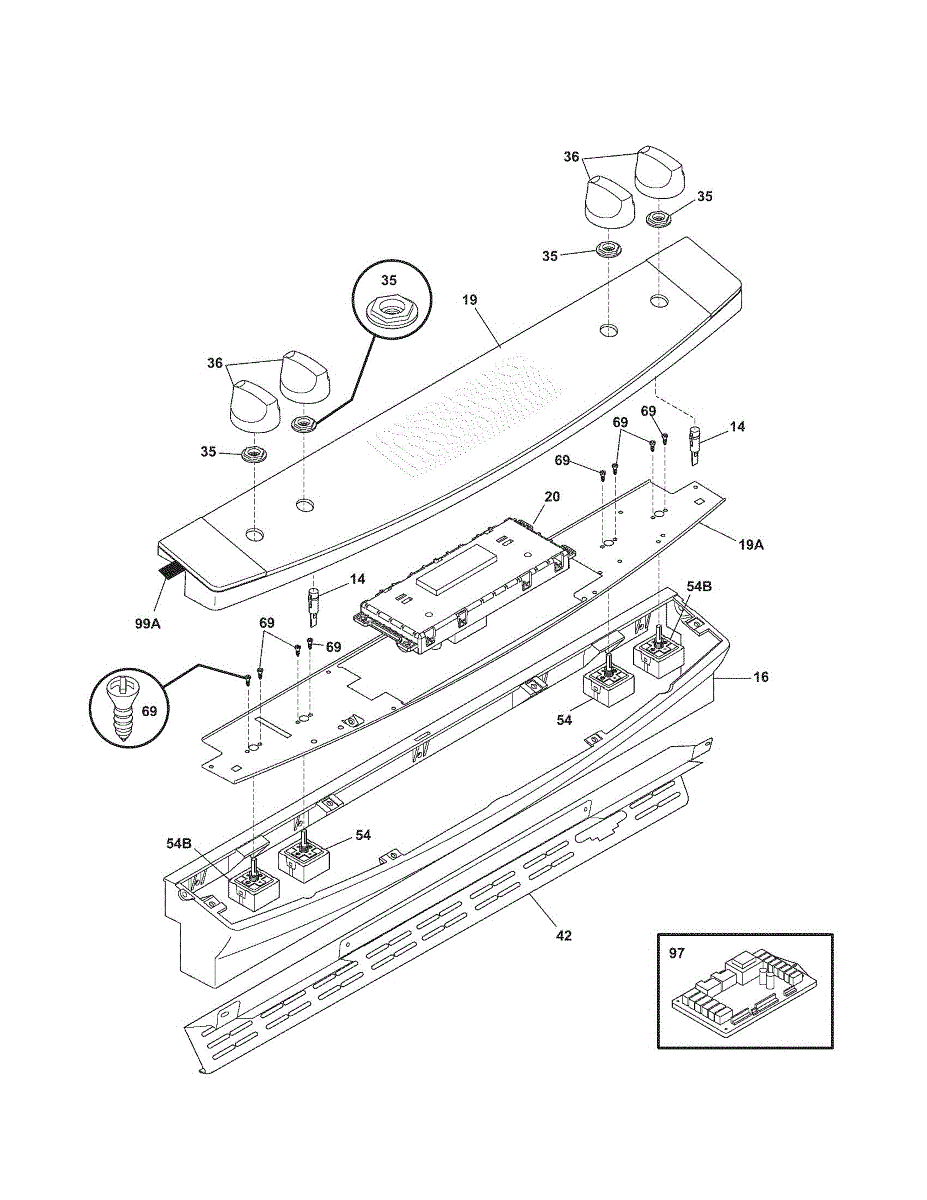

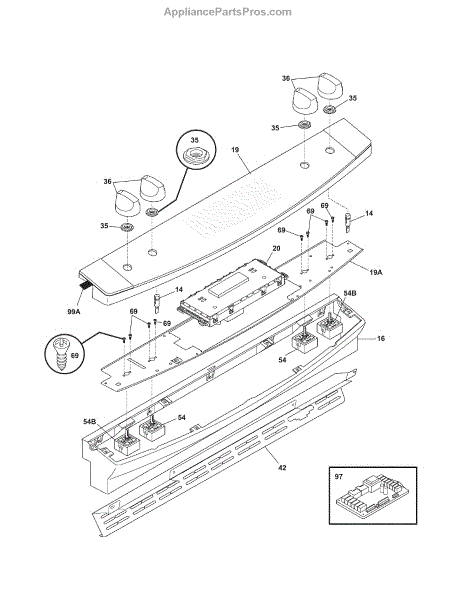

Parts for Kenmore 790.46702603 (79046702603, 790 46702603): Backguard Parts

Replace your range's cracked or worn touch pad control panel. This cosmetic part installs on the front console to restore the appearance and function.

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Support component for range control knobs. Installs behind the control panel to secure knobs in place. Replace if cracked, broken, or missing hardware.

If your dual burner stays on low and won't turn off, or the small element doesn't heat, this infinite switch may need replacing. DIY-friendly repair.

Burner won't turn off or heat properly? This range burner switch controls power flow to surface elements. Moderate DIY repair, 30-45 minutes.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

This repair parts list is a service reference that shows exploded diagrams and part numbers to help you identify replacement parts and speed accurate ordering. Ideal for technicians and handy homeowners diagnosing problems. What it does:

• Displays exploded views and part numbers for the appliance's components
• Helps identify which part may need replacing when you see symptoms like leaks, unusual noises, poor cooling or failure to operate
• Provides correct OEM part names and numbering to reduce ordering errors
• Clarifies assembly locations so you can find the affected component on the appliance

• This document is for identification and ordering only; it is not a replacement part or repair procedure
• Always disconnect power and water before servicing the appliance
• Use the parts list together with the service manual or OEM instructions for safe, correct repairs

Wire harness for ranges. Connects electrical components inside your appliance. Replace if wires are frayed, damaged, or connections are loose or burnt.

Technical service data sheet for your range. Provides wiring diagrams, troubleshooting guides, and repair specifications. Replace lost or damaged sheets.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
