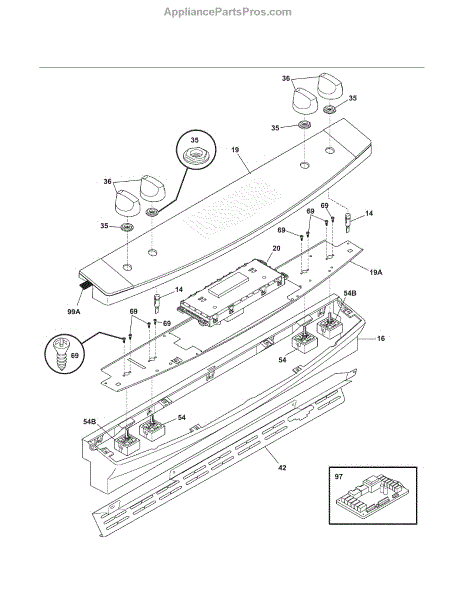

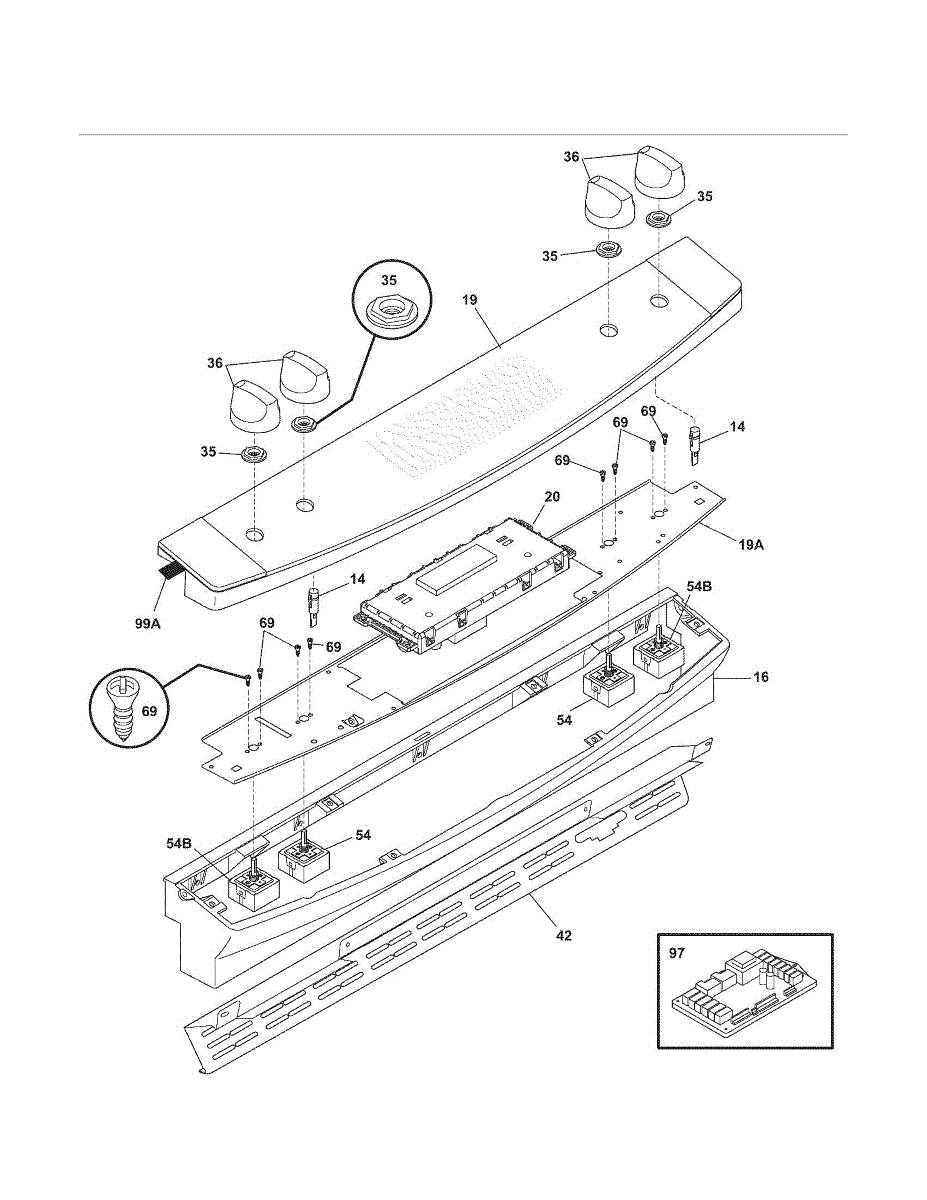

Parts for Kenmore 790.46703601 (79046703601, 790 46703601): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

The oven control board manages all oven functions including temperature regulation, timer operations, and display functions. Located behind the front control panel, this component requires replacement when the oven won't heat, temperature readings are inaccurate, or the display shows error codes or remains blank.

Support component for range control knobs. Installs behind the control panel to secure knobs in place. Replace if cracked, broken, or missing hardware.

If your dual burner stays on low and won't turn off, or the small element doesn't heat, this infinite switch may need replacing. DIY-friendly repair.

Burner won't turn off or heat properly? This range burner switch controls power flow to surface elements. Moderate DIY repair, 30-45 minutes.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

This repair parts list is the official parts diagram and itemized list that helps identify replacement components and their locations. Use it to order the correct items for service or repair. What it does:

• Shows exploded diagrams and part locations to pinpoint the exact component you need
• Lists OEM part numbers and descriptions for accurate ordering
• Helps troubleshoot which part is causing a symptom or failure
• Useful for technicians and DIYers when planning a repair

• This is a documentation item used for parts identification, not a physical replacement part
• Refer to the parts list during diagnosis and ordering to avoid purchasing incorrect components
• Keep the parts list with service records for future reference

Wire harness for ranges. Connects electrical components inside your appliance. Replace if wires are frayed, damaged, or connections are loose or burnt.

Replace a damaged or frayed wire harness in your range. This internal wiring component connects electrical systems. Order now if yours is broken or worn.

Technical service data sheet for your range. Provides wiring diagrams, troubleshooting guides, and repair specifications. Replace lost or damaged sheets.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
