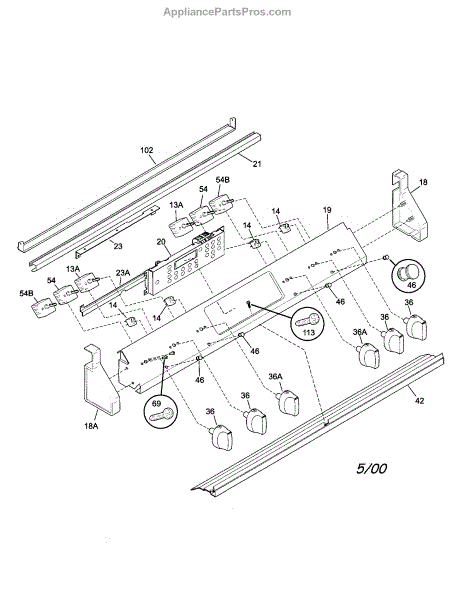

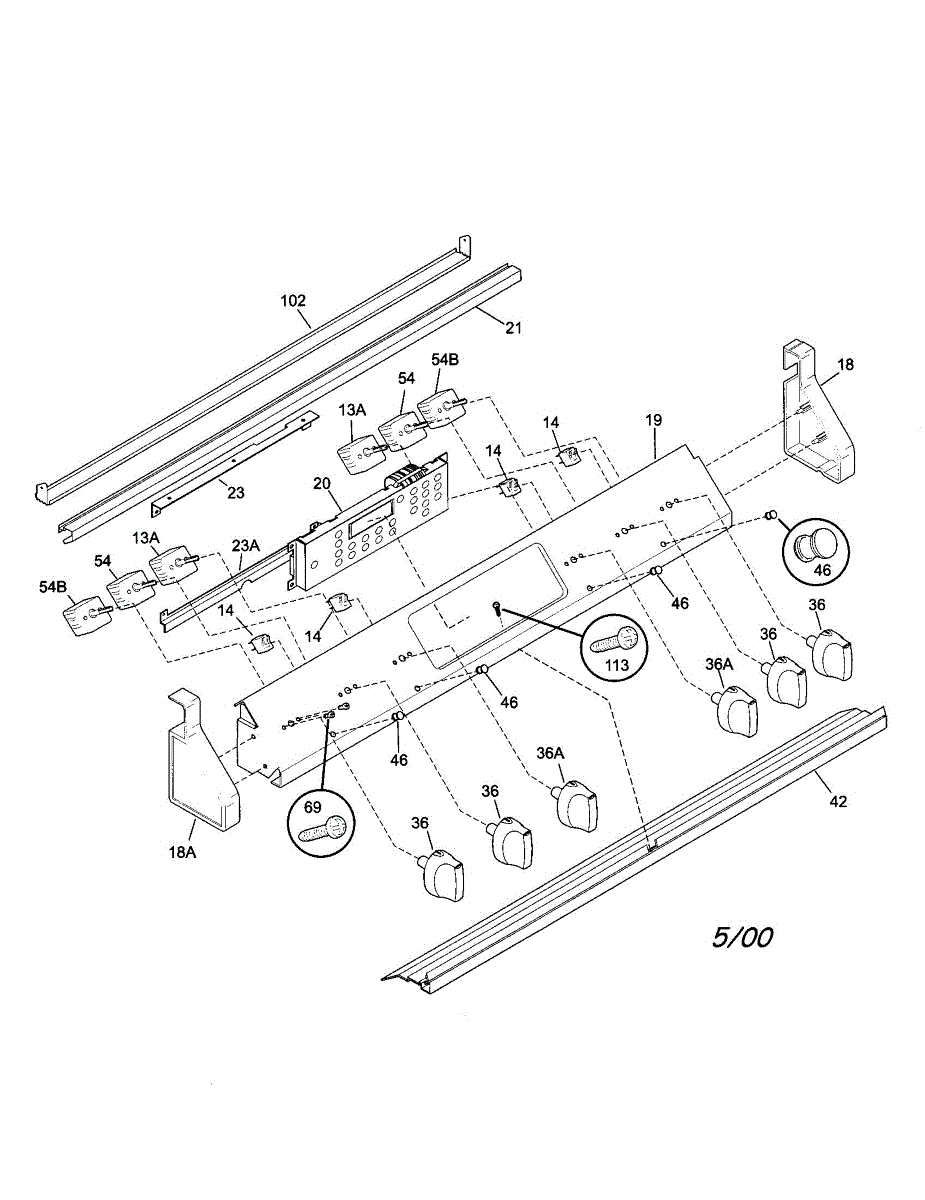

Parts for Kenmore 790.46803990 (79046803990, 790 46803990): Backguard Parts

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Color: Bisque. Includes overlay.

This control bracket secures the oven/stove control console to the range frame, keeping the control panel stable for reliable button and switch operation. Replaces a bent or broken mounting bracket to restore proper panel alignment. What it does:

• Mounts and supports the control console to prevent wobble or sagging
• Keeps control switches and buttons aligned for consistent operation
• Helps stop vibration noise and rubbing between the console and cabinet
• Commonly replaced when the console is loose, crooked, or when controls shift

• Disconnect power to the appliance before beginning any work
• Typical installation requires removing the console and using basic hand tools
• Handle the control panel and wiring with care to avoid damage

This control bracket secures the oven/stove control console to the range frame, keeping the control panel stable for reliable button and switch operation. Replaces a bent or broken mounting bracket to restore proper panel alignment. What it does:

• Mounts and supports the control console to prevent wobble or sagging
• Keeps control switches and buttons aligned for consistent operation
• Helps stop vibration noise and rubbing between the console and cabinet
• Commonly replaced when the console is loose, crooked, or when controls shift

• Disconnect power to the appliance before beginning any work
• Typical installation requires removing the console and using basic hand tools
• Handle the control panel and wiring with care to avoid damage

Decorative trim piece for range backguard. Replaces cracked, chipped, or missing backguard trim. Attaches to rear edge of cooktop for finished look.

Dual.

The Surface Unit Switch Kit is an OEM part for Frigidaire ranges. It controls the power and heat levels to the surface burners on the cooktop, allowing you to adjust the temperature for cooking. This kit typically includes the necessary components to replace a faulty switch and restore proper functionality to the burners.

Causes of a bad surface unit switch can include electrical malfunctions, wear and tear from regular use, or damage due to spills or impacts. A faulty switch can prevent the burner from heating correctly or at all.

Symptoms of a bad surface unit switch include:

• Burners not heating up or heating unevenly
• Inability to adjust the burner temperature
• Burners not turning on or off properly
• Sparks or electrical odors near the switch

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500
