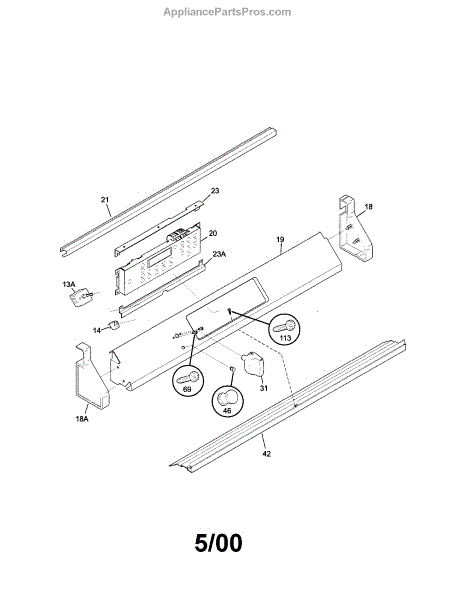

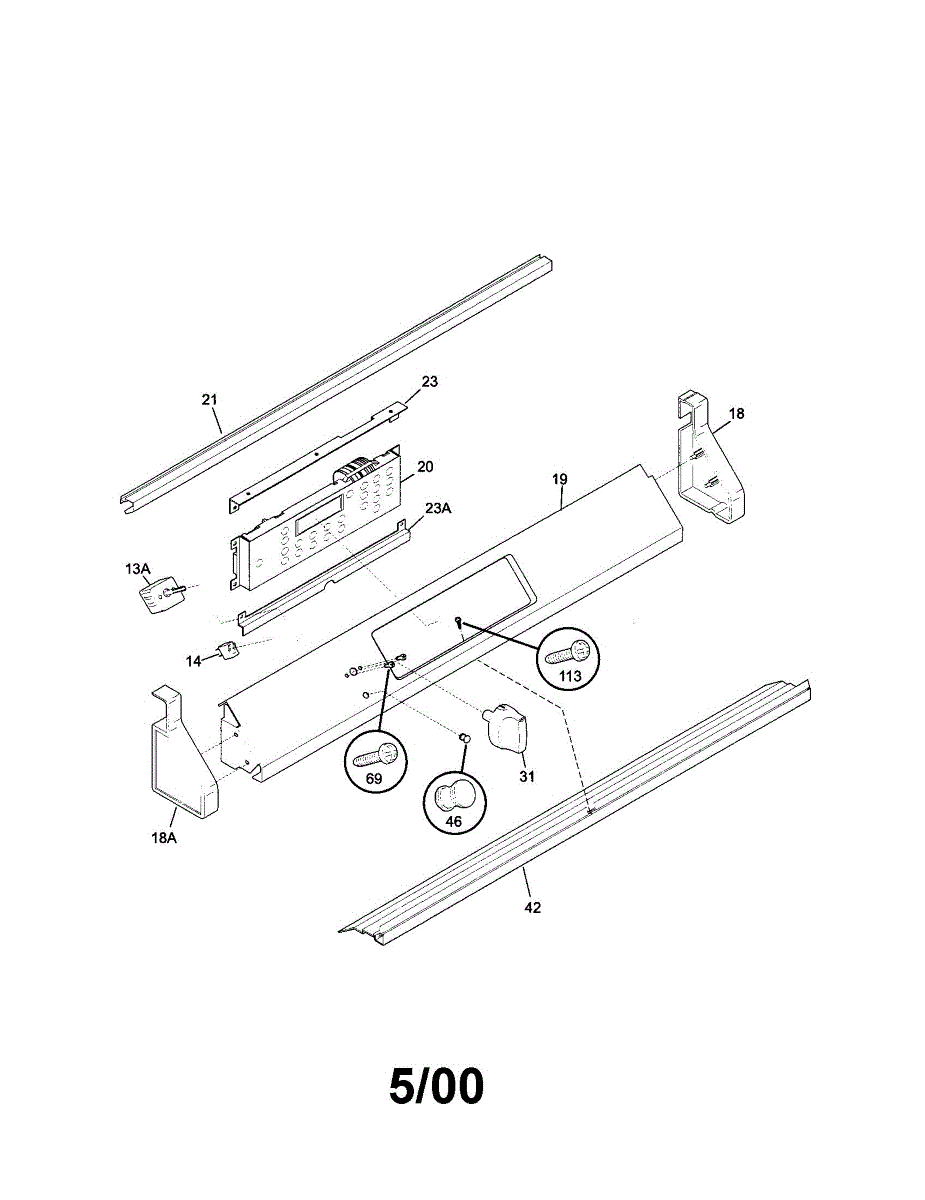

Parts for Kenmore 790.46813991 (79046813991, 790 46813991): Backguard Parts

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Color: Bisque. Includes overlay.

This control bracket secures the oven/stove control console to the range frame, keeping the control panel stable for reliable button and switch operation. Replaces a bent or broken mounting bracket to restore proper panel alignment. What it does:

• Mounts and supports the control console to prevent wobble or sagging
• Keeps control switches and buttons aligned for consistent operation
• Helps stop vibration noise and rubbing between the console and cabinet
• Commonly replaced when the console is loose, crooked, or when controls shift

• Disconnect power to the appliance before beginning any work
• Typical installation requires removing the console and using basic hand tools
• Handle the control panel and wiring with care to avoid damage

This control bracket secures the oven/stove control console to the range frame, keeping the control panel stable for reliable button and switch operation. Replaces a bent or broken mounting bracket to restore proper panel alignment. What it does:

• Mounts and supports the control console to prevent wobble or sagging
• Keeps control switches and buttons aligned for consistent operation
• Helps stop vibration noise and rubbing between the console and cabinet
• Commonly replaced when the console is loose, crooked, or when controls shift

• Disconnect power to the appliance before beginning any work
• Typical installation requires removing the console and using basic hand tools
• Handle the control panel and wiring with care to avoid damage

Decorative trim piece for range backguard. Replaces cracked, chipped, or missing backguard trim. Attaches to rear edge of cooktop for finished look.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500
