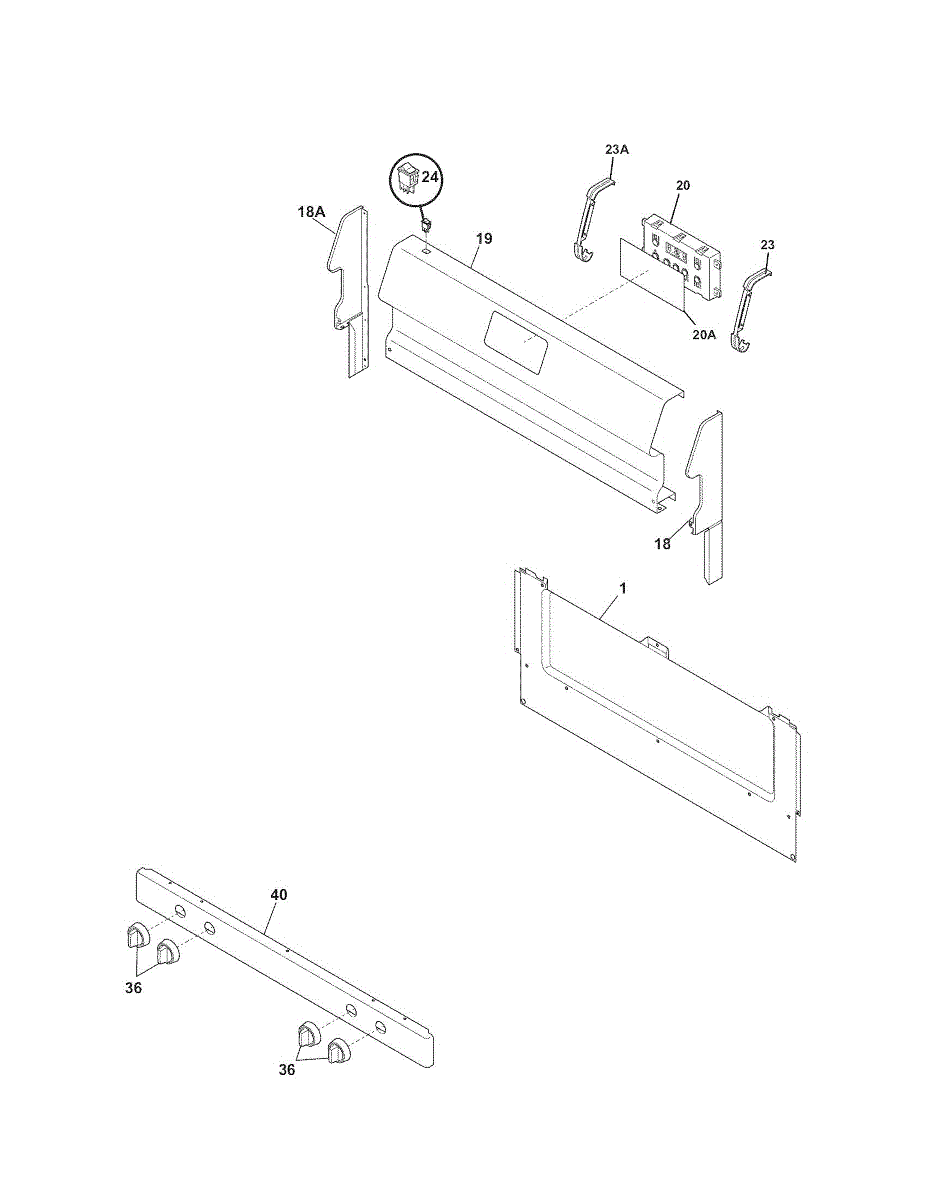

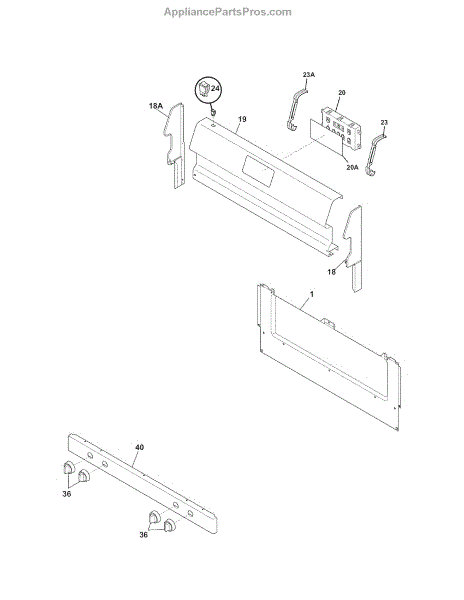

Parts for Kenmore 790.70301705 (79070301705, 790 70301705): Backguard Parts

Color: Black

Color: Black

This is the electronic oven control board that manages cooking functions including temperature regulation, bake and broil cycles, and clock/timer operations. It mounts behind the control panel at the back of the range. Replace this board if the oven fails to heat, displays error codes, has an unresponsive control panel, or runs at incorrect temperatures.

Protective cover for your range control panel with button markings. Replace if cracked, faded, or mounting tabs are broken. Installs over the clock assembly.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This repair parts list is a printed diagram and parts-index used to identify components and part numbers for service and ordering. It helps technicians and DIYers confirm correct replacement parts and speed repairs. What it does:

• Shows exploded diagrams and reference part numbers to identify specific components
• Helps confirm the correct replacement part before ordering to avoid returns
• Useful when diagnosing broken, missing, or worn parts
• Clarifies assembly locations and part relationships for service tasks

• This is a reference document only, not a physical replacement appliance part
• Keep with the appliance's service records or parts order information
• Handle and store the sheet flat to keep diagrams legible

Factory diagnostic guide for gas ranges showing wiring diagrams, error codes, and troubleshooting steps. Replace if missing, damaged, or illegible.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
