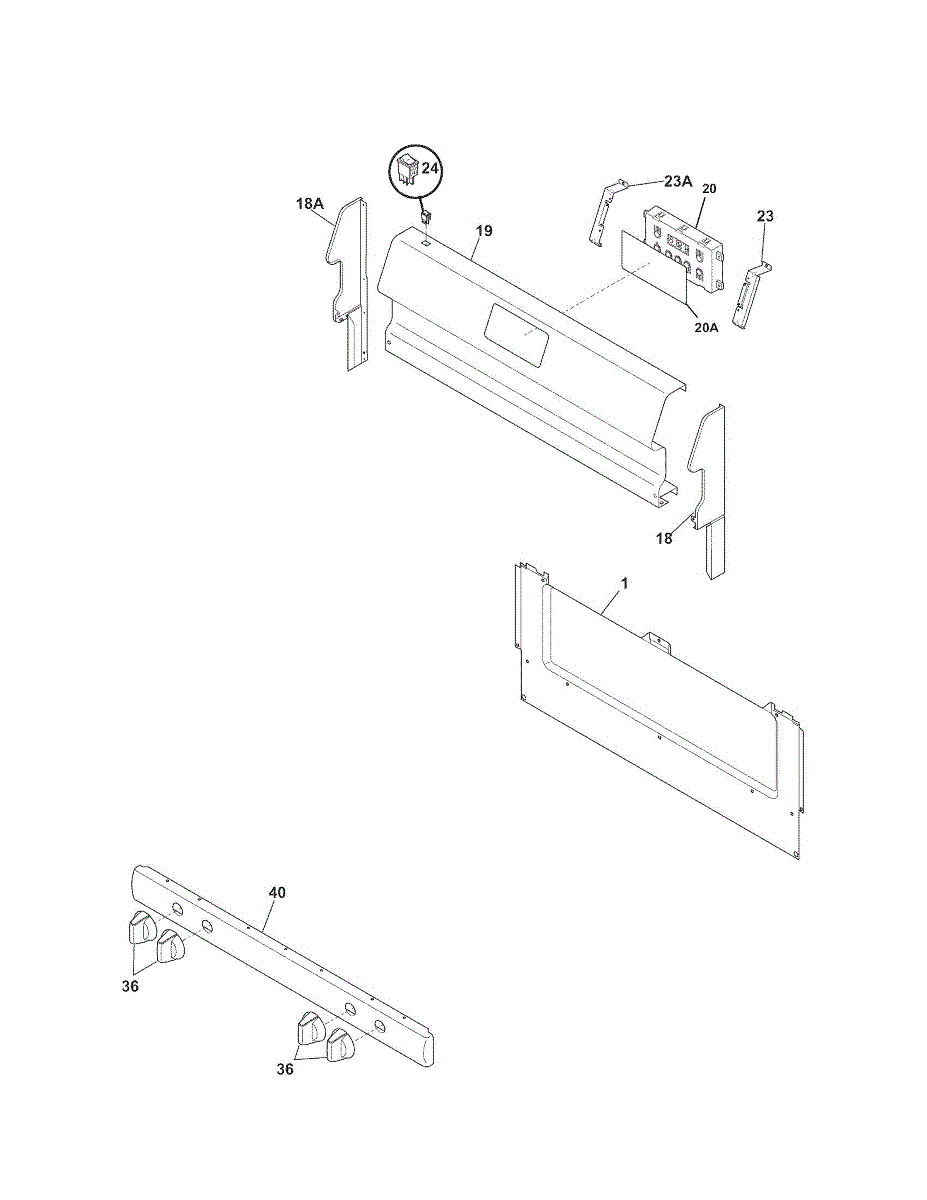

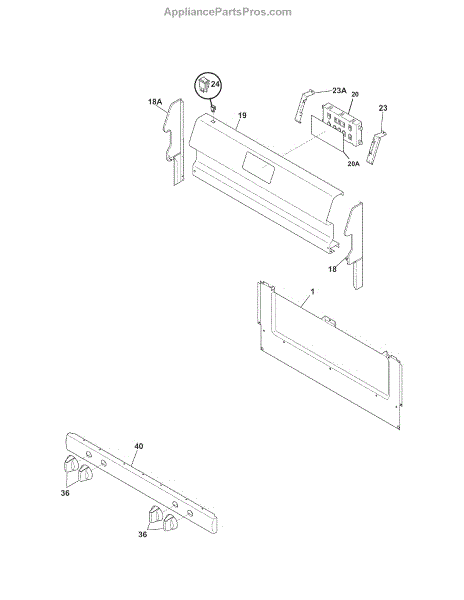

Parts for Kenmore 790.70403012 (79070403012, 790 70403012): Backguard Parts

Color: Black

Color: Black

Adhesive graphic overlay that labels buttons on your range control panel. Replace when worn, peeling, faded, or unreadable to restore clear keypad labels.

The Clock/Timer is an OEM replacement part for Frigidaire ranges. It allows for precise time and temperature settings to be entered and displayed for oven functions.

As a digital module, causes for failure may include corrupted firmware over time or water/debris intrusion damaging circuits. Backlight failure is common after extended hours of usage.

Symptoms consist of:

• Inaccurate time displaying/keeping
• Timer functions like pre-heating not engaging
• Corrupted or non-responsive touch controls
• Faint or no display illumination

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replace the touch pad panel on your gas range. This control interface covers the electronic buttons and display. Order a new one if cracked or worn.

This printed repair parts list identifies the appliance's service parts and diagrams to help you find the correct replacement components. Keep it for reference when ordering parts or planning a repair. What it does:

• Shows part names and item locations to match components to replacement numbers
• Provides the exploded-diagram style layout to identify parts
• Helps which part to order when a component is broken or missing
• Useful reference for troubleshooting and communicating needed parts

• This is a reference sheet only; it is not a replacement repair manual or installation guide
• Keep the sheet with appliance documentation for service reference
• Always disconnect power and follow all safety guidelines before servicing the appliance

Factory diagnostic guide for gas ranges showing wiring diagrams, error codes, and troubleshooting steps. Replace if missing, damaged, or illegible.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
